Type V Casing Swab Cups — Casing/Mandrel Configuration

Specifications & Product Information

Royal Way manufactures custom Type V profile swab cups for casing swab and fluid-recovery assemblies. Each cup is configured to the casing internal diameter, mandrel interface and operating information supplied with your enquiry.

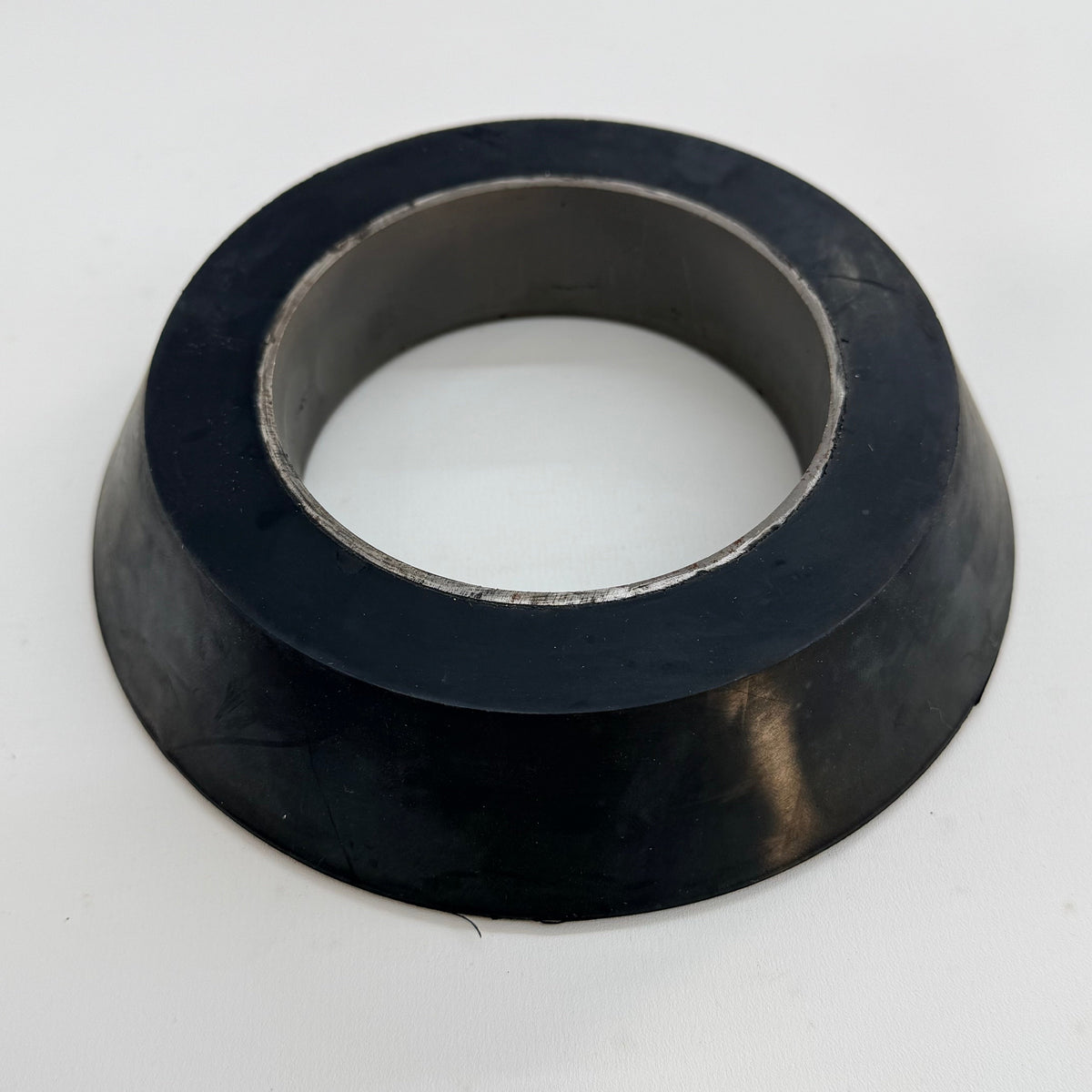

Representative image: The displayed V-type profiles are company-owned examples for orientation only. They do not establish exact casing size, dimensions, construction, fit or service rating; the final configuration is confirmed from the buyer's drawing or sample.

Configured for casing-size assemblies

• V-ring cup profile developed from a controlled drawing or sample
• Cup outside diameter, bore, lip geometry and installed orientation confirmed from part data
• Single-cup or customer-specified stacked arrangements
• Core, sleeve, insert or all-elastomer construction reviewed to the supplied assembly

Information required for quotation

Please provide the casing size, weight and minimum internal diameter, cup dimensions, mandrel or core dimensions, cup count and orientation, fluid, solids information, temperature range, expected load, quantity and any drawing or sample.

Type V identifies a profile family only and does not establish dimensions, construction, fit or service rating. Equipment references are used only to identify the requested configuration; Royal Way is not affiliated with the original equipment manufacturer.

Request a quote with drawings, CAD files or sample details.
