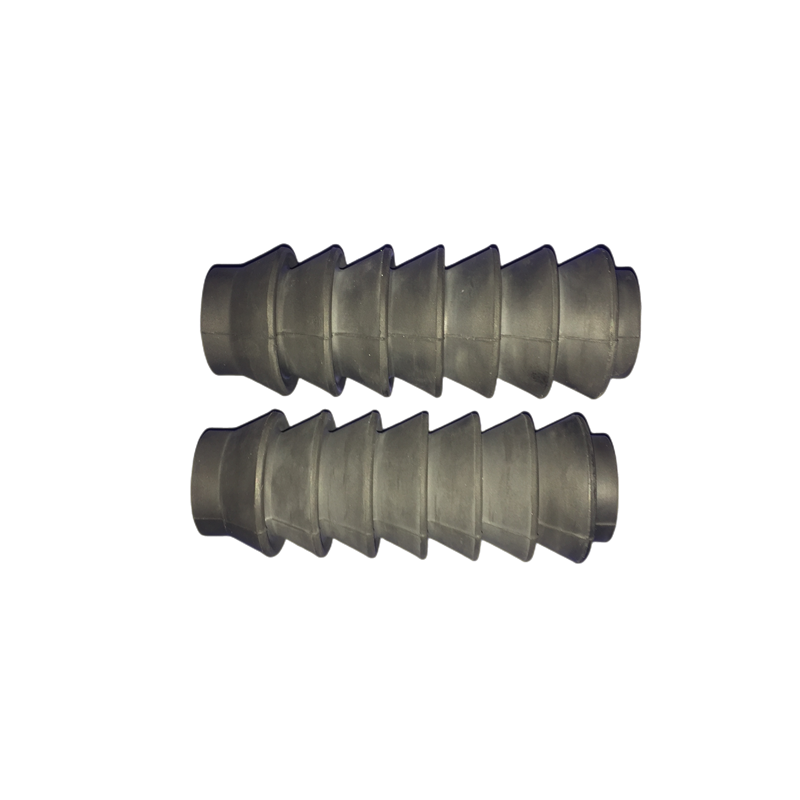

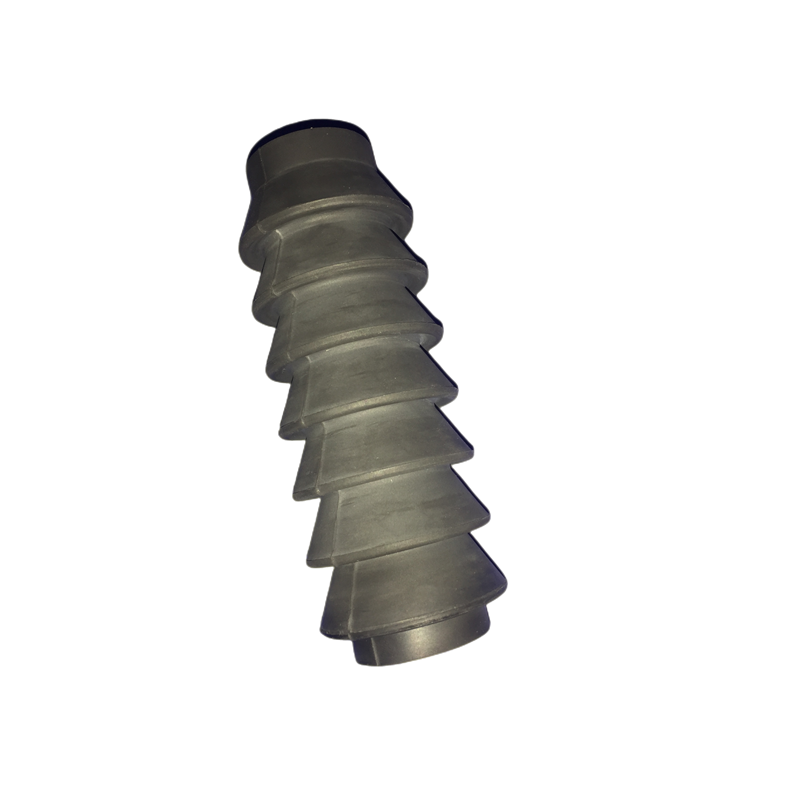

Twist-On Sucker Rod Guides — Drawing/Sample Configuration
Twist-On Sucker Rod Guides — Drawing/Sample ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information
Twist-On Sucker Rod Guides are quoted for the buyer’s rod, tubing and twist-on installation geometry. The installed guide envelope must be checked against the available tubing clearance.
Confirm the installed configuration
Provide the sucker-rod size, verified tubing inside diameter, installed guide dimensions and the twist geometry used to assemble the guide on the rod.
Information needed for quotation
- Sucker-rod size and actual rod outside diameter
- Tubing size and verified inside diameter
- Required installed guide outside diameter, length and profile
- Twist geometry, opening form and installation direction
- Required number and spacing per rod, when specified
- Existing reference, drawing, dimensional sketch or physical sample, when available
- Service fluid, solids, movement, cycle and continuous and peak temperature conditions
- Compound, hardness, color, inspection and documentation requirements, when specified
- Required quantity and delivery destination
Custom manufacturing review
Royal Way reviews the rod interface, tubing clearance, twist-on profile, installation method, elastomer requirement and inspection scope before quotation.
Ordering
Send the rod, tubing and installed-guide details together with a drawing or sample when available. Final geometry, materials and production requirements are confirmed with the quotation.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
