RV-Series V-Ring Swab Cups — Tubing/Casing Configuration

Specifications & Product Information

Royal Way manufactures custom RV-series V-ring swab cups for tubing and casing swabbing assemblies. Each cup is configured to the mandrel or core, tubing or casing reference and service information supplied with your enquiry.

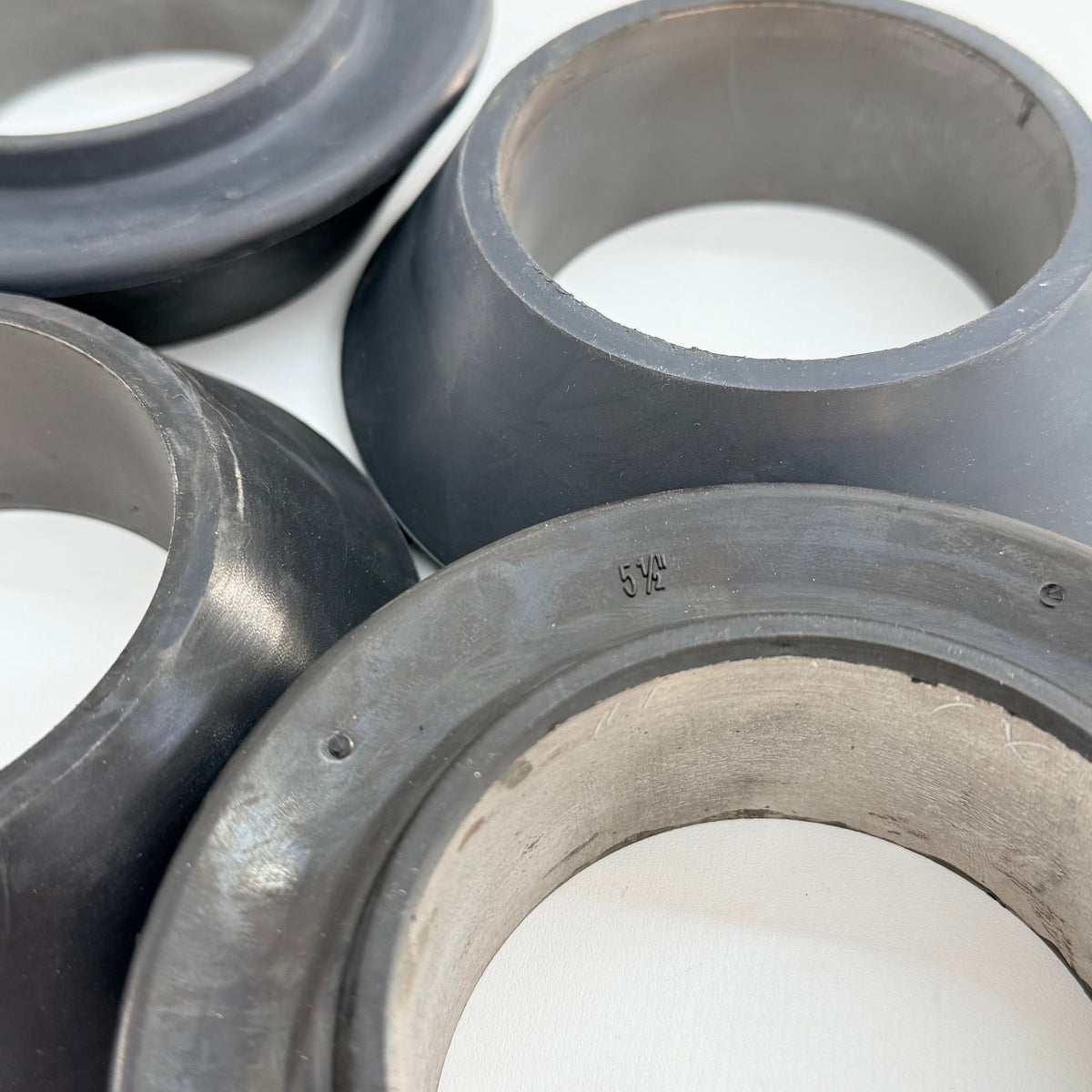

Representative image: The displayed V-ring profile is a company-owned 5-1/2 in example for orientation only. It does not establish the requested size, dimensions, fit, material construction or service rating for another assembly.

Configured for the swabbing assembly

• V-ring cup profile developed from a drawing or sample
• Single-cup or stacked arrangements reviewed to the customer specification
• 1.900 in, 2-3/8 in and 2-7/8 in tubing references can be evaluated
• 4-1/2 in and 5-1/2 in casing references can be evaluated

Information required for quotation

Please provide the tubing or casing reference, minimum internal diameter, cup outside diameter, mandrel or core dimensions, cup count and stack arrangement, fluid, temperature range, expected load, quantity and any drawing or sample.

Series and size references are used only to identify the requested equipment configuration. Royal Way is not affiliated with the original equipment manufacturer. Fit and material construction are confirmed from customer-provided data before quotation.

Request a quote with drawings, CAD files or sample details.
