Hammer Union Seals — Size/Figure Configuration
Hammer Union Seals — Size/Figure ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information
Hammer Union Seals — Size/Figure Configuration

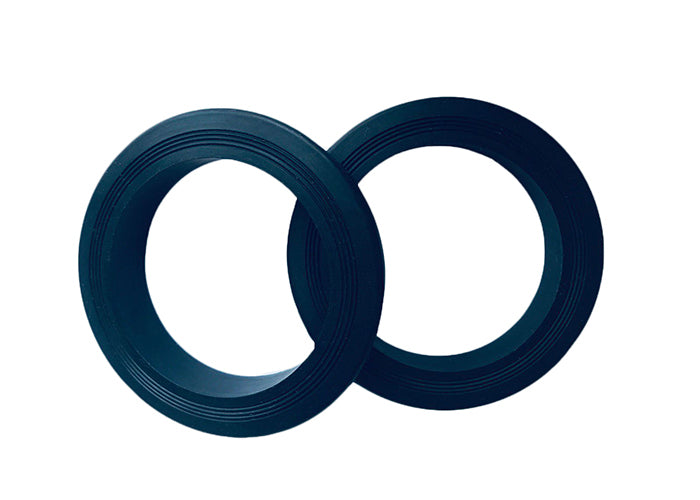

Royal Way can review and quote replacement elastomer seals for customer-specified hammer union assemblies used in oilfield flowline service. The company-owned 2 in image is a representative lip-seal sample; it is not a dimensional or figure reference for every configuration.
Include with your enquiry
- Union manufacturer, exact figure, nominal size and original seal reference
- Seal profile, dimensions, drawing or an existing sample
- Required compound and hardness when already controlled by the specification
- Fluid, temperature, pressure class, pressure direction and operating cycle
- Required quantity, tolerances, inspection and documentation requirements
Final profile, material, fit and service suitability are confirmed from the submitted union reference and operating conditions before quotation.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
