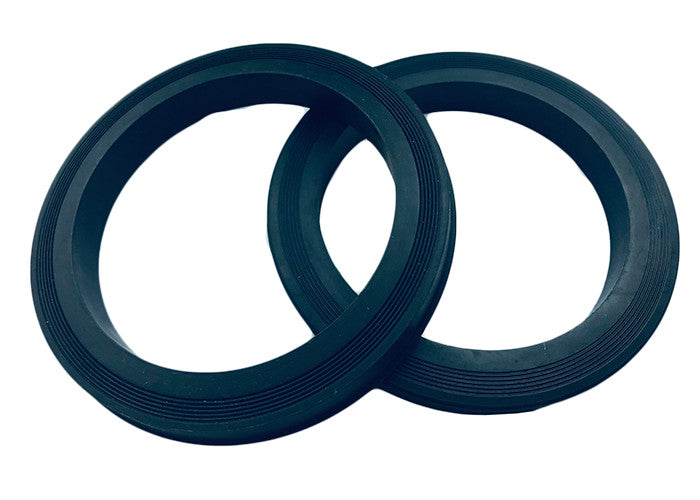

Figure 2202 Hammer Union Seal
Royal Way manufactures sealing elements for buyer-defined Figure 2202 hammer union assemblies. Quotations are prepared from the current union reference, controlled seal drawing, complete dimensions or an existing sample.
Information for quotation
- Union manufacturer, exact figure, nominal size and original seal reference
- Required seal form and profile for the specified union size
- Male and female union dimensions, seal pocket and retaining geometry
- Seal outside diameter, inside diameter, height and critical profile dimensions
- Any anti-extrusion or metal-backed construction required by the assembly
- Fluid, temperature, pressure class, pressure direction and operating cycle
- Required quantity, tolerances, inspection and documentation requirements
The Figure 2202 designation alone does not establish seal form, dimensions, fit or pressure rating. Final geometry, compound and construction are confirmed after the complete union configuration is reviewed.
