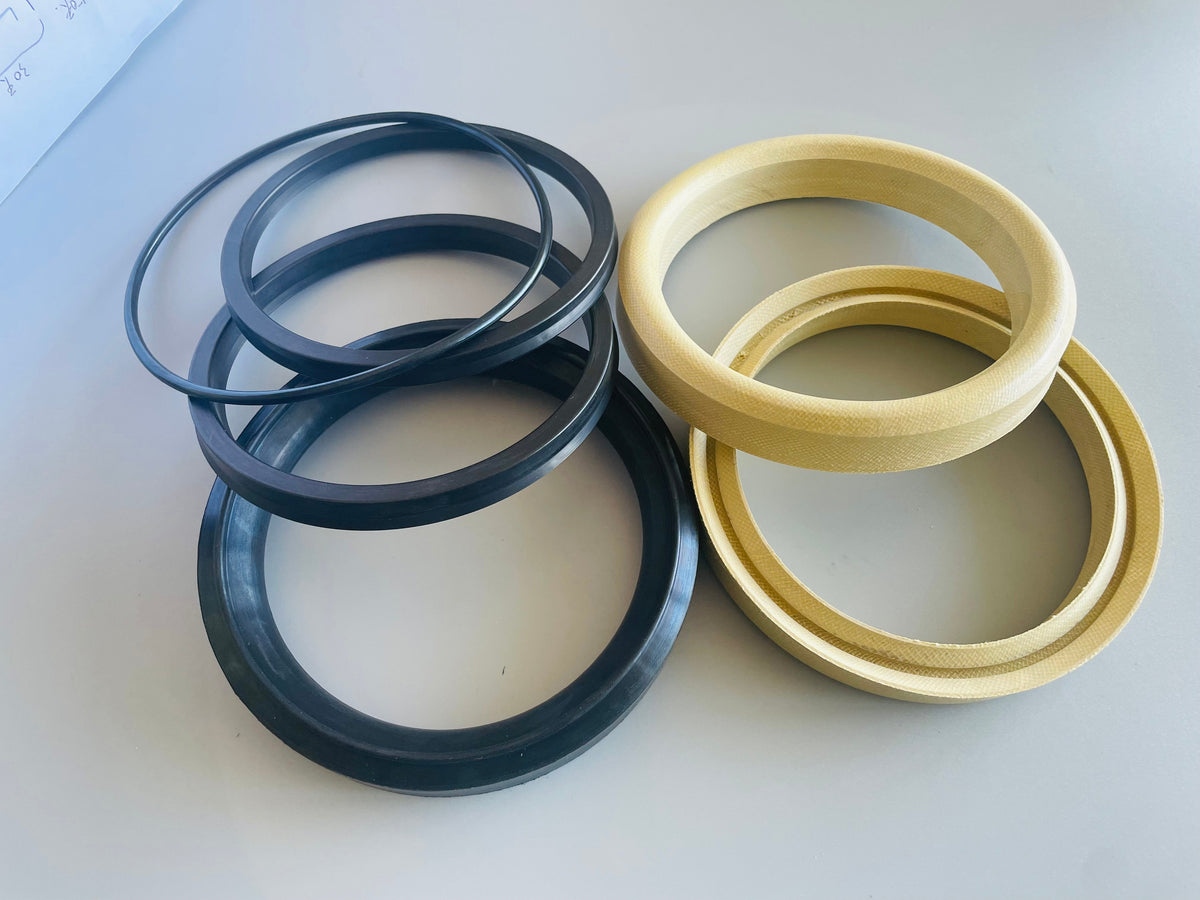

Custom Washpipe Packing Rings — Drawing/Sample Configuration

Specifications & Product Information

Custom Washpipe Packing Rings are quoted against the buyer’s washpipe, packing housing and gland or stack arrangement. The complete ring profile and installed stack must be confirmed for the rotating equipment.

Confirm the washpipe and packing stack

Provide the washpipe outside diameter, housing bore and available packing depth. Identify the number and order of packing rings and any header, adapter, spacer, backup or lantern-ring interfaces.

Information needed for quotation

• Rotary equipment or pump maker, model and washpipe reference
• Washpipe outside diameter and mating-surface finish requirement, when specified
• Packing housing bore, depth, gland travel and interface dimensions
• Ring cross-section, lip or V profile, height and installed stack arrangement
• Header, adapter, spacer, backup and lantern-ring details, when applicable
• Existing reference, drawing, dimensional sketch or physical sample, when available
• Service fluid, continuous and peak pressure and temperature, rotation and duty cycle
• Compound, hardness, reinforcement, fabric or insert requirements, when specified
• Inspection, documentation, required quantity and delivery destination

Custom manufacturing review

Royal Way reviews the washpipe and housing interfaces, packing profile, stack arrangement, elastomer or reinforced-material requirement and inspection scope before quotation.

Ordering

Send the washpipe and packing-stack details together with a drawing or sample when available. Final geometry, materials and production requirements are confirmed with the quotation.

Request a quote for Custom Washpipe Packing Rings — Drawing/Sample Configuration
