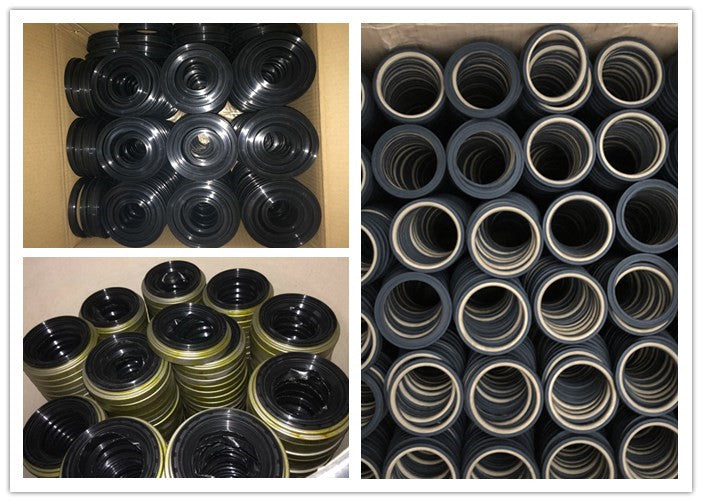

Custom Stuffing Box Donut Packing — Drawing/Sample Configuration

Specifications & Product Information

Custom Stuffing Box Donut Packing is quoted against the buyer’s polished rod, stuffing-box bore and gland arrangement. The annular profile, any split or insert features and the complete installed stack must be confirmed.

Confirm the stuffing-box stack

Provide the polished-rod outside diameter, housing bore and available packing depth. Identify the packing-ring geometry, orientation and any heel, spacer, backup, insert, energizer, lantern or gland components.

Information needed for quotation

• Stuffing box or equipment maker, model and existing packing reference
• Polished-rod outside diameter and mating-surface details
• Housing bore, packing depth, gland travel and tolerances
• Ring outside diameter, inside diameter, height and sealing profile
• Split, solid, insert, energizer, spacer, backup, lantern and gland-stack details
• Existing drawing, dimensional sketch or physical sample, when available
• Produced fluid, pressure, temperature, stroke, speed and cycle conditions
• Compound, hardness, reinforcement, bonding, inspection and documentation requirements, when specified
• Required quantity and delivery destination

Custom manufacturing review

Royal Way reviews the polished-rod and housing interfaces, ring geometry, packing stack, elastomer or insert requirement and inspection scope before quotation.

Ordering

Send the stuffing-box and donut-packing details together with a drawing or sample when available. Final geometry, materials and production requirements are confirmed with the quotation.

Request a quote for Custom Stuffing Box Donut Packing — Drawing/Sample Configuration
