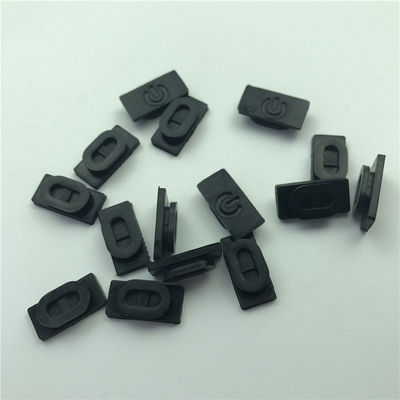

Custom Silicone Rubber Keypads & Buttons

Royal Way supplies drawing-defined molded silicone keypads, button mats and individual control buttons for equipment interfaces, instruments and electronic controls. Each request is reviewed against the key geometry, actuation layout, material specification, mating components and finishing requirements before quotation.

Component formats for review

• Single molded buttons, grouped key mats and multi-key keypad layouts
• Web and dome geometries defined by the customer drawing
• Mechanical-button or contact-feature configurations when fully specified
• Custom color, translucent-area, surface-texture and marking requirements for review

Information for quotation

• 2D drawing, 3D model, key layout or representative sample
• Key centers, overall dimensions, web geometry, travel and customer force requirement
• Mating housing, bezel, circuit board and contact-interface details
• Required silicone grade, hardness, color and customer material specification
• Contact features, backlighting areas, legends, coatings or surface treatment when required
• Service temperature, cleaning media, environmental exposure and expected cycle
• Critical tolerances, inspection, testing and documentation requirements
• Prototype quantity, production quantity, annual demand and packaging requirements

Final material, molding process, tooling, contact construction, tolerances and application suitability are confirmed after the complete interface and service requirements are reviewed.
