Custom Self-Sealing Packer Elements — Mandrel/Bore Configuration
Custom Self-Sealing Packer Elements — Mandrel/Bore ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information

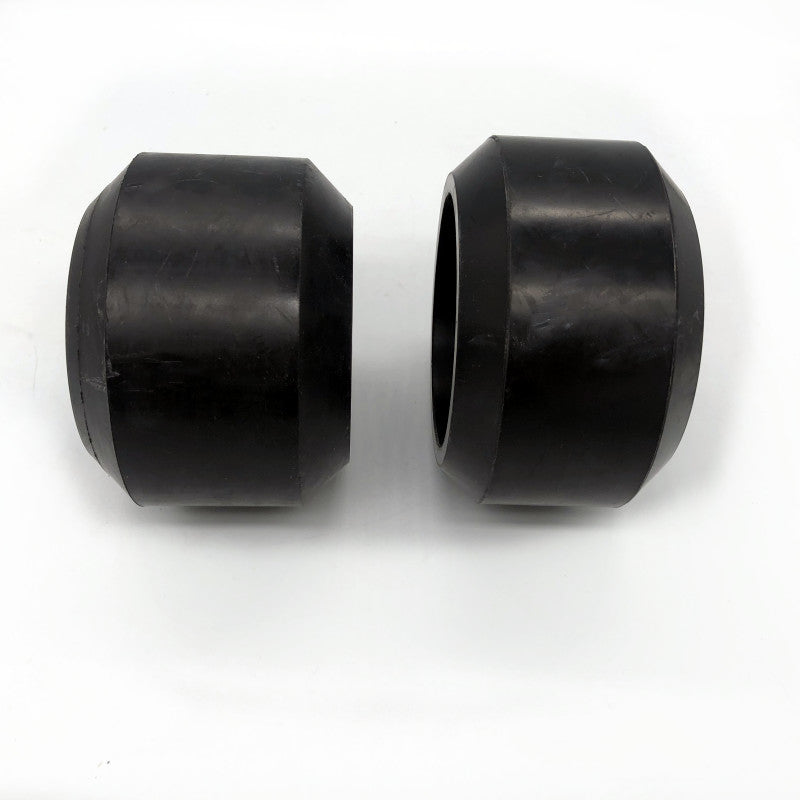

Custom Self-Sealing Packer Elements
Royal Way manufactures custom molded elastomer self-sealing profile elements for buyer-defined downhole packer and well-service tools. Quotations are prepared from a controlled element drawing, complete mandrel and bore interfaces, an existing sample or a verified original part reference.
Information for quotation
- Tool manufacturer, model, assembly revision and original element reference when available
- Mandrel outside diameter, element inside diameter, free outside diameter and target bore or casing inside diameter

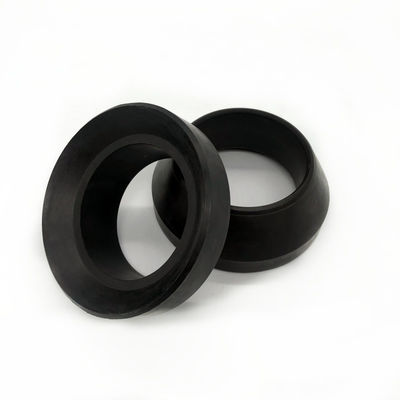

- Element length, sealing lip or cup profile, support shoulders, retainers and installed orientation
- Tool assembly sequence, axial compression or hydraulic actuation method and available travel
- Pressure direction, differential loading, fluid, solids content, temperature and operating cycle
- Required compound, hardness, reinforcement or bonded insert when already controlled by the specification
- Required quantity, dimensional tolerances, inspection and documentation requirements
Self-sealing identifies a profile and tool-function family only; it does not establish geometry, expansion, material, tool fit or service rating. Final construction is confirmed against the complete assembly and operating conditions.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
