Custom Rubber Bellows
Custom Rubber BellowsRequest a Quote · Drawing and sample review
Specifications & Product Information

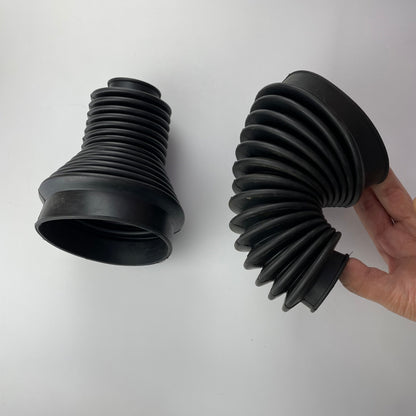

Custom Rubber Bellows are manufactured to a buyer's drawing, sample or equipment interface when a flexible molded cover, boot or movement profile is required.
Define the bellows geometry
Confirm the installed envelope, end connections and required movement before quotation. Similar-looking bellows can differ in convolution profile, wall transitions, end geometry and working travel.
Information needed for quotation
- Drawing, CAD file, physical sample or equipment reference
- Inside and outside dimensions, overall length and end-interface details
- Collapsed, installed and extended dimensions or required movement
- Service medium, continuous and peak temperature, pressure or vacuum conditions
- Material, hardness, reinforcement and surface requirements, when specified
- Prototype and order quantity, inspection needs and delivery destination
Custom manufacturing review
Royal Way reviews the bellows profile, molding route, material requirement and inspection scope for each project before quotation.
Ordering
Send the available drawing or sample together with the operating conditions. Final geometry, compound, hardness and production requirements are confirmed with the quotation.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
