Custom Ring Seals — Drawing/Sample Configuration
Custom Ring Seals — Drawing/Sample ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information

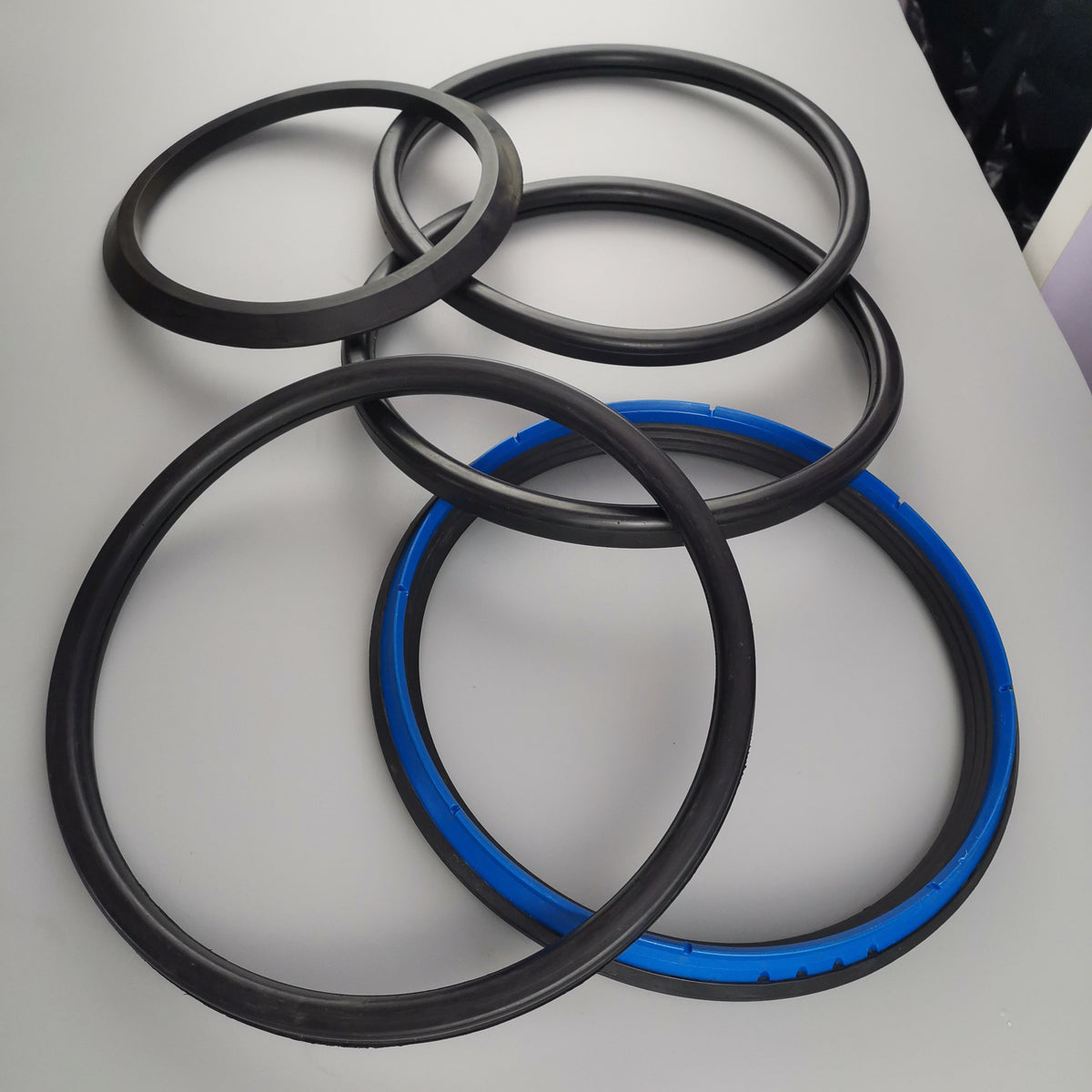

Royal Way develops custom ring-seal profiles to buyer drawings, CAD models or physical samples. Each profile is reviewed against the complete sealing interface rather than outside dimensions alone.
Define the sealing profile
- Inside diameter, outside diameter, axial width and cross-section
- Sealing lips, steps, grooves, radii and other profile features
- Mating hardware, installation direction and static or moving contact
- Prototype and production quantities for quotation
Information required for quotation
Please provide a drawing or sample, profile dimensions and tolerances, mating or gland details, installation method, movement conditions, service medium, pressure and temperature range, material requirements when defined, surface requirements, inspection needs and quantity.
Final material, profile, tolerances and application suitability are confirmed after review of the complete specification.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
