Custom Pre-Assembled Packer Element Systems — Stack/Backup Configuration

Specifications & Product Information

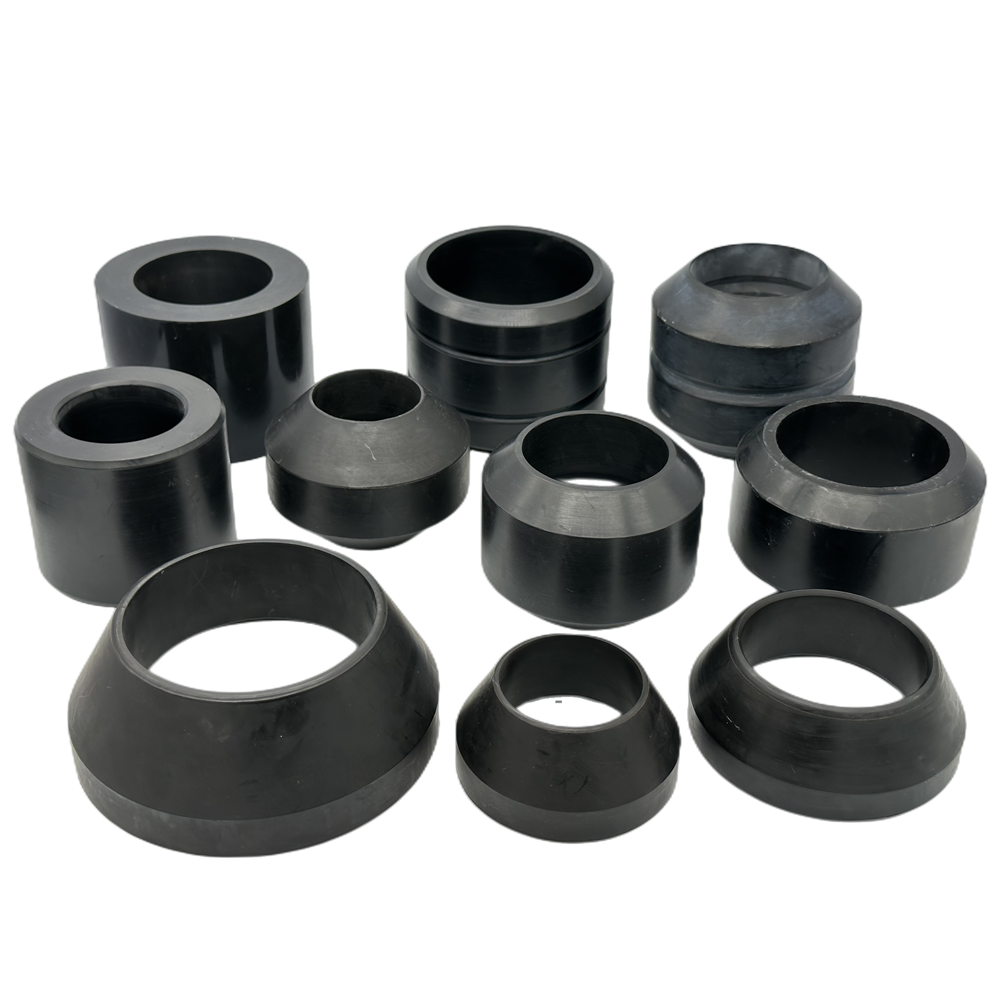

Custom Pre-Assembled Packer Element Systems

Royal Way supplies custom pre-assembled packer element systems built around buyer-defined elastomer elements, backup components and mandrel interfaces for downhole tools. Each quotation is based on the complete element stack, metal and polymer interfaces, assembly method and service conditions; an element outside diameter alone is not a complete specification.

Configurations for review

• Drawing-defined single- or multiple-element stacks
• Custom element profiles, stack lengths, spacing and differential-pressure direction
• Buyer-defined backup rings, end rings, spacers, sleeves or mandrel interfaces
• Specified bonded, retained, interference-fit or separately assembled component interfaces

Information for quotation

• Tool or packer reference, complete assembly drawing, bill of materials and revision level when available
• Mandrel, gauge-ring, backup-ring, spacer and housing interface dimensions
• Element profile, bore, outside diameter, stack length, quantity and critical tolerances
• Backup component materials, geometry, surface condition and retention details when controlled
• Required elastomer compound, hardness, reinforcement and element-to-component bonding requirements when specified
• Assembly sequence, orientation, preload, retention and marking requirements when controlled
• Service medium, temperature, pressure differential and direction, setting or retrieval method and expected operating cycle
• Prototype, inspection, assembly-verification, traceability and packaging requirements

Final element geometry, stack construction, component materials, bonding and assembly method, tolerances and application suitability are confirmed after the complete tool and service requirements are reviewed.

Request a quote for this product
