Custom Molded Rubber Support Blocks & Pipe Saddles
Royal Way manufactures molded rubber support blocks and pipe saddles to customer drawings or samples. These parts provide a shaped contact interface between a supported pipe or component and its mounting surface.
Cradle and base profiles

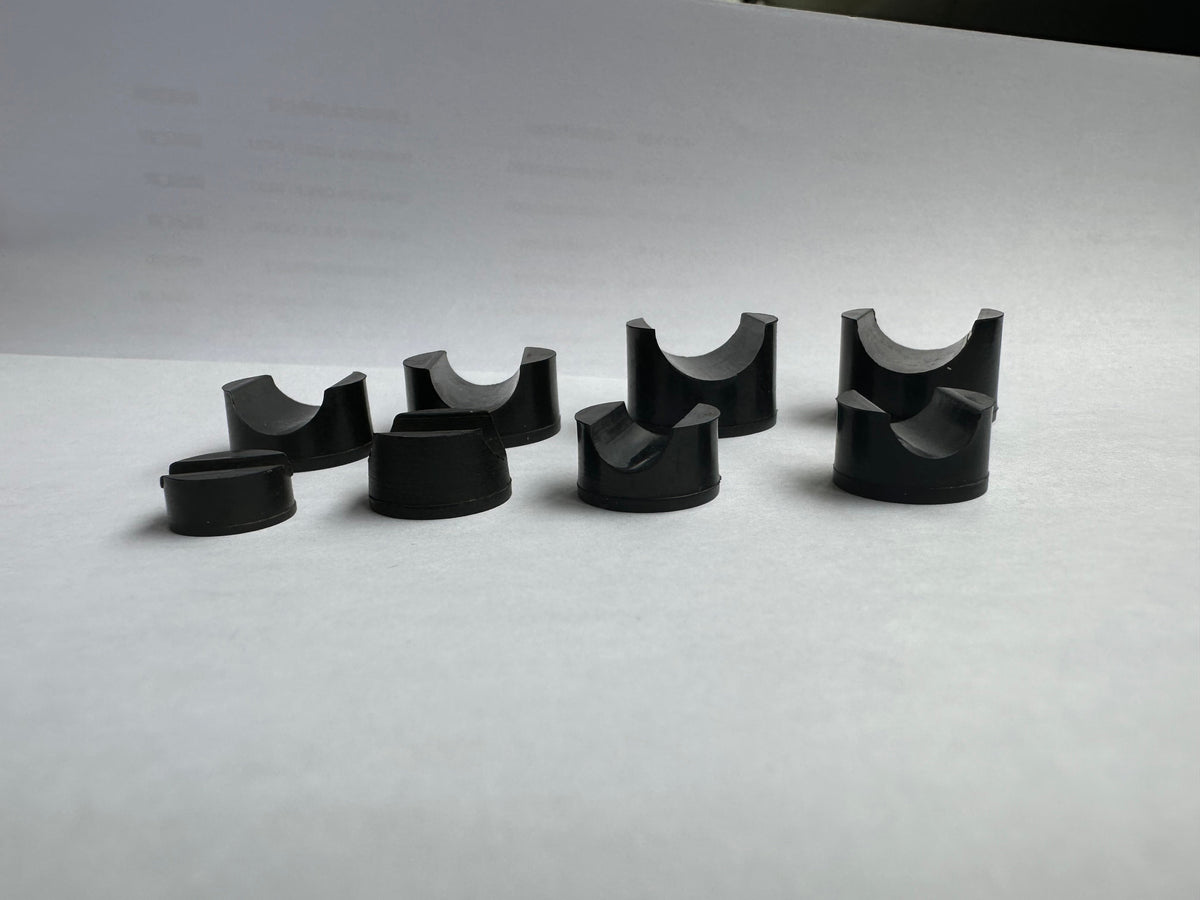

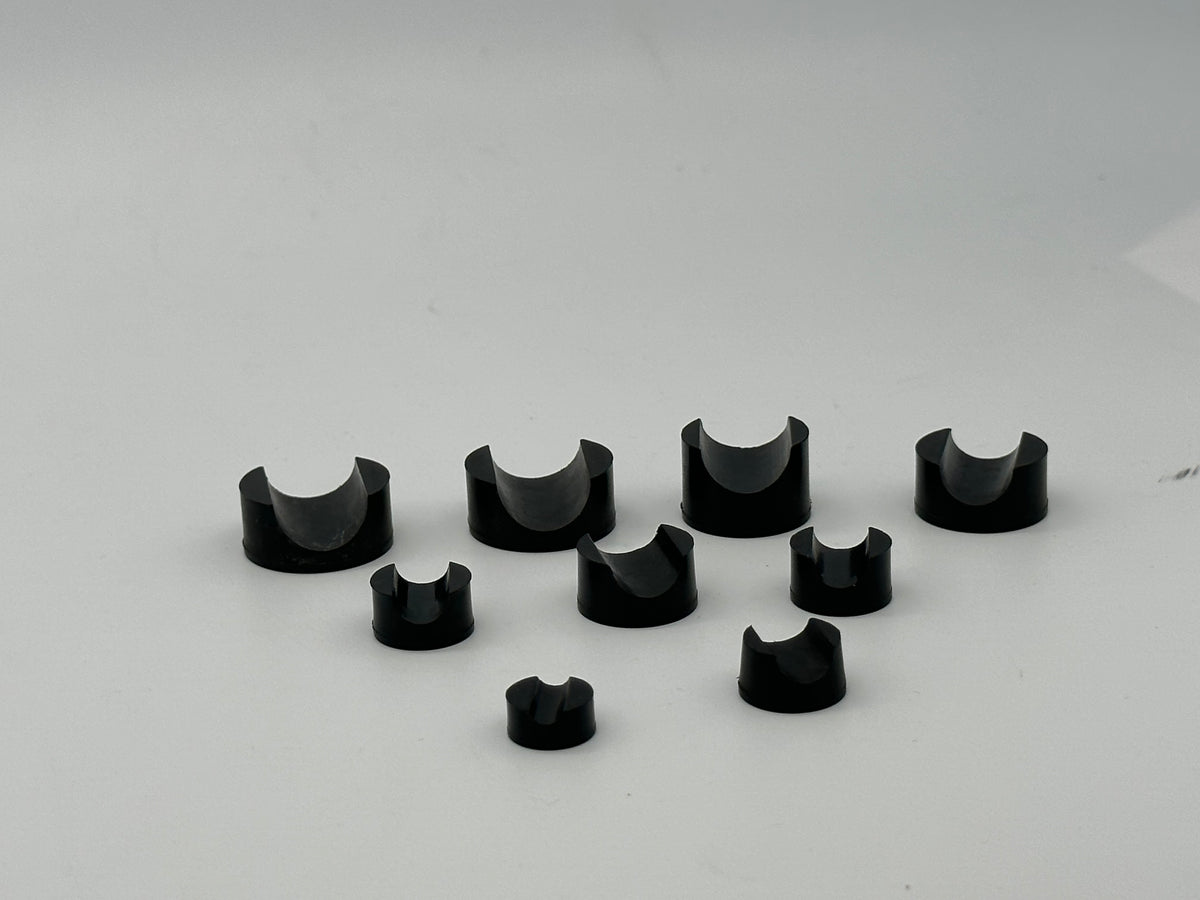

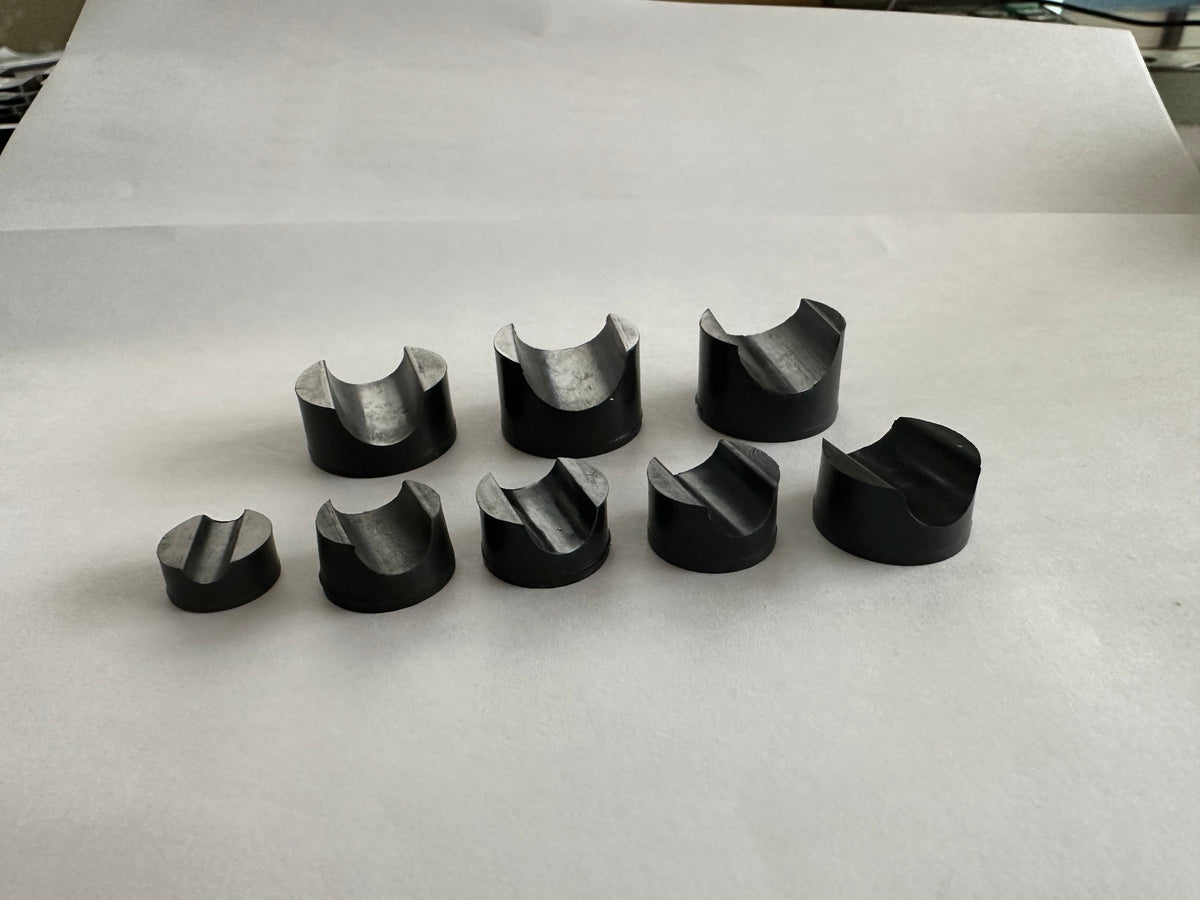

The molded profiles shown combine a round base with an open semicircular cradle. Groove width, groove depth, body height and the base profile define how the part fits the surrounding assembly.
Specify the mating interface
- Supported pipe or component diameter, including any coating or outer sleeve.
- Cradle profile, contact length, overall height and available installation space.
- Base dimensions, fastening arrangement and any required holes or inserts.
- Dimensional tolerances and the surfaces that must contact the mating part.
Tell us the operating conditions
Include the expected load and its direction, allowable compression, operating temperature and contact with oils, chemicals or outdoor conditions. If your drawing specifies a compound or hardness, include that requirement with the inquiry.
Request a quote
Send the part drawing or sample, an assembly view and required quantity to request a quote. For a replacement part, include photos of the installation and identify the dimensions that must remain unchanged.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
