Custom Molded Rubber Rings — Drawing/Groove Configuration
Custom Molded Rubber Rings — Drawing/Groove ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information

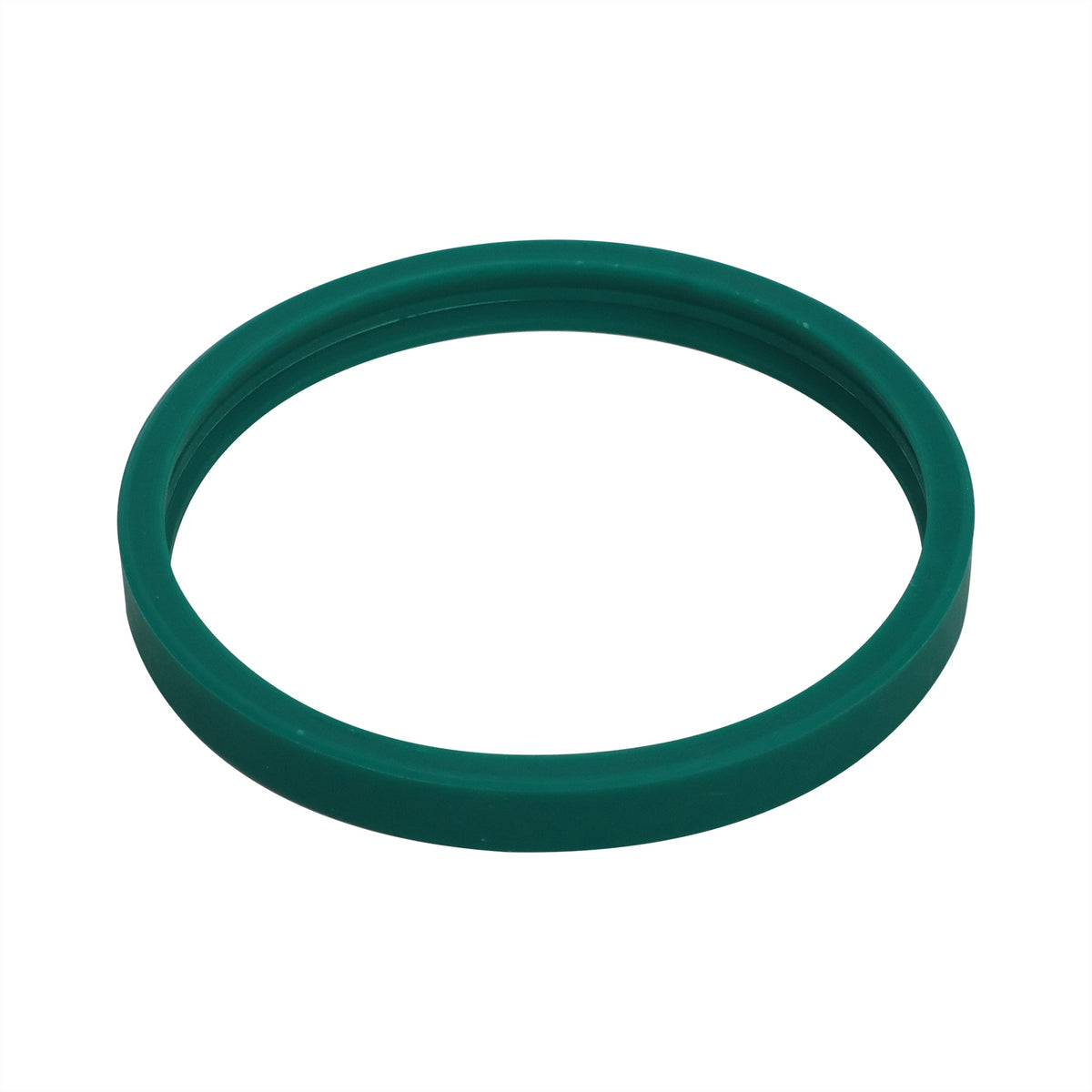

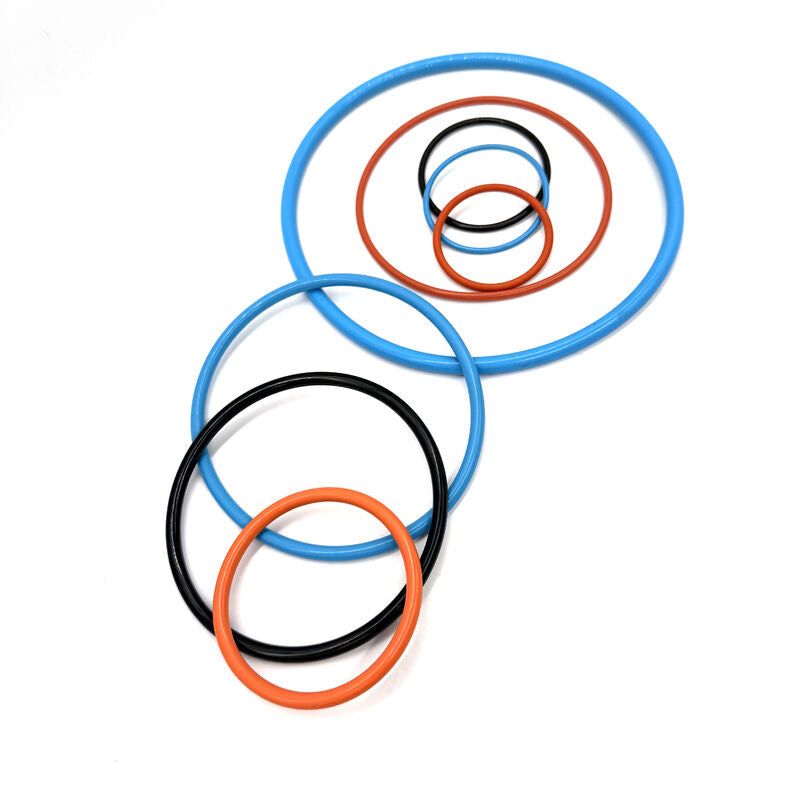

Custom Molded Rubber Rings are ring and O-ring profiles made to a drawing, sample or identified equipment groove for sealing and interface applications.
Define the ring interface
Confirm the groove, mating surfaces, cross-section, joint movement and installation method before quotation. Final compound, profile and fit are confirmed from the supplied requirements.
Information needed for quotation
- Drawing, CAD file, physical sample or equipment reference
- Inside and outside dimensions, cross-section, groove and tolerance details
- Joint movement, compression, assembly method and surface finish
- Service medium, temperature range, pressure or vacuum conditions
- Compound, hardness, color and inspection requirements, when specified
- Prototype or production quantity and delivery requirements
Custom manufacturing review
Royal Way reviews the ring profile, molding or cutting route, material requirement and inspection scope before quotation.
Request a quote
Send the available drawing or sample together with the groove and operating conditions. Final profile, compound and production requirements are confirmed with the quotation.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
