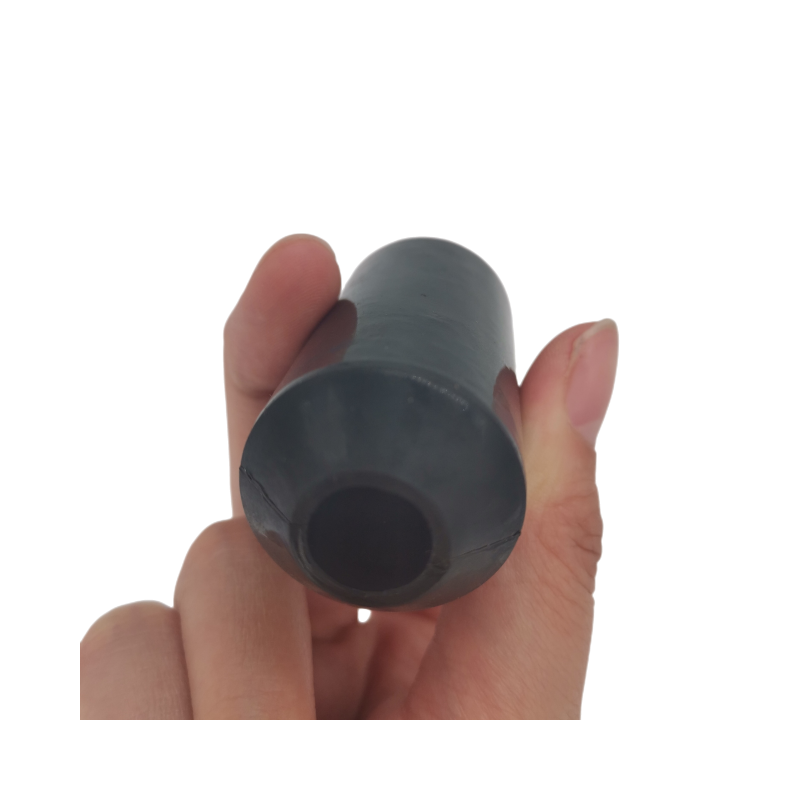

Custom Molded Rubber Handles & Grips

Royal Way manufactures custom molded rubber handles, sleeves and grip components for buyer-defined equipment and tool interfaces. Each quotation is based on an approved drawing, CAD model, measured sample or complete mating-interface information.

Configurations for review

• Cylindrical, contoured, flanged and other drawing-defined grip geometries
• Push-on, retained, bonded or other buyer-defined mounting constructions
• Custom bore, outside profile, length, end condition and interface features
• Buyer-specified compound, hardness, color and surface requirements

Information for quotation

• Dimensioned drawing, CAD model, measured sketch or representative sample
• Handle, shaft or mating-part dimensions, insertion depth and retention features
• Installed orientation, assembly method, movement and applied loading
• Contact fluids, operating temperature, outdoor exposure and cleaning conditions
• Required compound, hardness, color or finish when already specified
• Quantity, tooling, inspection, documentation and packaging requirements

Final geometry, material, hardness, tolerances, mounting construction, surface requirements and inspection scope are confirmed after the part and application information are reviewed.
