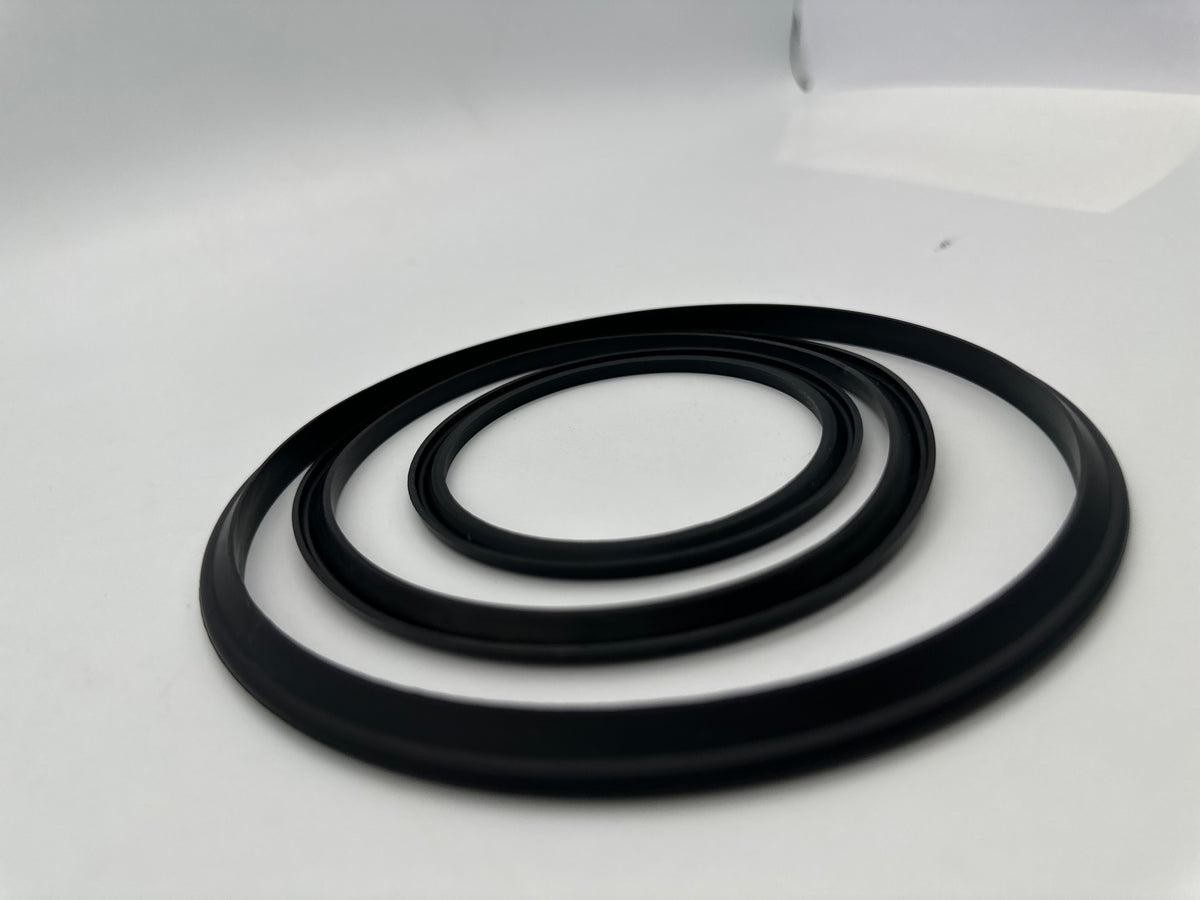

Custom Molded Rubber Dust Seals

Royal Way manufactures custom-molded elastomer dust seals for shafts, rods, housings, pumps, valves and machinery interfaces. Each seal is developed from the installed geometry, relative movement and exposure conditions supplied with the inquiry.

Configurations for review

• Drawing-defined radial, axial, lip, flange and seating profiles
• Static, reciprocating or rotating interface configurations
• Custom inside diameter, outside diameter, width and retention geometry
• Compound and hardness selection based on the confirmed contamination, fluid, temperature and movement conditions

Information for quotation

• Equipment, assembly and seal-position reference
• Seal drawing, dimensional sketch, existing part reference or physical sample
• Shaft or rod diameter, housing bore, groove, retainer and mating-surface dimensions
• Seal inside diameter, outside diameter, width, lip direction and installed interference
• Movement type, rotational speed or stroke, surface finish and runout
• Expected dust, debris, weather and fluid exposure, plus the operating temperature range
• Quantity, dimensional tolerances, inspection documentation and packaging requirements

A nominal shaft or housing size alone does not establish seal geometry or suitability. Final profile, dimensions, formulation and inspection scope are confirmed with the quotation.
