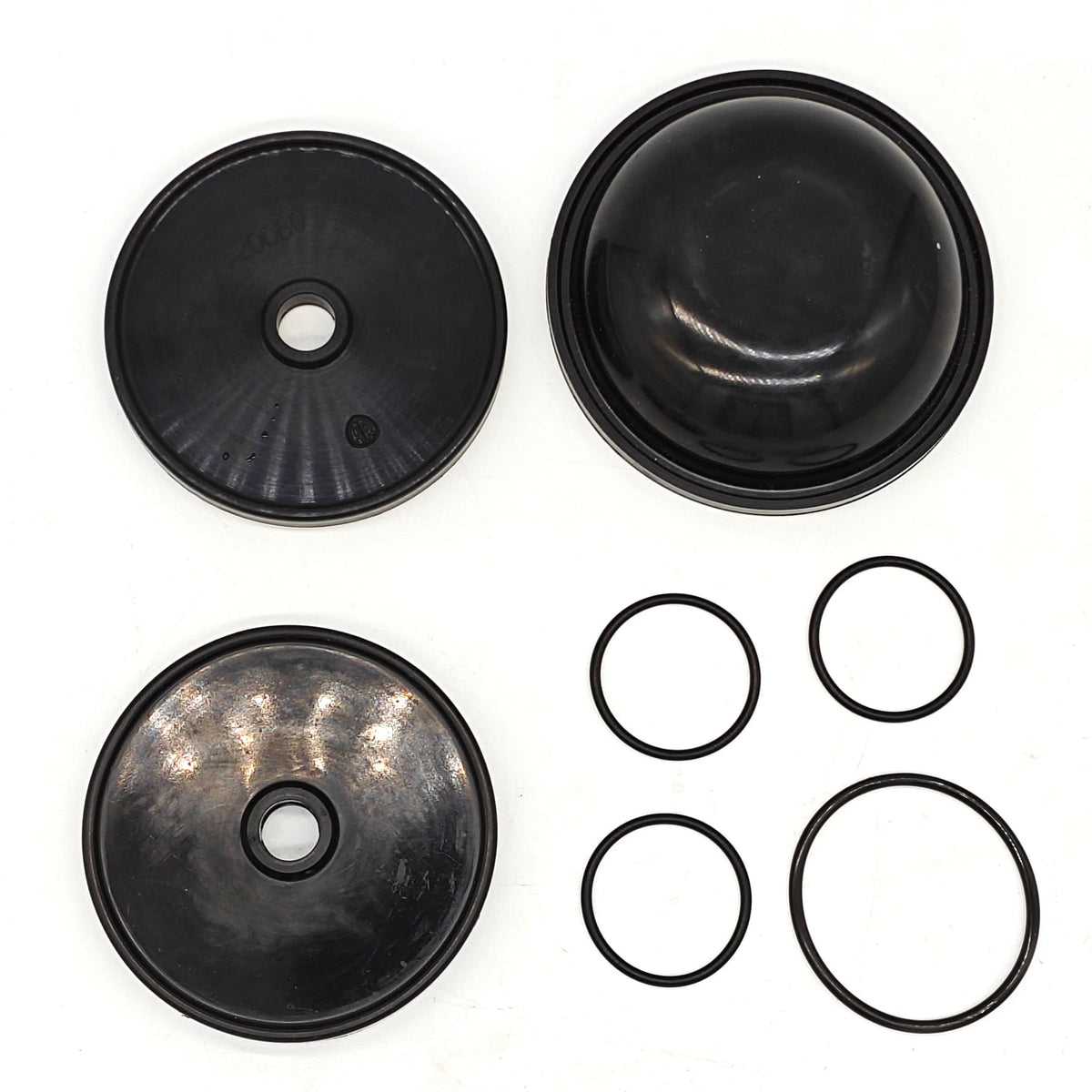

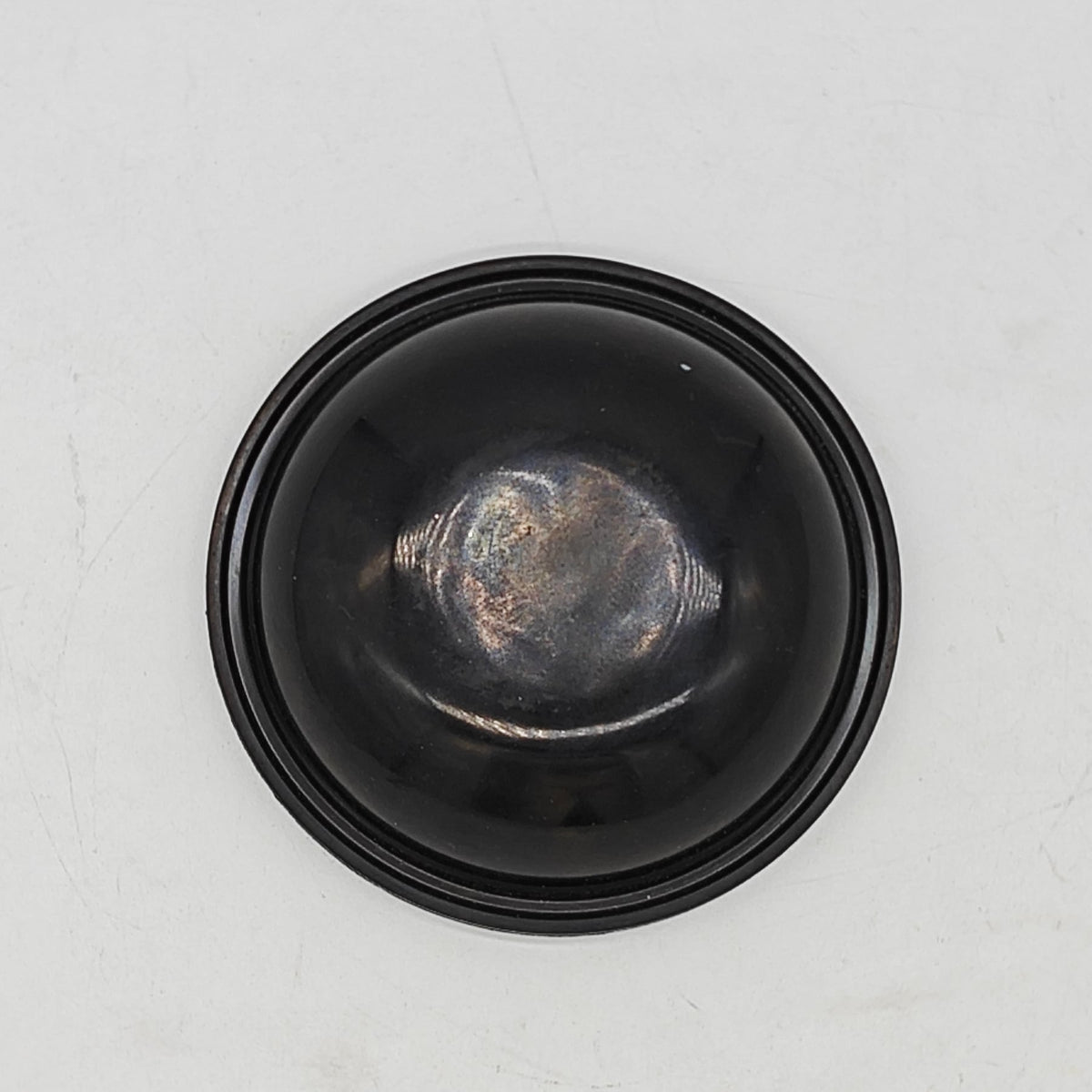

Custom Molded Rubber Diaphragms
Custom Molded Rubber DiaphragmsRequest a Quote ยท Drawing and sample review
Specifications & Product Information
Custom Molded Rubber Diaphragms for equipment manufacturers, maintenance teams and procurement teams sourcing a diaphragm to a drawing, sample or equipment reference.
Use the supplied geometry, movement and service conditions to define the application. Share the available part information so Royal Way can prepare a quotation for the required component.
Selection information
Confirm part geometry, formed height, thickness, bead and clamping profile, center shape, movement, mating parts and installation details. Include known material, hardness, reinforcement or insert requirements.
Information needed for quotation
- Drawing, CAD file, equipment reference, photographs or physical sample
- Outside and inside dimensions, formed height, thickness, bead and clamping profile
- Movement, mating parts and installation details
- Known material, hardness, reinforcement or insert requirements
- Contact medium, temperature, pressure and cycle information where available
- Prototype or order quantity, inspection needs and delivery destination
Manufacturing and inspection support
Royal Way can work from buyer-supplied drawings, samples, measurements, equipment information and service details. Prototype, tooling, material and inspection requirements can be discussed for the application.
Request a Quote
Price, final geometry, dimensions, material, hardness, reinforcement, fitment, service limits, performance, minimum order quantity, lead time and tooling will be confirmed in the quotation and order documents. Images provide visual context and do not establish exact model compatibility or interchangeability.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
