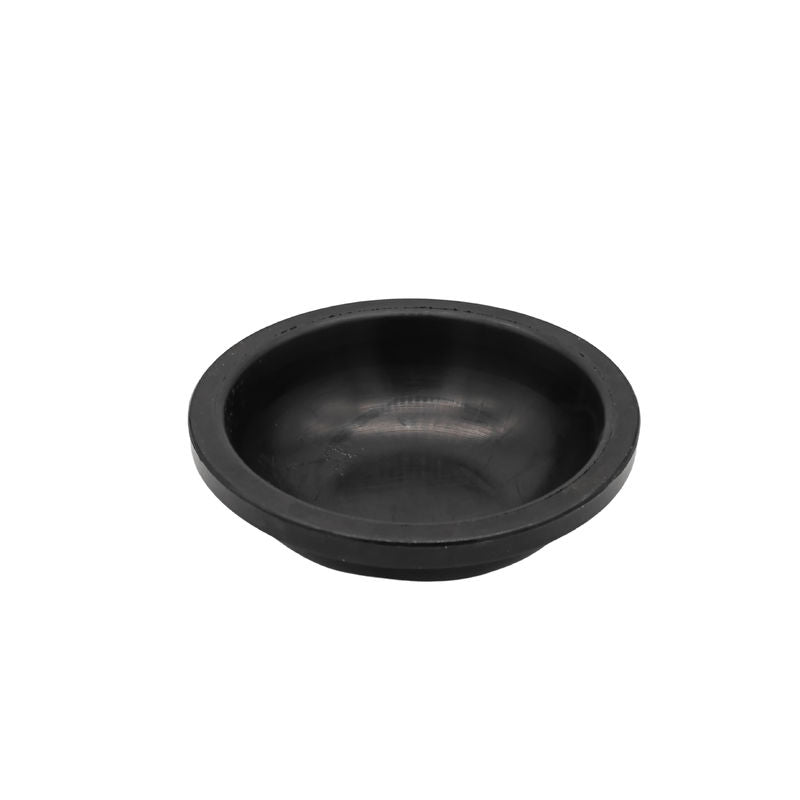

Custom Molded Rubber Diaphragm - Drawing/Sample Configuration
Custom Molded Rubber Diaphragm - Drawing/Sample ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information
Custom Molded Rubber Diaphragm - Drawing/Sample Configuration is available for quotation from a supplied drawing, CAD file or sample. This page does not establish universal material, fitment or performance specifications.
Buyer use and scope
Use this page when a maintenance, engineering or procurement team needs a molded diaphragm reviewed against a defined equipment interface. Submit the current drawing revision or sample with the quotation request.
Selection checklist
Start with the equipment or pump reference, drawing revision, measured envelope and interface. Record any buyer-specified service medium, temperature, pressure, material or hardness requirement without assuming a default compound.
What to send with your RFQ
- Equipment or pump reference
- Drawing, CAD file, revision or removed sample
- Measured envelope, interface and installation orientation
- Service medium, temperature and pressure envelope
- Material or hardness requirement when specified
- Quantity plus inspection and documentation scope
Factory and engineering support
Royal Way reviews supplied drawings, samples and service information before quotation and can provide inspection documentation to agreed requirements.
Request a Quote
Price, material, dimensions, fitment, hardness, ratings, performance, service limits, minimum order quantity and lead time will be confirmed in the quotation and order documents. No OEM relationship, equivalence or interchangeability is stated.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
