Custom Molded Rubber D-Rings — Groove/Drawing Configuration
Custom Molded Rubber D-Rings — Groove/Drawing ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information

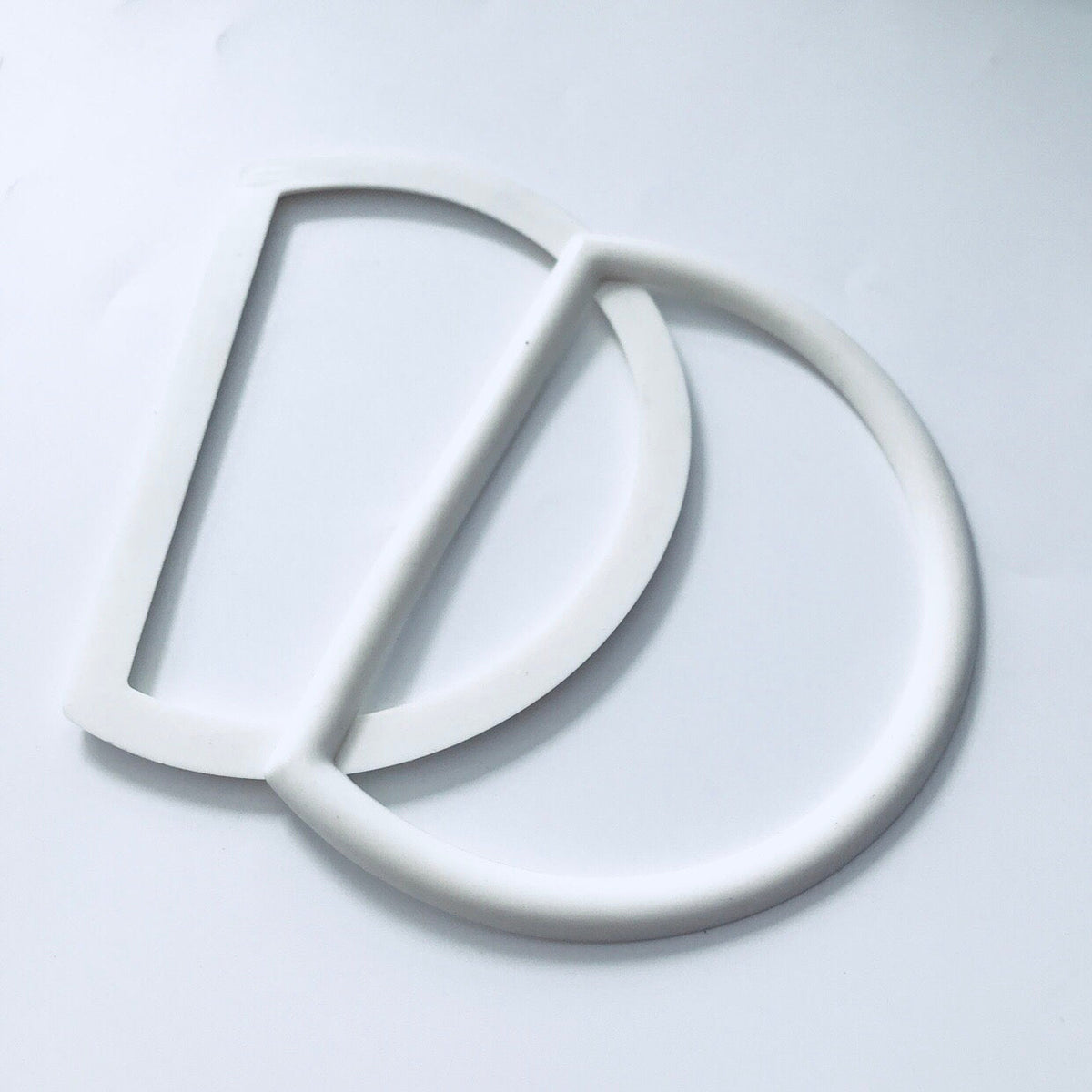

Custom molded rubber D-rings are made to the customer’s drawing, measured sample or installation geometry for sealing, cushioning or locating duties in industrial assemblies. Royal Way reviews the profile and interface before manufacturing so the requested ring is matched to the application.
Specify the ring geometry
Provide the complete D-section or other non-circular profile rather than relying on a nominal diameter alone. State the groove or mating-part geometry, inside and outside dimensions, cross-section, tolerances, surface requirements and any parting-line restrictions.
Information for manufacturing review
- Dimensioned drawing, CAD file or representative sample
- Installed groove and mating-part dimensions
- Static or dynamic duty and expected movement
- Contact media and operating temperature range
- Required compound, hardness or color when already specified
- Quantity, inspection level and documentation requirements
Configuration confirmation
Material, hardness, tolerances, tooling, inspection method and final part identification are confirmed against the approved drawing or sample before production. D-rings are kept separate from standard O-rings, backup rings and metal D-ring hardware.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
