Custom Molded Rubber Packer Elements — Drawing/Sample Configuration
Custom Molded Rubber Packer Elements — Drawing/Sample ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information

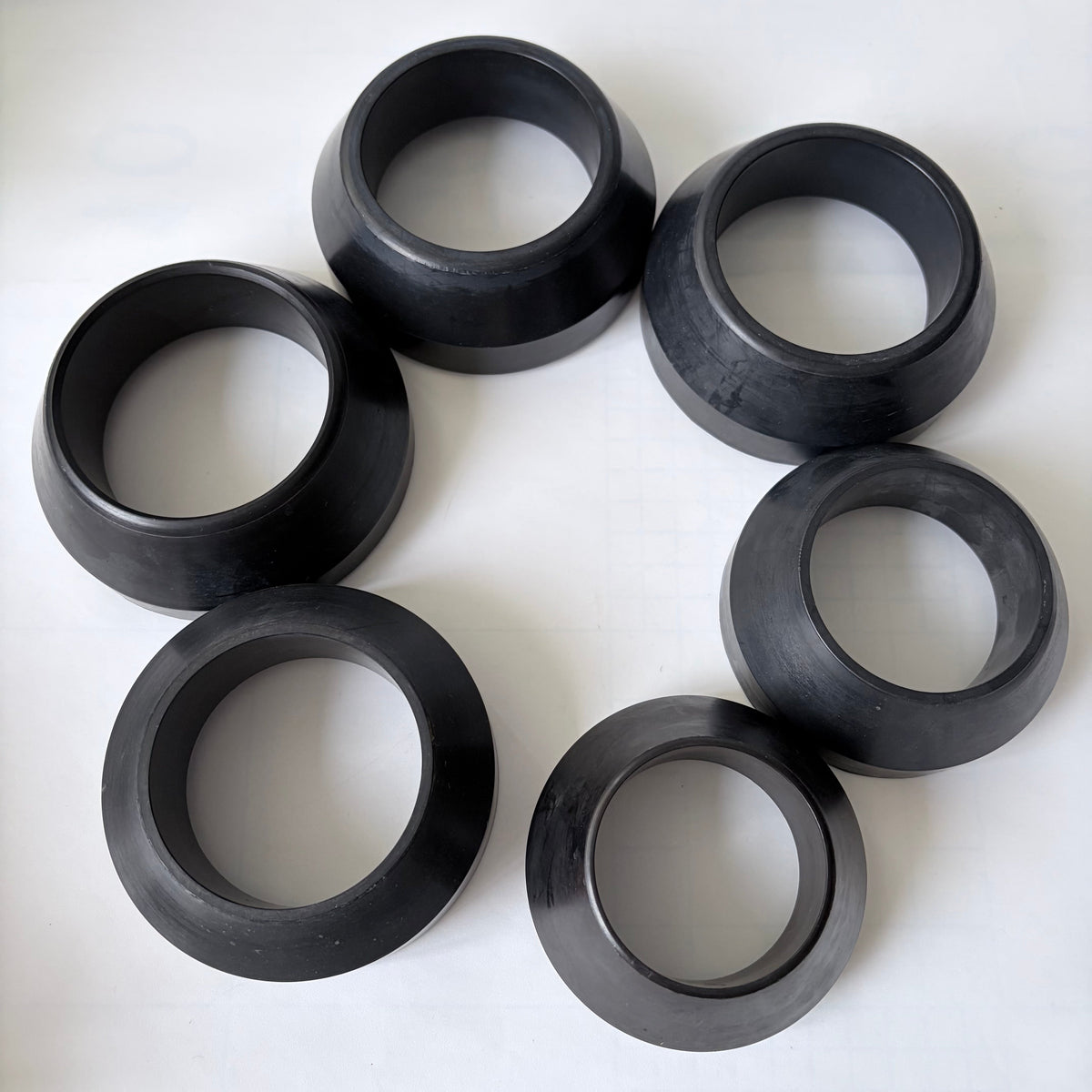

Custom Molded Rubber Packer Elements are supplied for buyer-defined downhole and well-service assemblies. The representative image shows molded rubber packer elements; final geometry and fit are confirmed from your drawing, CAD file or sample.
Configurations for review
- Drawing-defined packer-element profiles, end features and retention interfaces
- Free and installed dimensions reviewed against the customer assembly
- Reinforcement, bonding or mechanical retention included only when specified
- Service and inspection requirements matched to the supplied application data
Information for quotation
- Packer, tool or assembly reference and intended application
- Dimensioned drawing, CAD model, part reference or representative sample
- Element bore, outside profile, length, interface and installed envelope
- Service medium and operating temperature and pressure conditions
- Required compound, hardness, reinforcement, bonding and inspection requirements when specified
- Quantity, documentation and packaging requirements
Final element geometry, compound, reinforcement, tooling, tolerances, fit and service limits are confirmed after technical review.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
