Custom Hydraulic Cylinder Seal Kits
Royal Way prepares drawing- or sample-defined hydraulic cylinder seal kits for oilfield and industrial equipment. A complete kit can be reviewed from the cylinder application, seal locations and supplied bill of materials so the parts match the intended assembly.

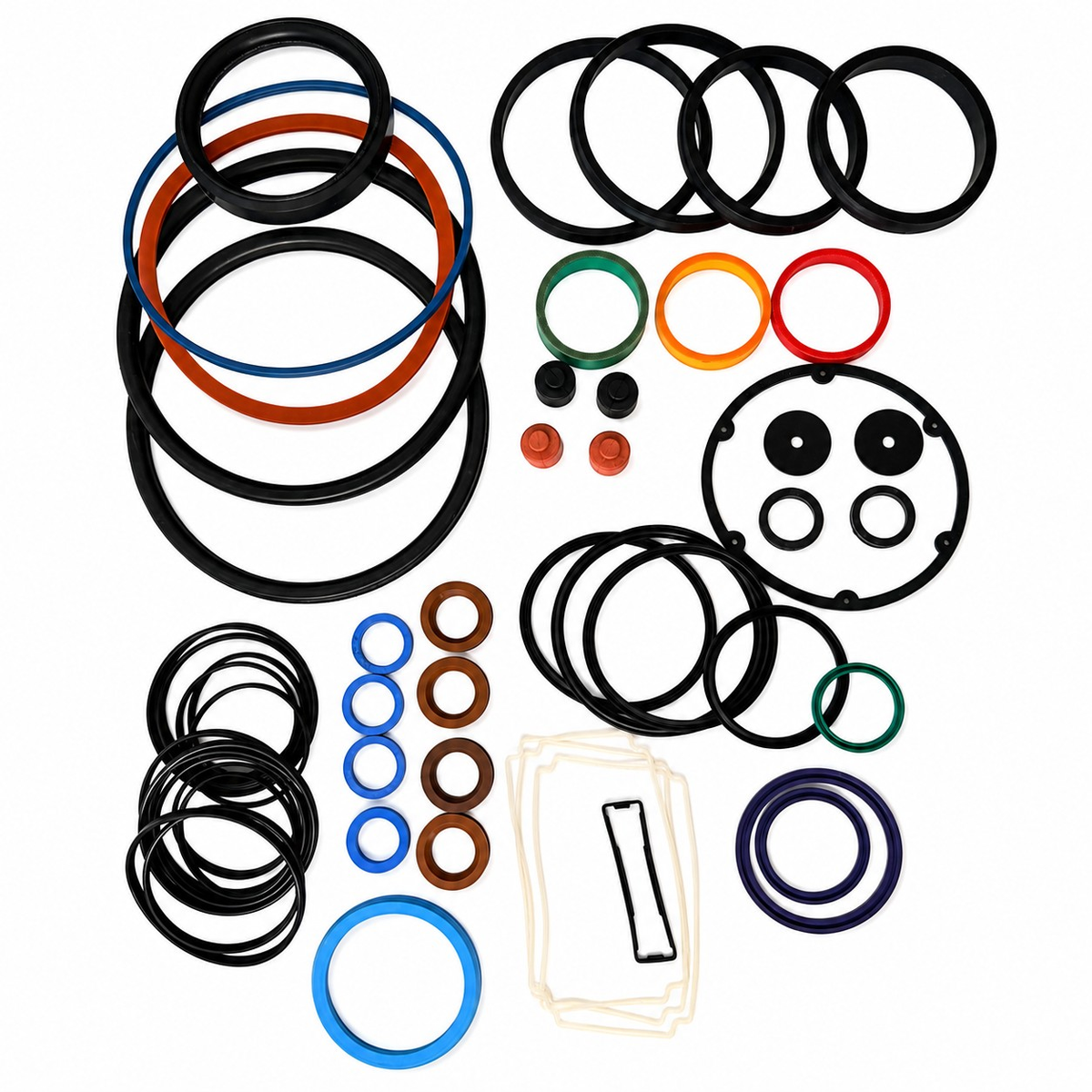

Kit configurations

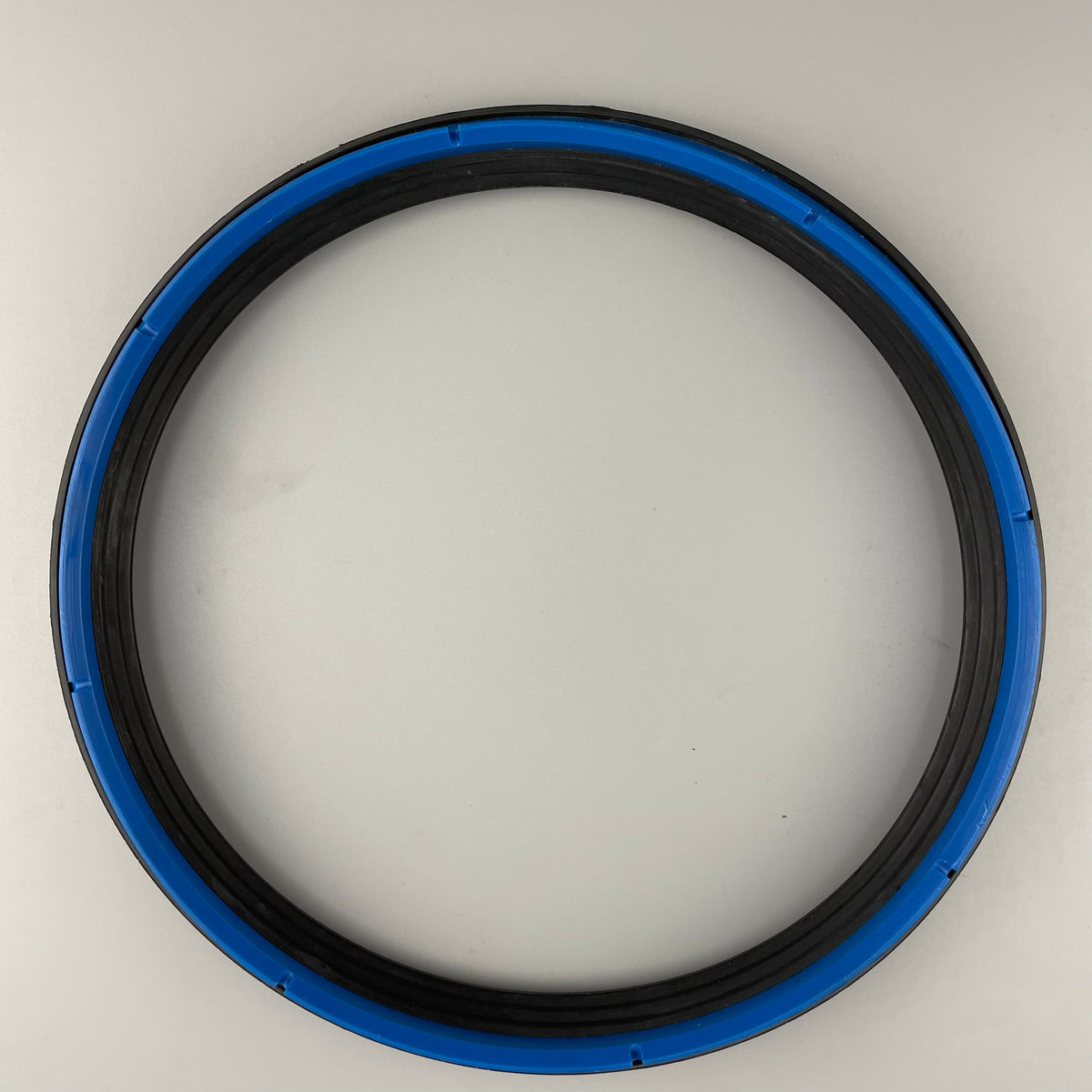

- Rod, piston and wiper seals for the identified cylinder locations

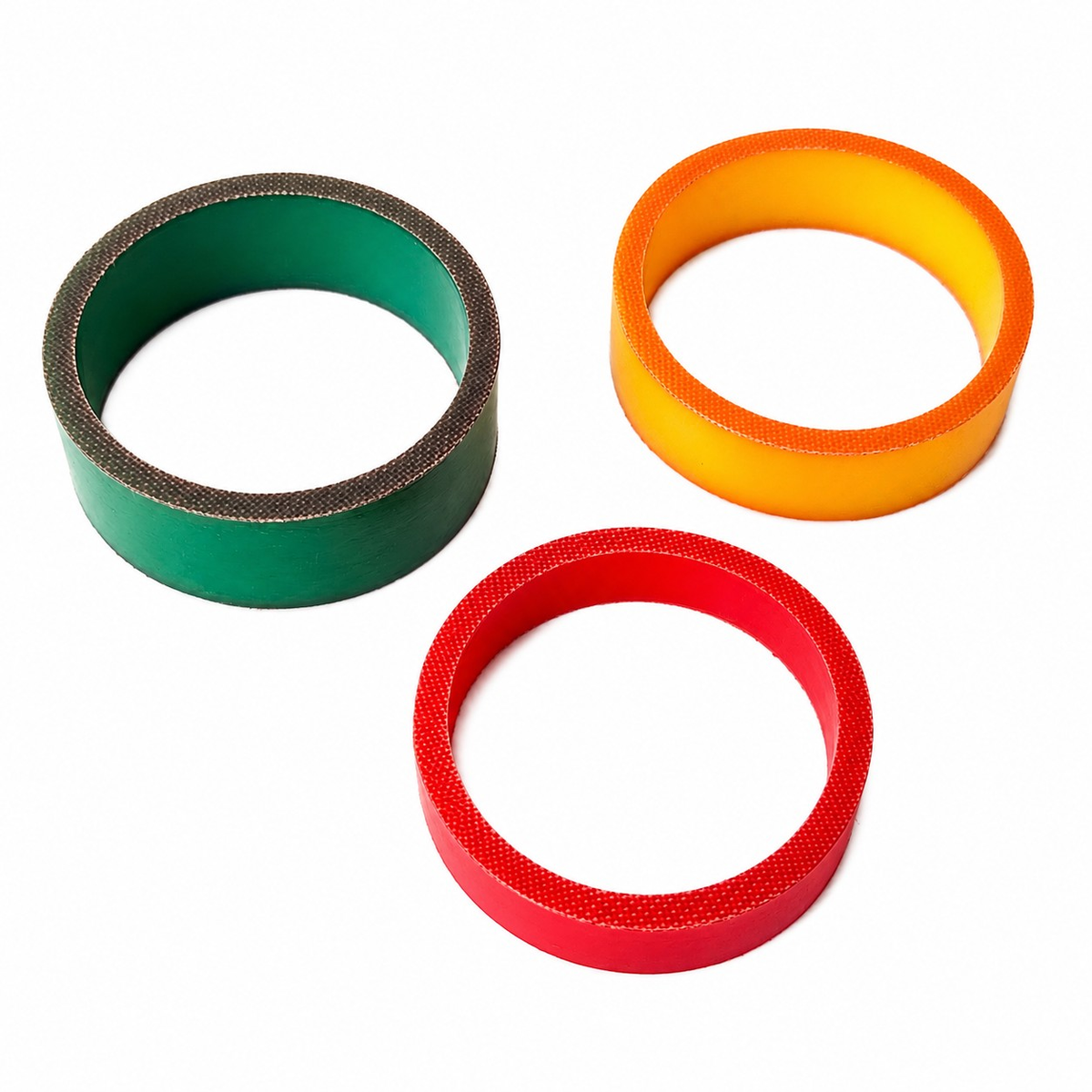

- O-rings, back-up rings, guide or support elements when shown on the bill of materials
- Elastomer and compatible polymer sealing elements reviewed against the supplied part definition
- Replacement sets, prototype kits and production kit quantities
Information needed
- Dimensioned drawing, bill of materials, CAD model, measured sketch or sample
- Cylinder bore, rod diameter, grooves, stroke, pressure, speed and movement
- Hydraulic fluid, operating temperature and mating-surface condition
- Required compounds, hardness, color, support materials and inspection needs when specified
- Equipment reference, kit contents, quantity and packaging requirements
Final kit contents, geometry, materials, tolerances and compatibility are confirmed after the complete equipment and part information is reviewed.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
