Custom High-Expansion Packer Elements — Tool/Bore Configuration
Custom High-Expansion Packer Elements — Tool/Bore ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information

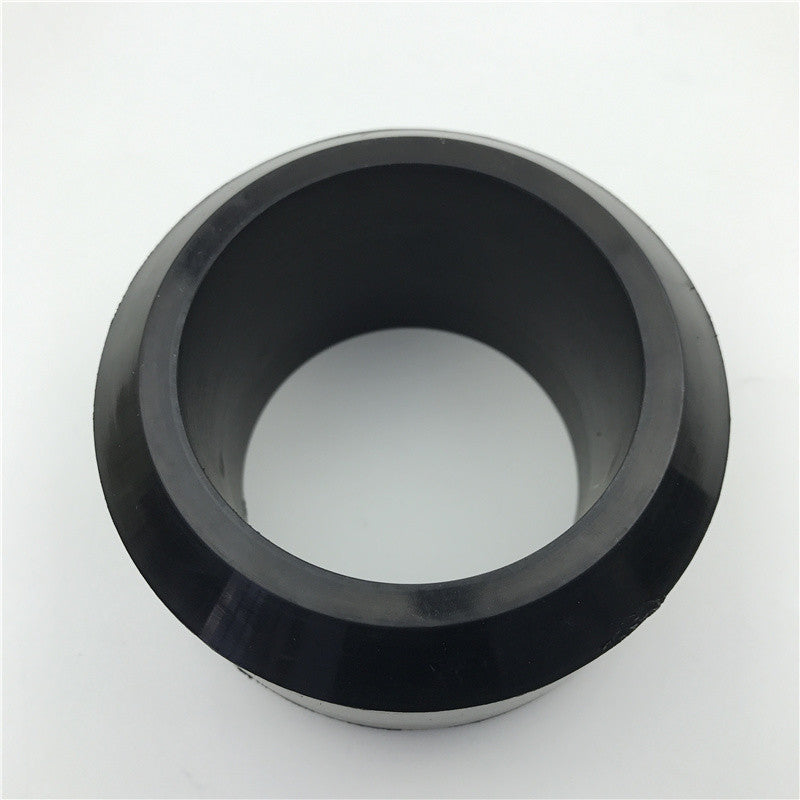

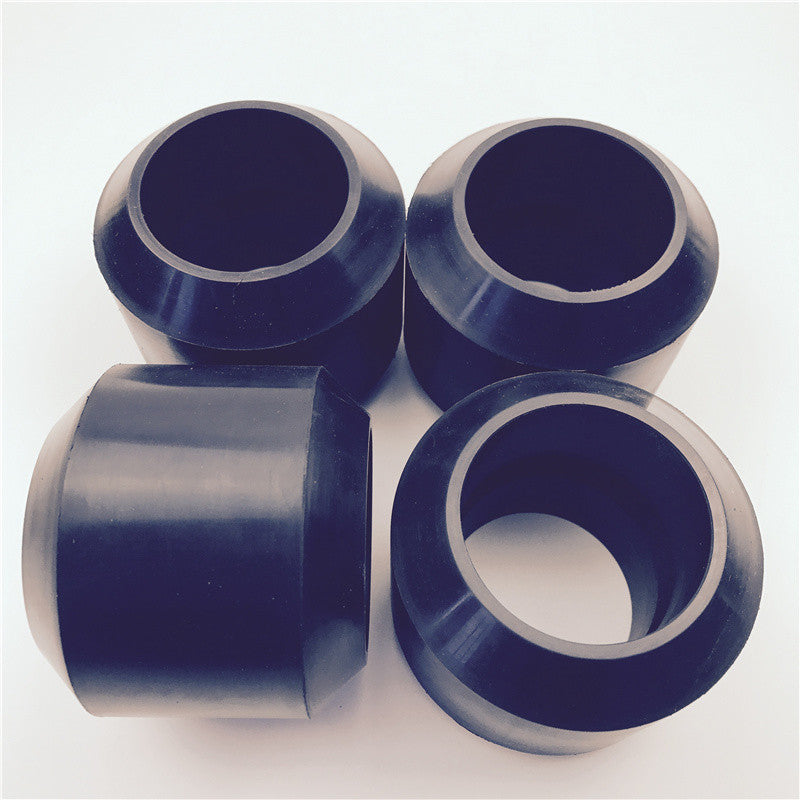

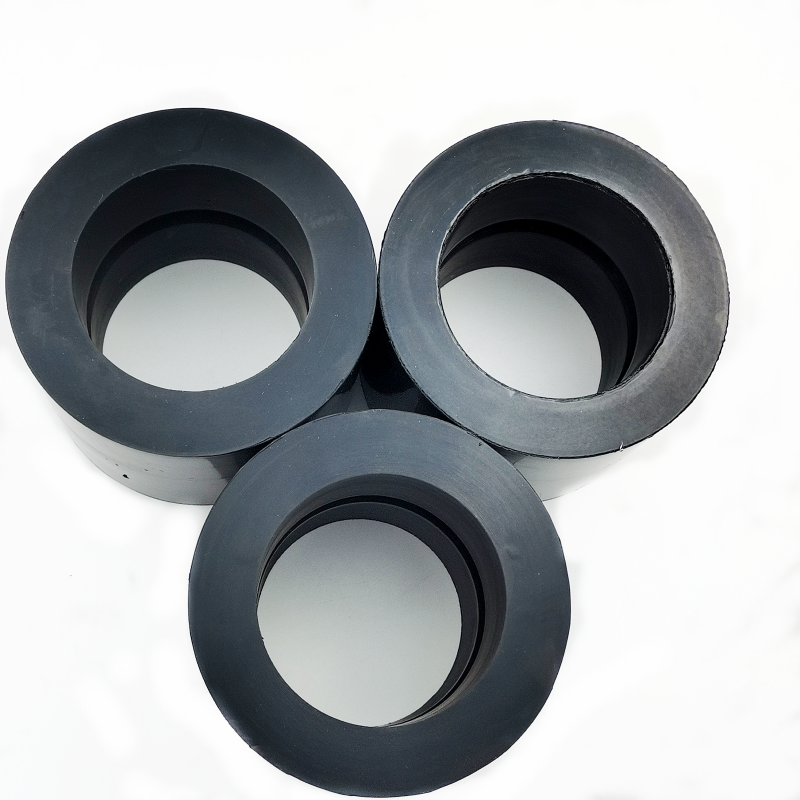

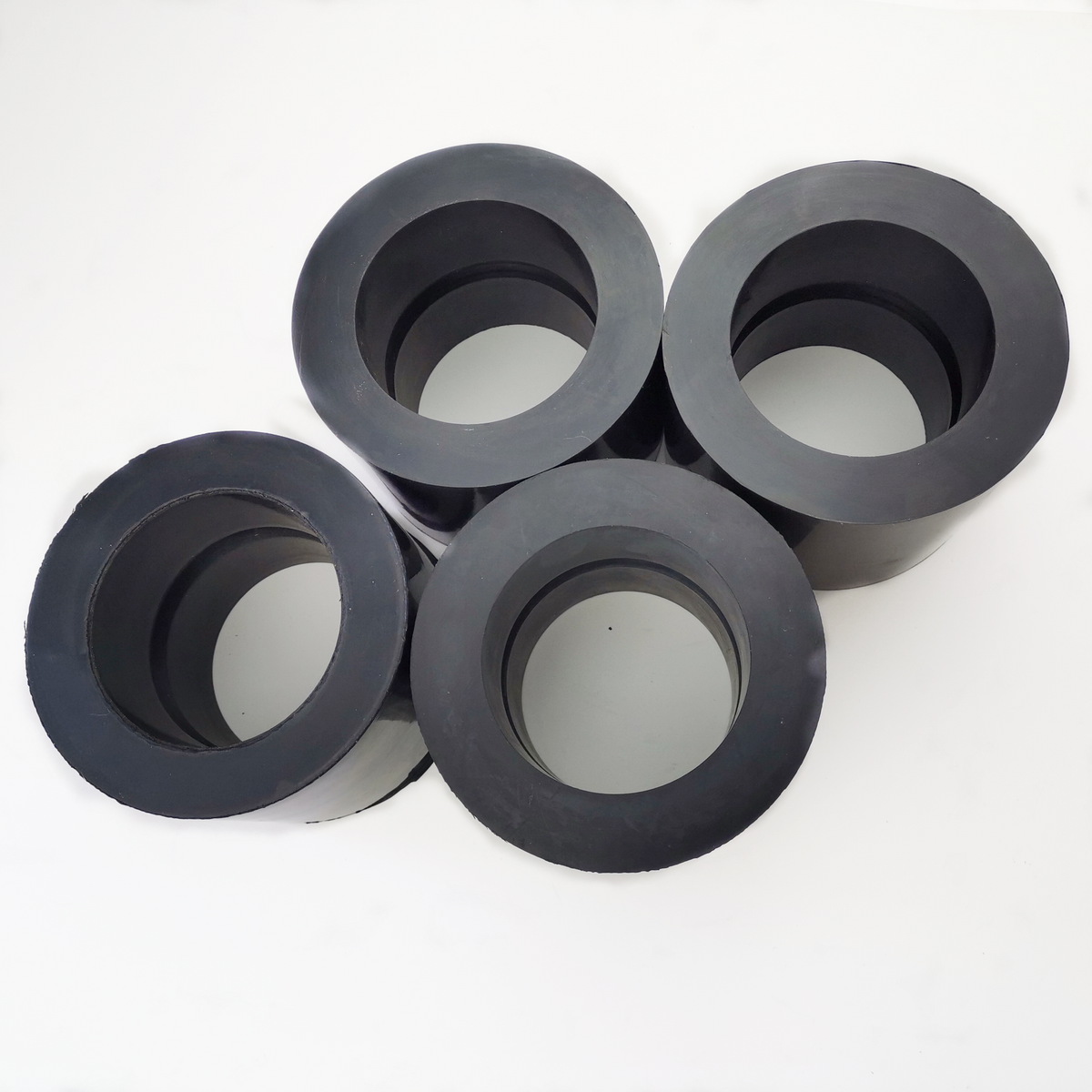

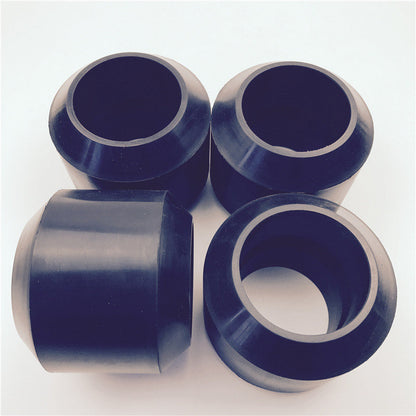

Custom High-Expansion Packer Elements
Royal Way manufactures custom molded elastomer high-expansion profile elements for buyer-defined downhole packer and isolation tools. Quotations are prepared from a controlled element drawing, complete tool and target-bore interfaces, an existing sample or a verified original part reference.
Information for quotation
- Tool manufacturer, model, assembly revision and original element reference when available
- Mandrel outside diameter, element inside diameter, free outside diameter and target bore or casing inside diameter
- Element length, outside profile, end geometry, backup supports, retainers and installed orientation
- Required expansion from the running condition to the set condition and the available axial compression or actuation travel
- Pressure direction, differential loading, fluid, solids content, temperature, setting cycle and retrieval requirement
- Required compound, hardness, reinforcement or bonded insert when already controlled by the specification
- Required quantity, dimensional tolerances, inspection and documentation requirements
High-expansion identifies a configuration family only; it does not establish an expansion ratio, geometry, material, tool fit or service rating. Final construction is confirmed against the complete assembly and operating conditions.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
