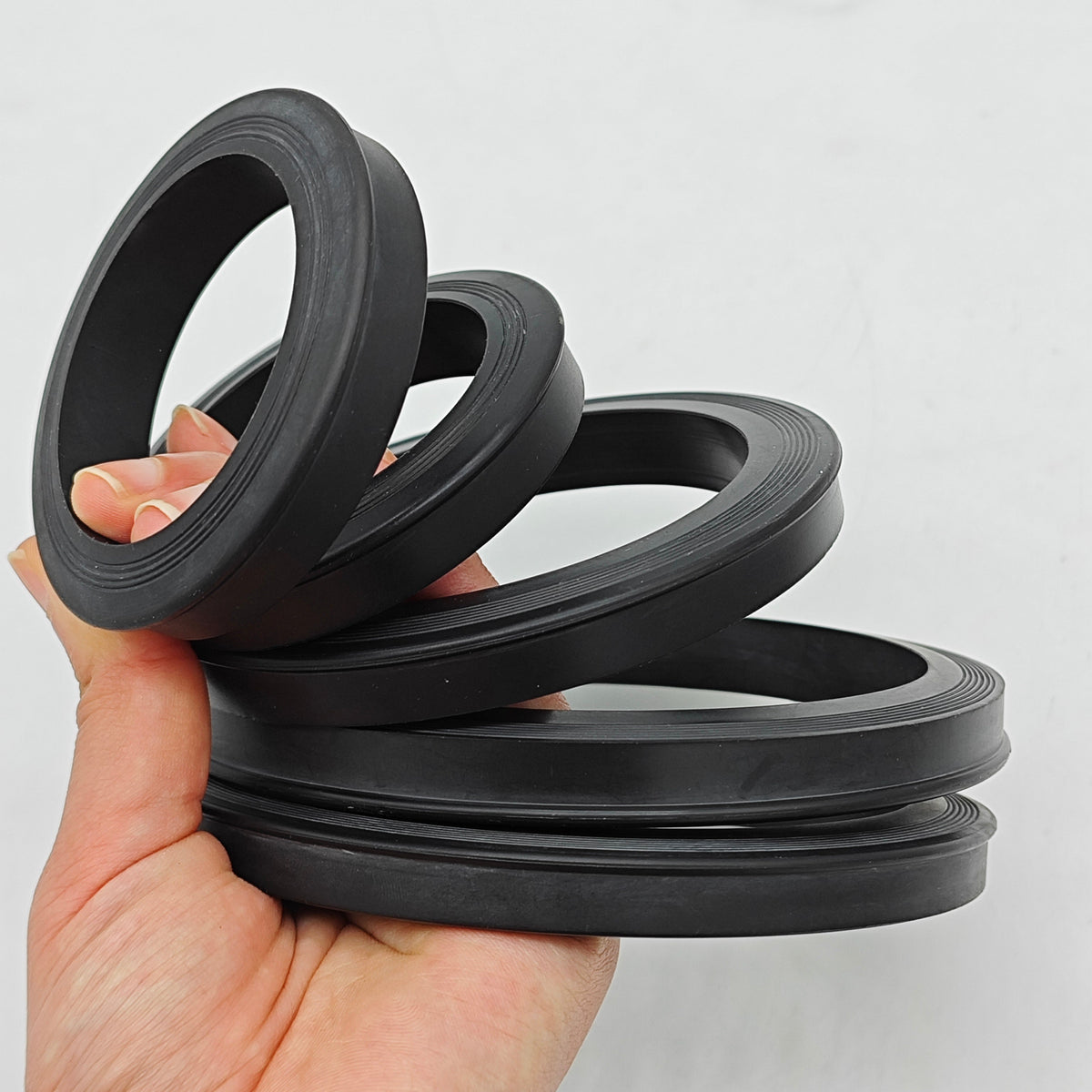

Custom Hammer Union & Flowline Seal Rings
Royal Way manufactures custom elastomer seal rings for buyer-specified hammer-union and flowline-union configurations. Each quotation is based on the actual union figure or connection style, seal profile, housing interface and service conditions; a nominal connection size alone is not a complete specification.
Configurations for review

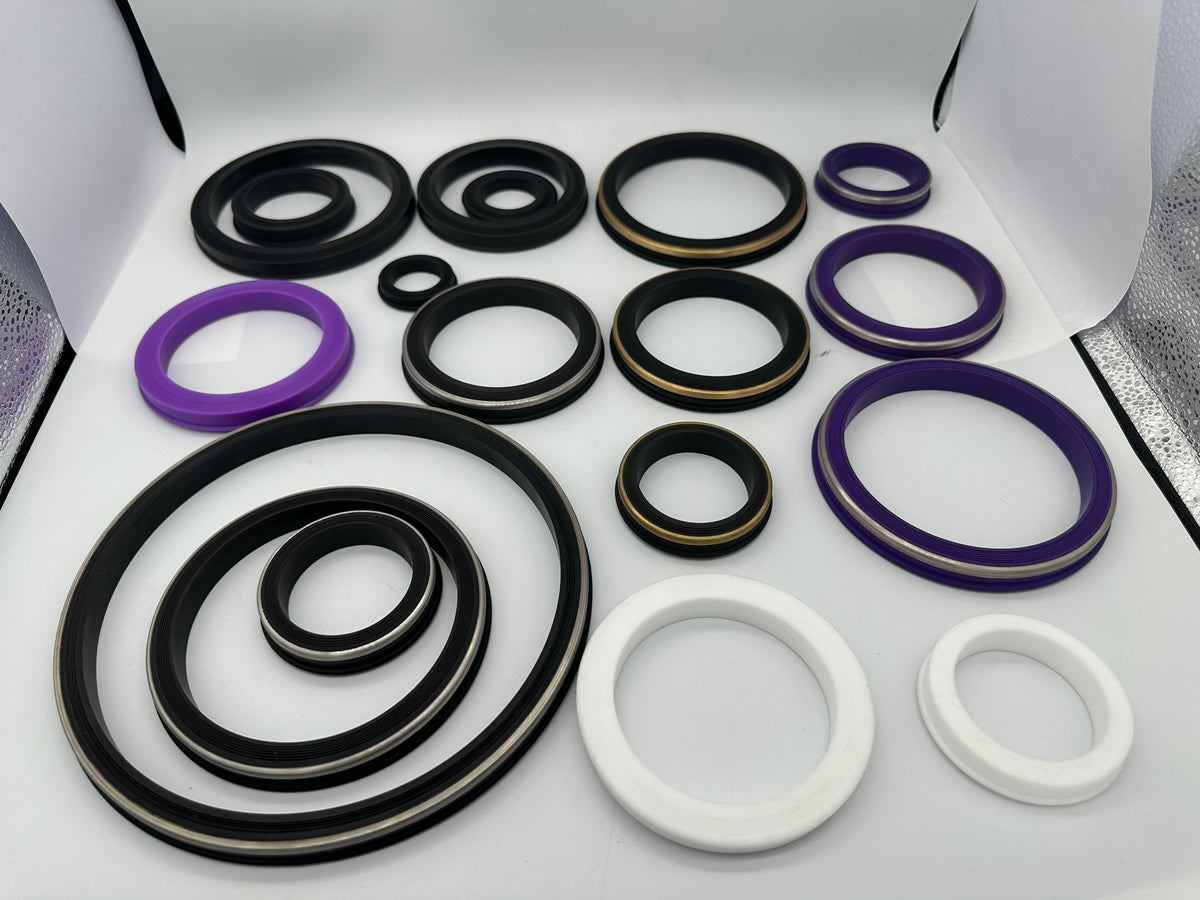

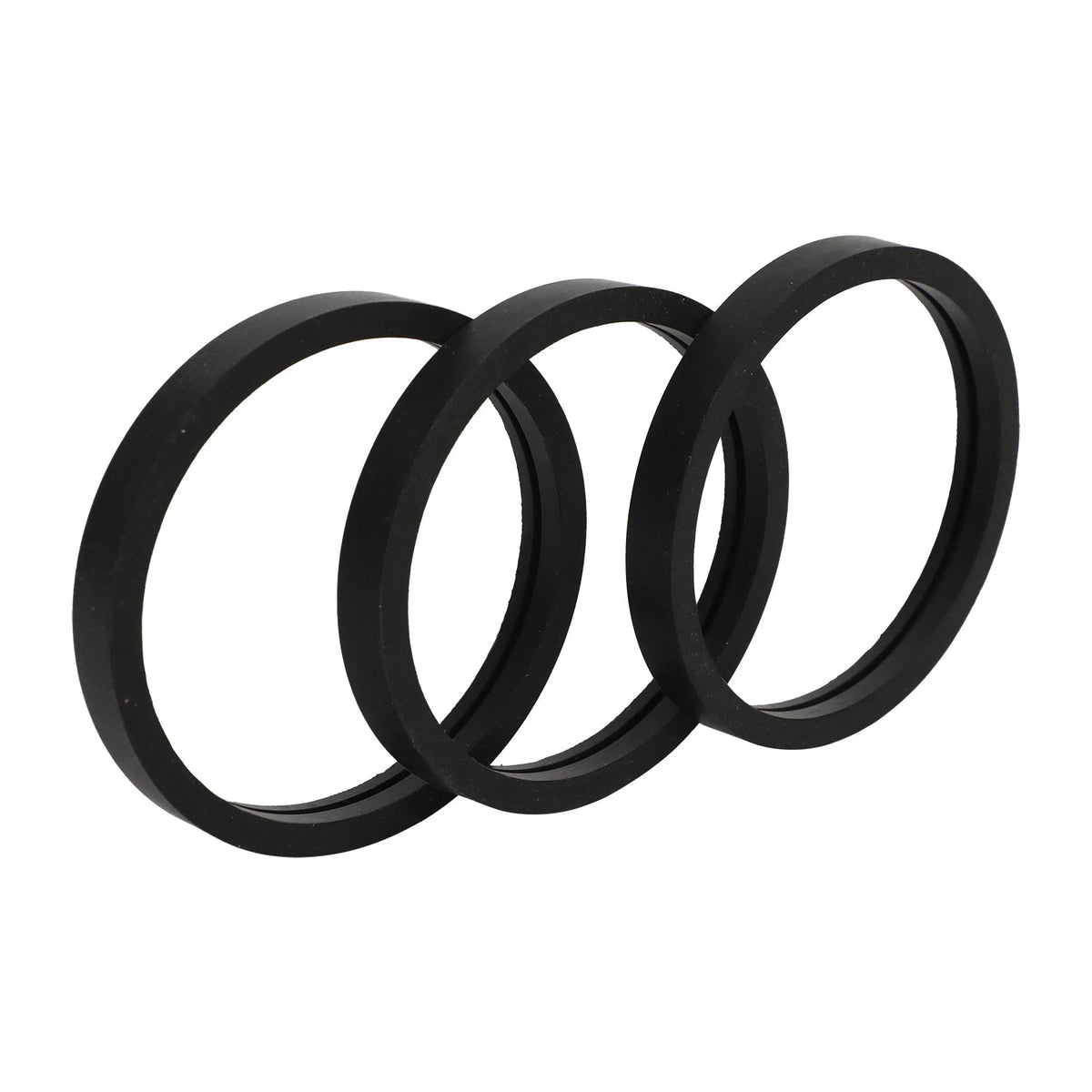

- Drawing-defined O-ring, lip, vee-lip, face-seal or other union-seal profiles
- Custom inside diameter, outside diameter, cross-section, lip geometry and axial height
- Buyer-specified elastomer compound and hardness

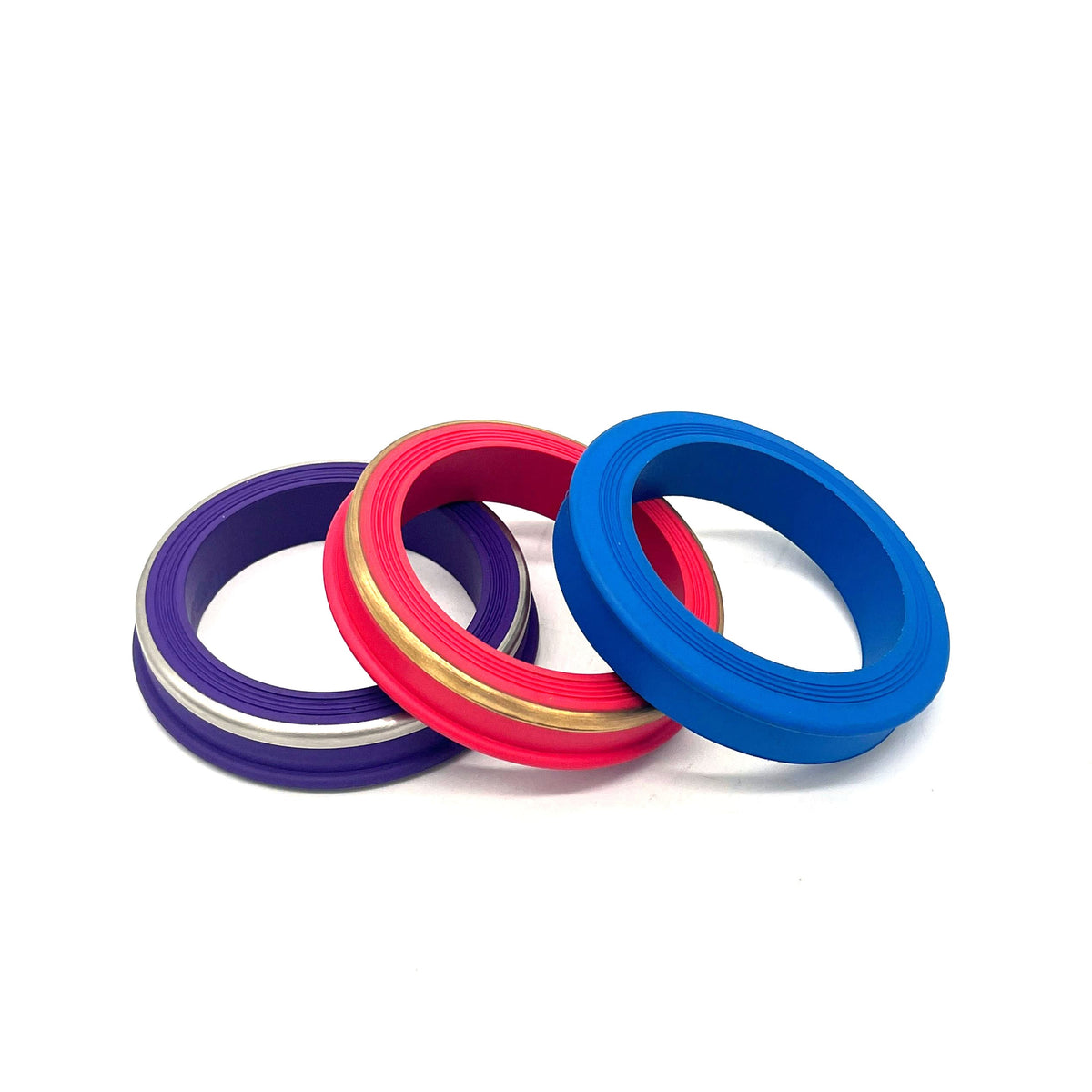

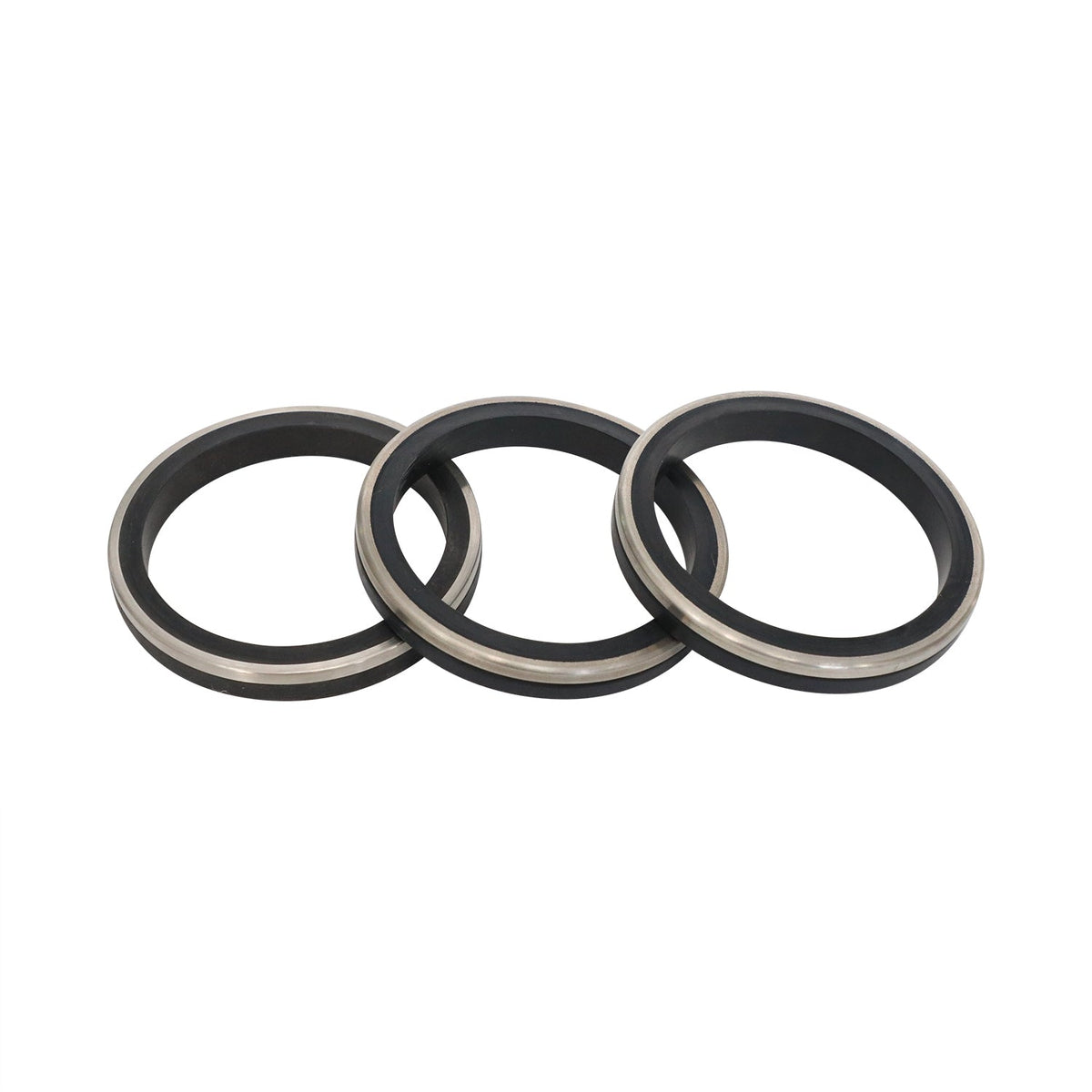

- Specified anti-extrusion or bonded insert interfaces when required by the design
Information for quotation

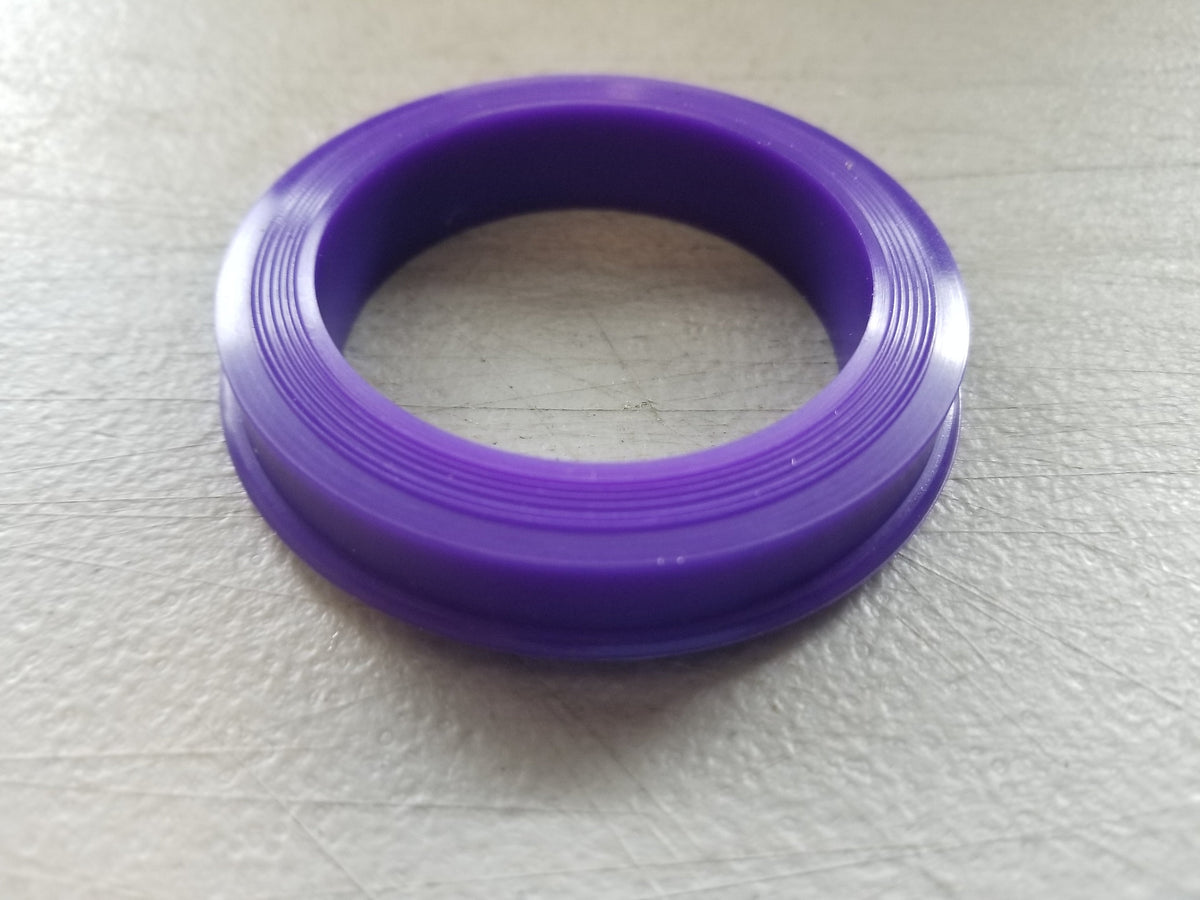

- Union figure, connection style, manufacturer reference when applicable and nominal size
- Dimensioned drawing, groove or housing dimensions, CAD model, measured sketch or physical sample
- Seal profile, inside diameter, outside diameter, height, lip direction and critical tolerances
- Required compound or buyer performance specification when controlled
- Pressure, temperature, transported medium, exposure time, decompression and operating cycle
- Metal or polymer insert material, position and bonding interface when present
- Quantity, prototype requirements, inspection documentation, traceability and packaging requirements
Final geometry, compound, hardness, tolerances, insert construction and application suitability are confirmed after the complete union and service requirements are reviewed.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
