Custom Fabric-Reinforced Rubber Components — Drawing/Layer Configuration
Custom Fabric-Reinforced Rubber Components — Drawing/Layer ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information

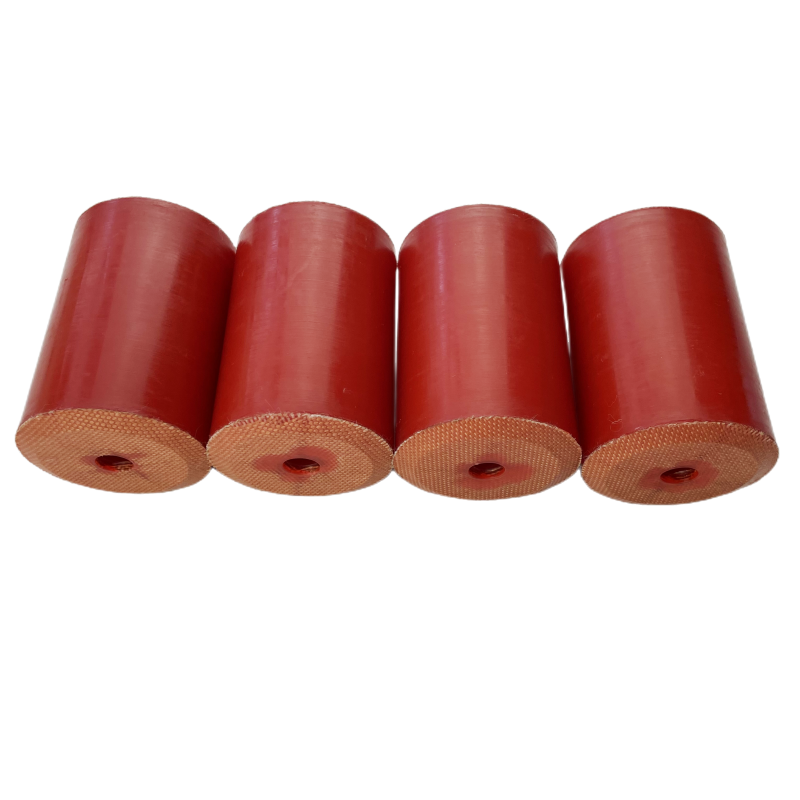

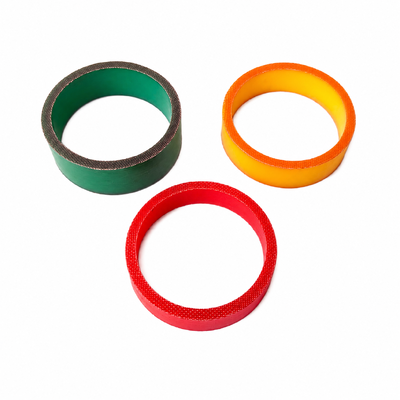

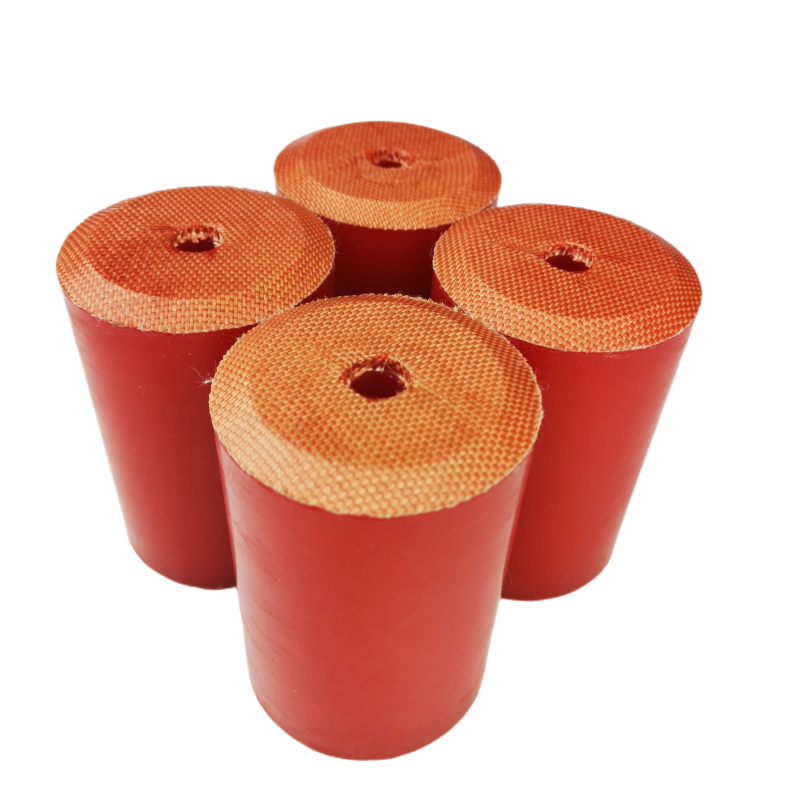

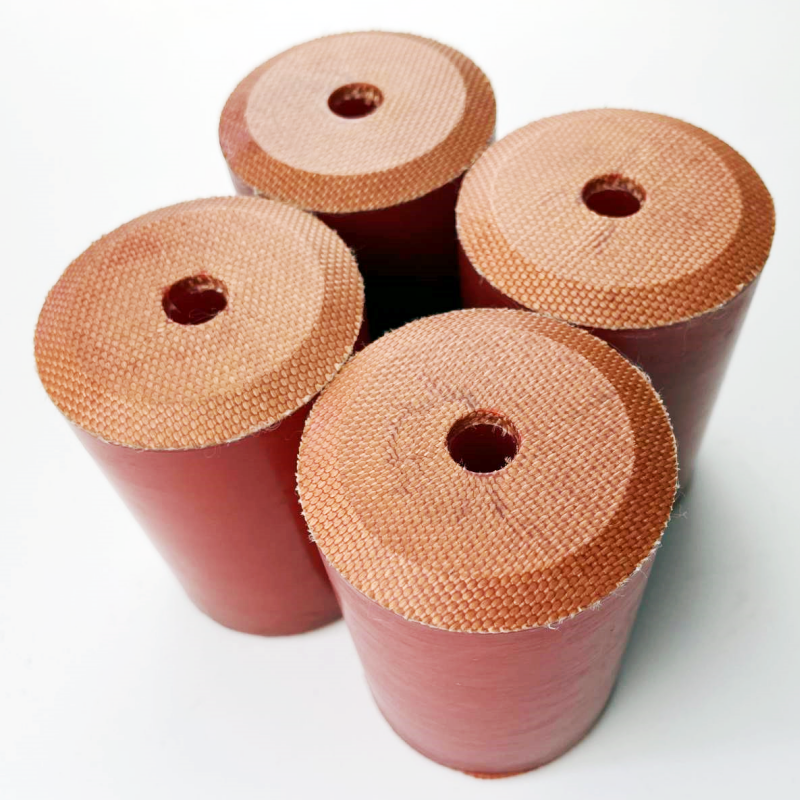

Custom Fabric-Reinforced Rubber Components combine an elastomer profile with a specified fabric or textile reinforcement for drawing-defined sealing, flexible or structural interface requirements.
Define the reinforced construction
Send the complete part drawing, CAD file, physical sample or equipment interface so the rubber geometry and reinforcement layout can be reviewed together.
Information for quotation
- Part drawing, CAD file, physical sample and installed interface
- Rubber profile, dimensions, tolerances and layer or fabric orientation when specified
- Reinforcement material, construction, bonding or coating requirements when specified
- Service medium, movement, pressure or vacuum conditions and environmental exposure
- Compound, hardness, finish, inspection and documentation requirements when specified
- Required quantity and delivery requirements
Final geometry, reinforcement layout, compound and production requirements are confirmed after the complete application information is reviewed. Request a Quote with the available drawing or sample.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
