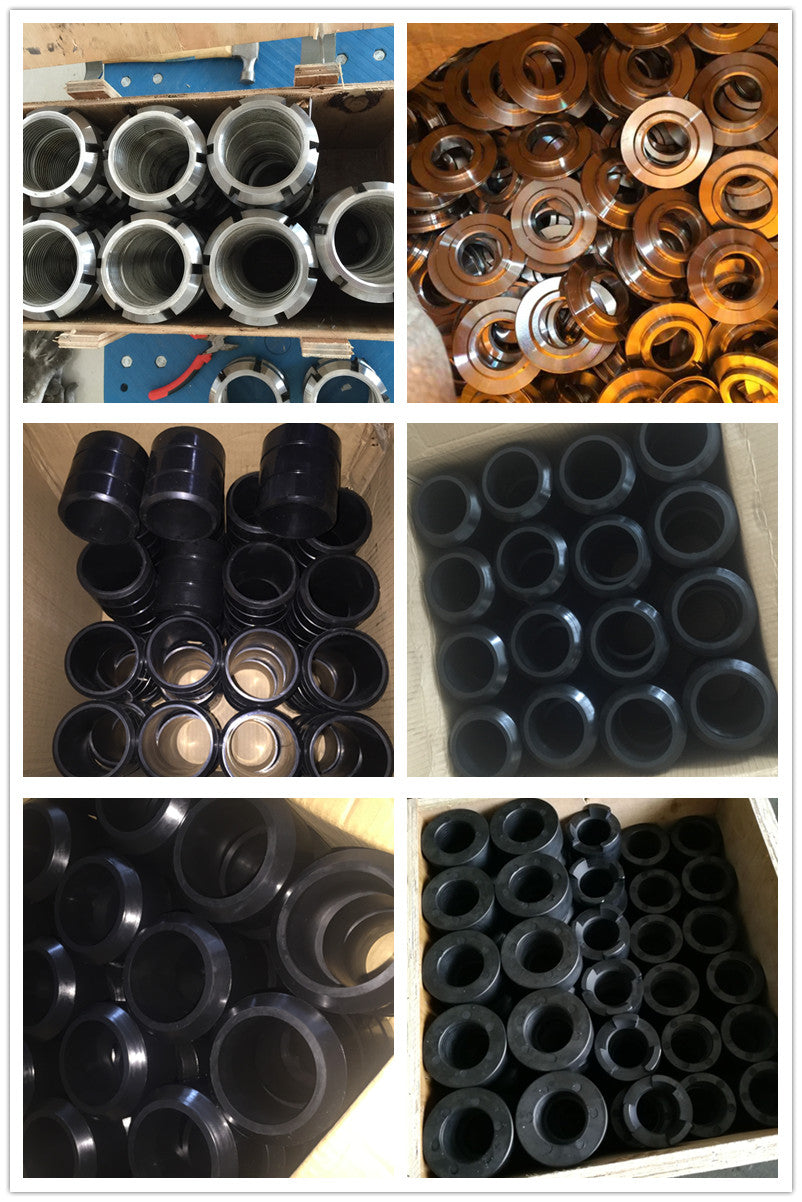

Custom Molded Rubber Packing & Seal Components — Drawing/Sample Configuration

Specifications & Product Information

Custom molded rubber packing and seal components are reviewed against buyer-supplied drawings, samples, or assembly details. Send a drawing or sample showing the required profile, material, hardness and mating interface for quotation.

Configuration review

Provide the component envelope, split or segment layout, holes, grooves, lips, steps, reinforcement and mating interfaces that must be reproduced.

Information needed for quotation

• Existing drawing, dimensional sketch, reference, or physical sample
• Overall dimensions, profile details and permitted tolerances
• Split, hole, groove, lip, step, reinforcement and interface requirements
• Compound, hardness, color, bonding or insert requirements, when specified
• Service medium, movement, pressure and temperature conditions, when applicable
• Required quantity, inspection or documentation requirements and delivery destination

Custom manufacturing review

Royal Way reviews the supplied geometry, molding route, interfaces and inspection scope before quotation. Final identity, materials and production requirements are confirmed with the quotation.

Ordering

Send the drawing or sample together with the intended assembly and service information when available.

Request a quote for Custom Molded Rubber Packing & Seal Components
