Custom Diaphragm Pump Membrane & Seal Kits — Pump/BOM Configuration

Specifications & Product Information

Royal Way supplies customer-configured rubber service kits for diaphragm pumps, built around the specified membrane and the elastomer seals identified for the target pump. Each kit is prepared from the exact model reference, drawing, sample or parts list.

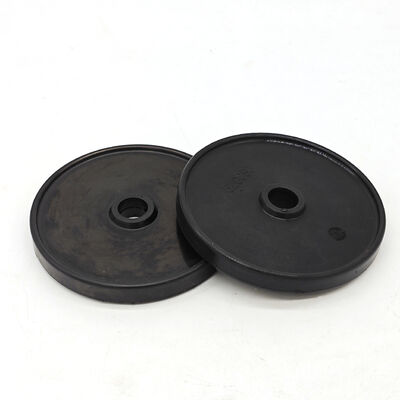

The photograph shows diaphragm examples, not a complete service kit. The seals and quantities included in your kit are agreed from the pump parts list before quotation.

Kit contents controlled by the pump configuration

• Membrane geometry and mounting features confirmed from the required pump version
• O-rings, gaskets and other elastomer seals identified individually by part number or dimensions
• Piece count, packing sequence and replacement scope agreed before production
• Alternative compounds considered only after the fluid and operating conditions are reviewed

Information required for quotation

Please provide the pump manufacturer and model, pump serial or version where applicable, existing part numbers, exploded view or parts list, a complete used kit or individual samples, membrane dimensions, seal dimensions, service fluid, pressure, temperature, cycle rate, quantity, packaging and inspection requirements.

Kit contents and fit are specific to the identified pump configuration. Parts from adjacent models or revisions should not be treated as interchangeable without dimensional and assembly confirmation.
