Custom Molded Wear & Guide Ring Components

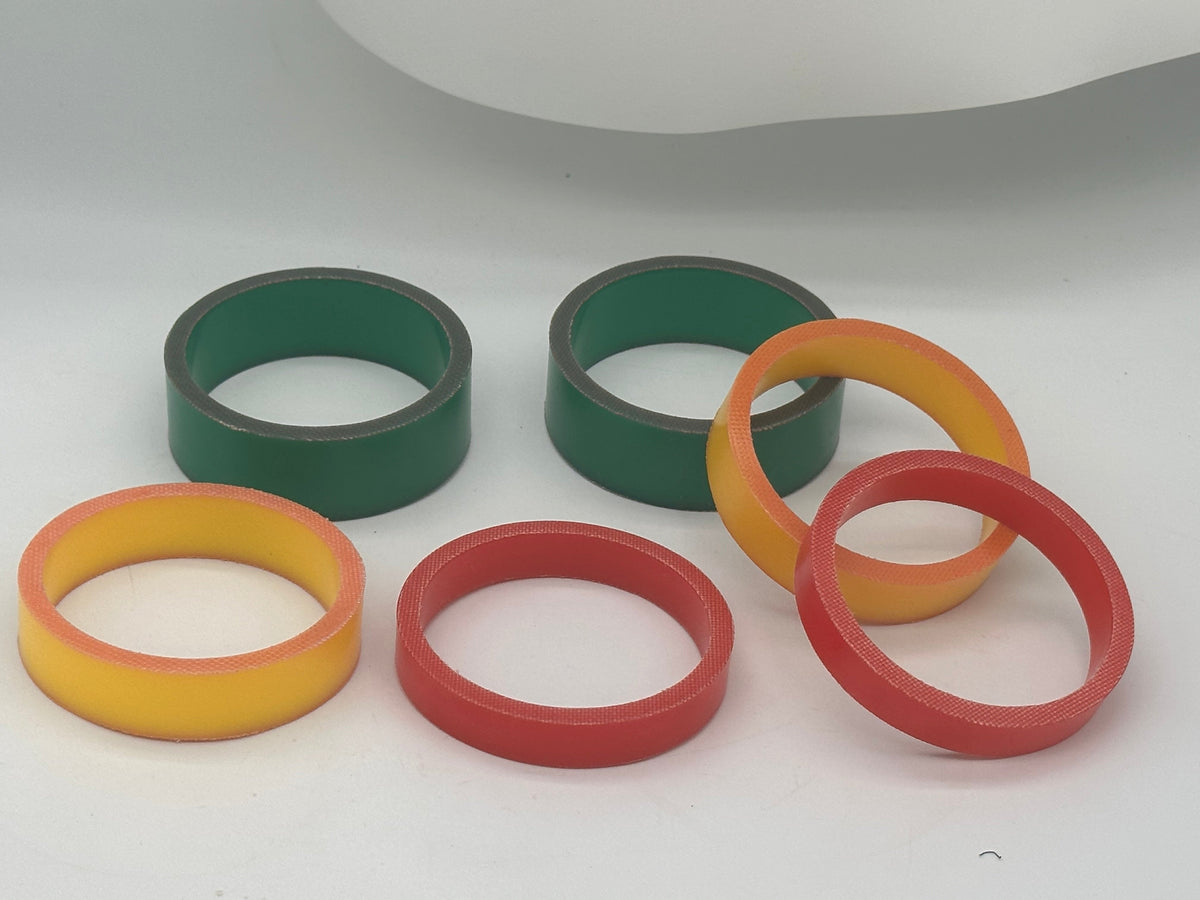

Royal Way reviews custom molded wear rings, guide rings and related annular components made to a buyer's drawing, sample or controlled interface. The current image shows a cylindrical ring profile; the exact material, cross-section and equipment application are confirmed from the supplied part data.
Information for quotation
- Current drawing, physical sample or controlled part reference
- Inside diameter, outside diameter, width, split or solid construction
- Groove, housing, piston or guide interface
- Service medium, temperature, pressure, movement and loading conditions
- Material, hardness, quantity, inspection and packaging requirements
Material, dimensions, tolerances, production route and service suitability are confirmed only after the application and part data have been reviewed.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
