BM / BV / BX / R-Style Swab Cups — Type/Size Configuration
BM / BV / BX / R-Style Swab Cups — Type/Size ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information
BM, BV, BX and R-Style Swab Cups
Royal Way manufactures swab cups for buyer-identified BM, BV, BX and R-style configurations. Quotations are prepared from the exact type code, nominal size, complete cup and carrier dimensions, a controlled drawing or an existing sample.

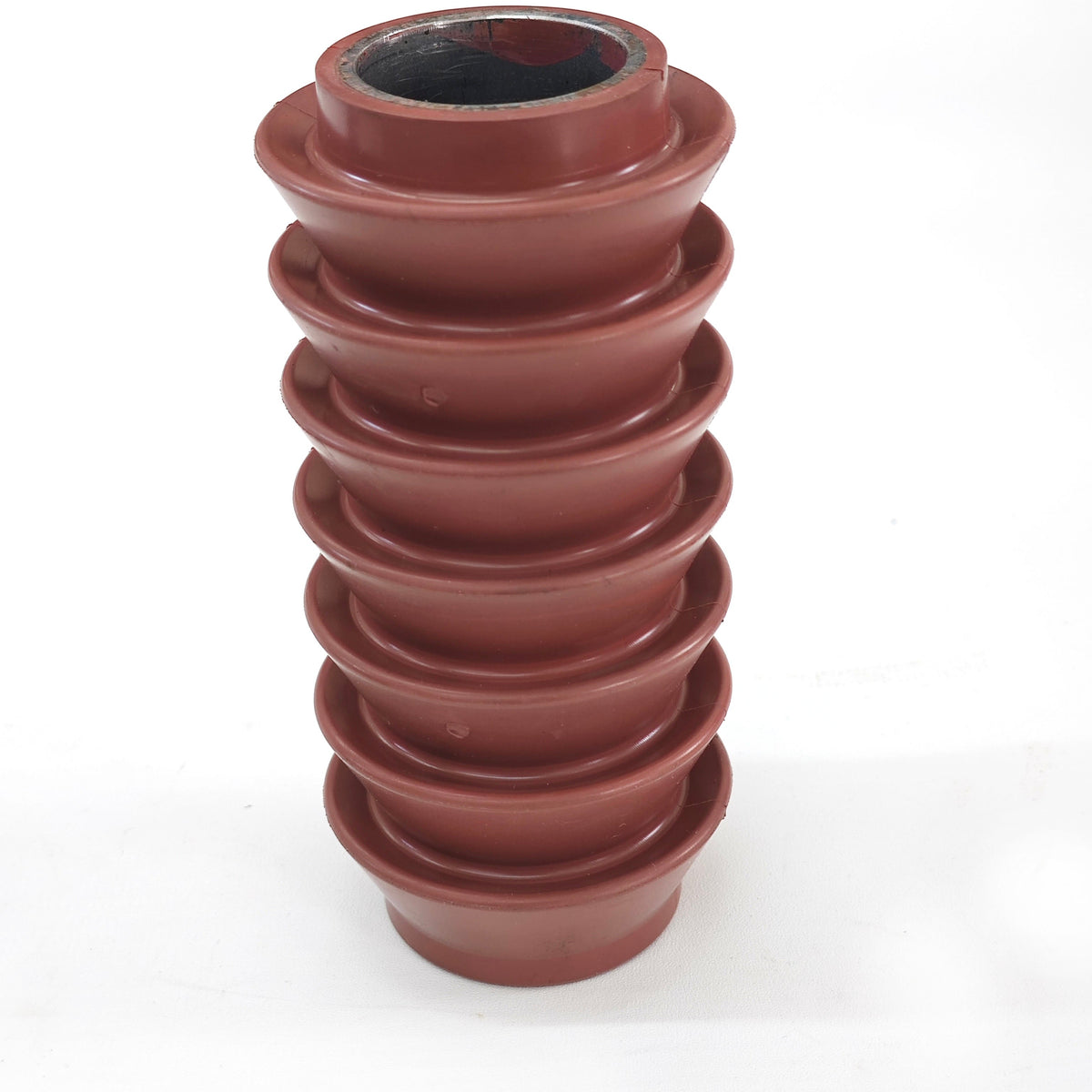

Representative image: The displayed profile is a BV-style company example for orientation only. It does not establish the requested type, dimensions, interchangeability or service rating; the final configuration is confirmed from the buyer's drawing or sample.
Information for quotation
- Required BM, BV, BX or R-style code and nominal tubing or casing size
- Mandrel, cup carrier, core and retaining arrangement
- Cup outside diameter, inside diameter, height, lip profile and orientation
- Required metal, fabric, wire or other reinforcement in the cup construction
- Produced fluid, temperature, pressure direction, tool speed and operating cycle
- Required compound and hardness when already controlled by the specification
- Required quantity, tolerances, inspection and documentation requirements
The type codes are used only to identify the buyer's requested equipment configuration. Final geometry, construction and compound are confirmed after the complete tool configuration is reviewed.
Request a quote with a drawing, CAD file or sample details.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
