AS568-230 O-Ring – 2.484 in ID × 0.139 in CS | NBR, HNBR & FKM

AS568-230 O-Ring – 2.484 in ID × 0.139 in CS | NBR, HNBR & FKM

$0.07 USD
$0.07 USD
Sale Sold out
Taxes included.
Material & Hardness

AS568-230 O-Ring – 2.484 in ID × 0.139 in CS | NBR, HNBR & FKM

Royal Way supplies this standard AS568 size in NBR (Buna-N), HNBR (HSN) and FKM (Viton-type), with 70 and 90 Shore A options for maintenance, repair and production requirements.

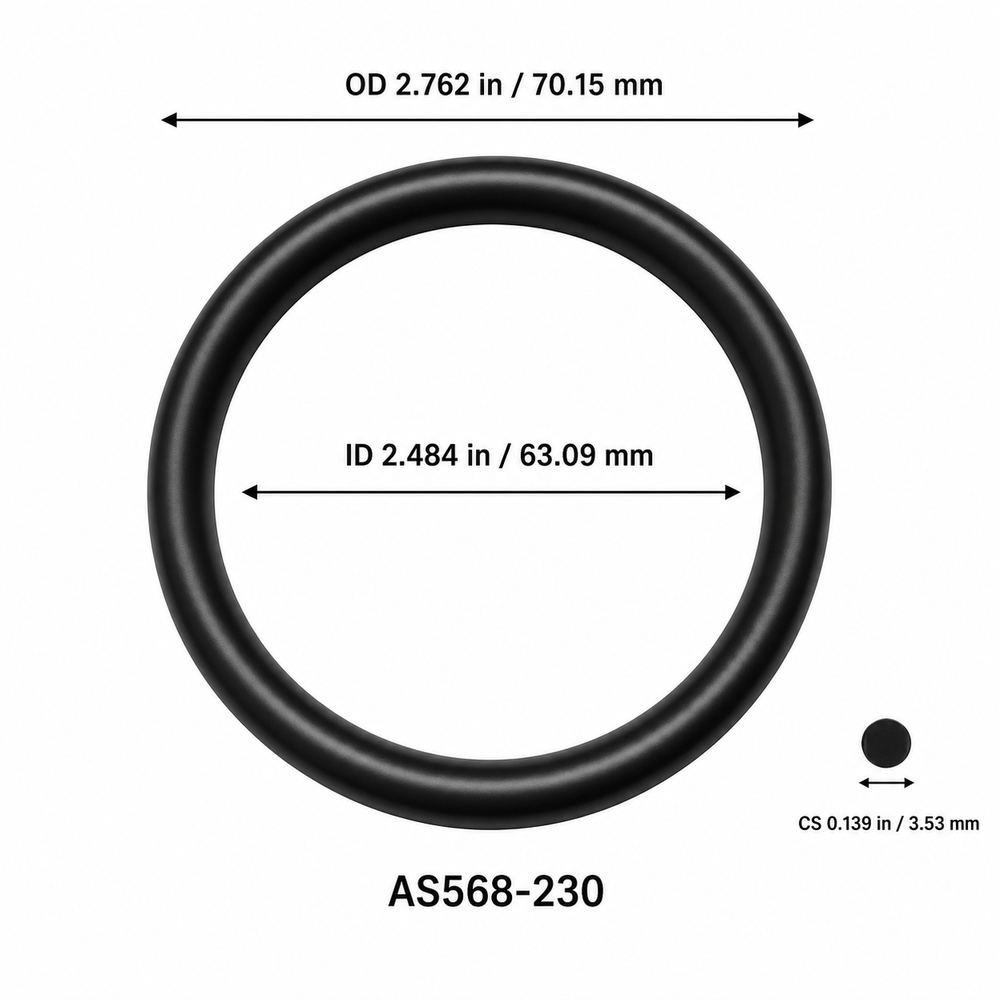

Size Specifications

  • AS568 size: AS568-230
  • Inside diameter (ID): 2.484 in / 63.09 mm
  • Cross section (CS): 0.139 in / 3.53 mm
  • Outside diameter (OD): 2.762 in / 70.15 mm

Material and Hardness Options

  • NBR / Buna-N: commonly selected for petroleum oils and compatible hydraulic fluids
  • HNBR / HSN: improved heat, ozone, aging and mechanical resistance compared with standard NBR
  • FKM / Viton-type: selected for higher-temperature service and broader fluid compatibility
  • 70 Shore A: general sealing flexibility and conformity
  • 90 Shore A: greater extrusion resistance for suitable higher-pressure clearances

Typical Use

Designed for equipment whose gland or groove is specified for AS568-230. Depending on the equipment design, this series is commonly encountered in compatible valves, pumps, hydraulic cylinders, pressure-control equipment and downhole service tools.

Oilfield Application Note

AS568-230 is used by some oilfield customers as a sealing size in compatible Sub and related downhole-tool assemblies. For these matched designs, 90 Shore A NBR is commonly selected for petroleum and hydraulic-fluid service, while 90 Shore A FKM may be selected when higher temperature or broader fluid compatibility is required. This is an application example, not an OEM fit guarantee; verify the groove, mating dimensions, pressure, temperature and fluid before ordering.

Ordering and Fit Verification

An AS568 dash number defines size, not universal equipment compatibility. Confirm groove dimensions, squeeze, stretch, clearance, pressure, temperature, fluid compatibility and backup-ring requirements before ordering or installation.

Material Options

Available materials include Buna-N / NBR, HSN / HNBR, and FKM / Viton®-type compounds.

Buna-N / NBR is the most common material for general oilfield O-rings and sealing rings. It is suitable for oil, water, drilling fluid, and standard industrial sealing applications.

HSN / HNBR is used when better heat, abrasion, aging, and sour gas / H2S resistance is required. It is commonly selected for more demanding oilfield service.

FKM / Viton®-type provides better high-temperature and chemical resistance for selected oils, fuels, and chemical media.

Standard hardness is usually 90 Shore A unless otherwise specified. Please confirm size, hardness, material, groove dimensions, and service conditions before ordering.

Applications

Used for oilfield O-ring and sealing ring applications, including FIG 206 sealing rings, flowline equipment, repair kits, valve service, pressure pumping equipment, well service tools, and general industrial sealing applications.

Bulk Order & Custom Quote

Standard AS568 sizes can be ordered online. For carton quantities, custom materials, special hardness, non-standard sizes, private labeling, or custom packaging, please send us the size, material, hardness, application, and quantity.

Compatibility Notice

AS568 sizes, FIG references, and equipment names are used for size and compatibility reference only.

Please confirm final fit against groove dimensions, equipment drawings, material requirements, and service conditions before ordering.

View full details

Bulk O-Rings and Sealing Rings

Standard AS568 sizes can be ordered online. For carton quantities, custom materials, special hardness or non-standard sizes, please send us the size, material, hardness, application and quantity.

Bulk packaging and private labeling are available upon request.
