7 in V-Type Tubing Swab Cup — Size/Service Configuration
7 in V-Type Tubing Swab Cup — Size/Service ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information
7 in V-Type Tubing Swab Cup

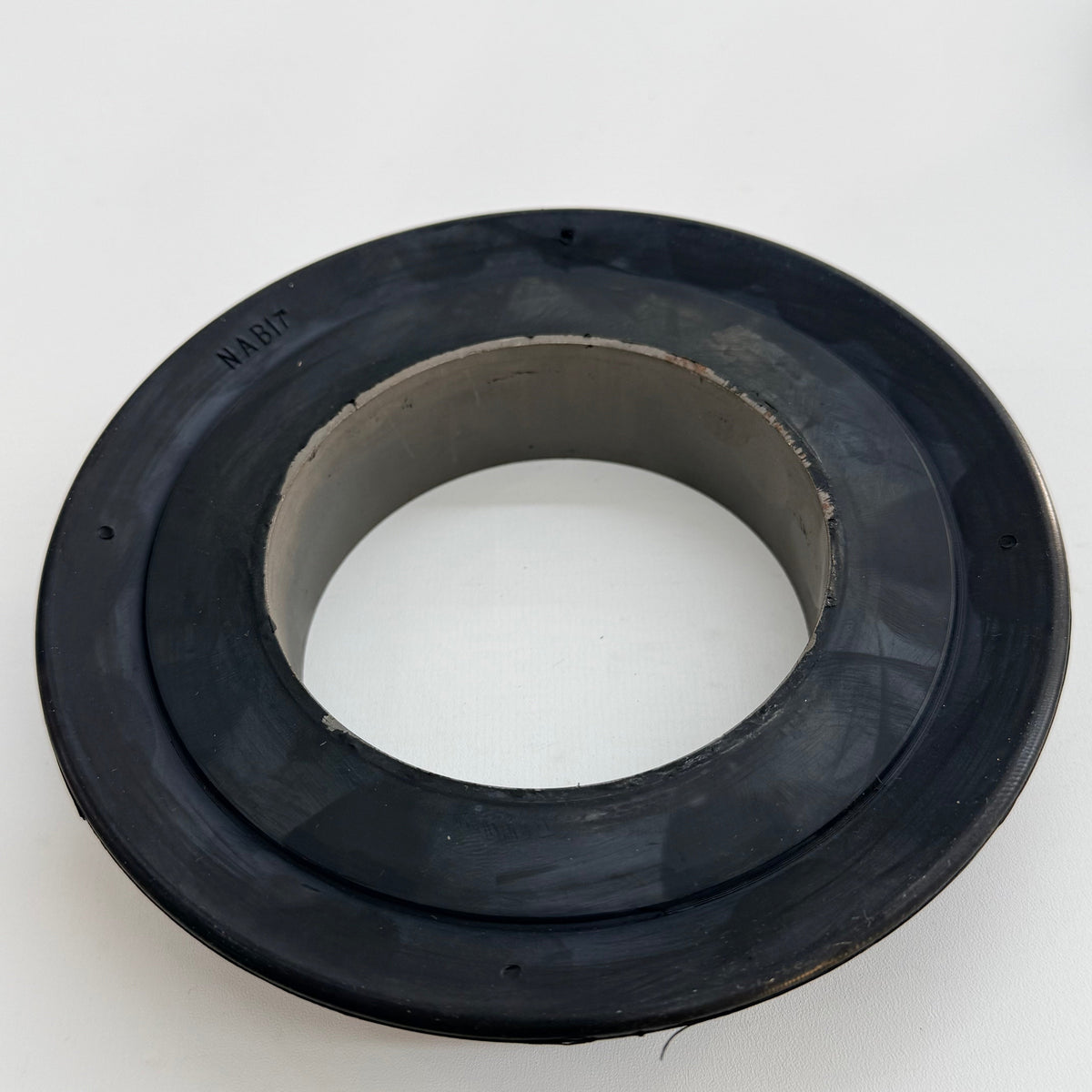

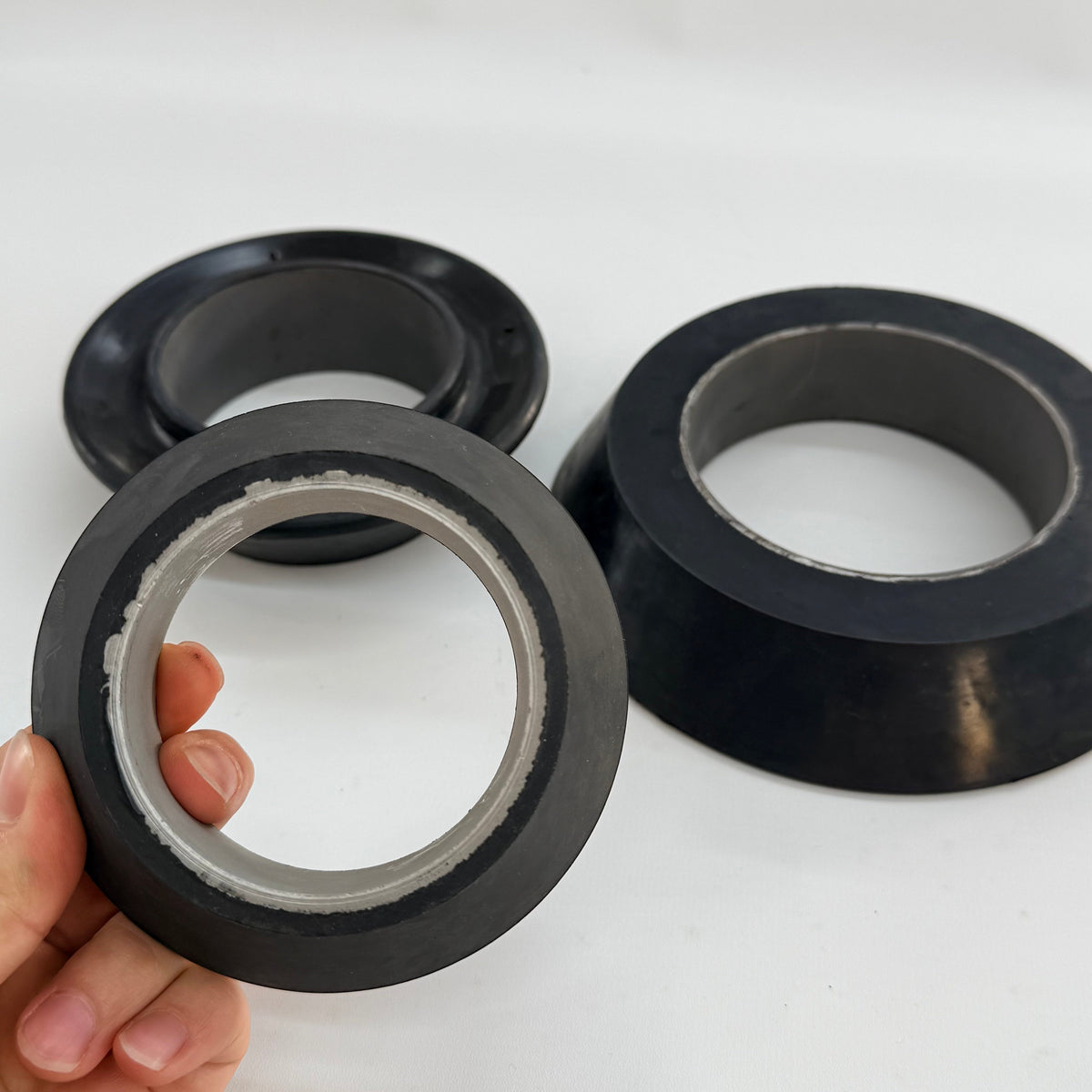

Royal Way reviews 7 in V-type tubing swab cup configurations for buyer-defined tubing, casing and swabbing assemblies. Company reference images show a V-type cup profile with a metal inner core; final geometry and fit are confirmed from a controlled drawing, complete dimensions or an existing sample.
Information for quotation
- Tubing or casing reference, drift and actual inside diameter
- Mandrel, core, sleeve or bushing interface and retaining arrangement
- Cup outside diameter, bore, overall height, lip profile and installed orientation
- Core material, wall or sleeve geometry and all mating dimensions
- Well fluid, solids content, temperature, pressure direction, running speed and expected load range
- Required compound, hardness, quantity, tolerances, inspection and documentation requirements
V-type naming identifies the requested profile family only; it does not establish dimensions, construction, equipment fit, OEM authorization or service rating. Final configuration is confirmed during technical review.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
