7 in FIG 602/1502 Hammer Union Seals — Material/Backup Configuration
7 in FIG 602/1502 Hammer Union Seals — Material/Backup ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information

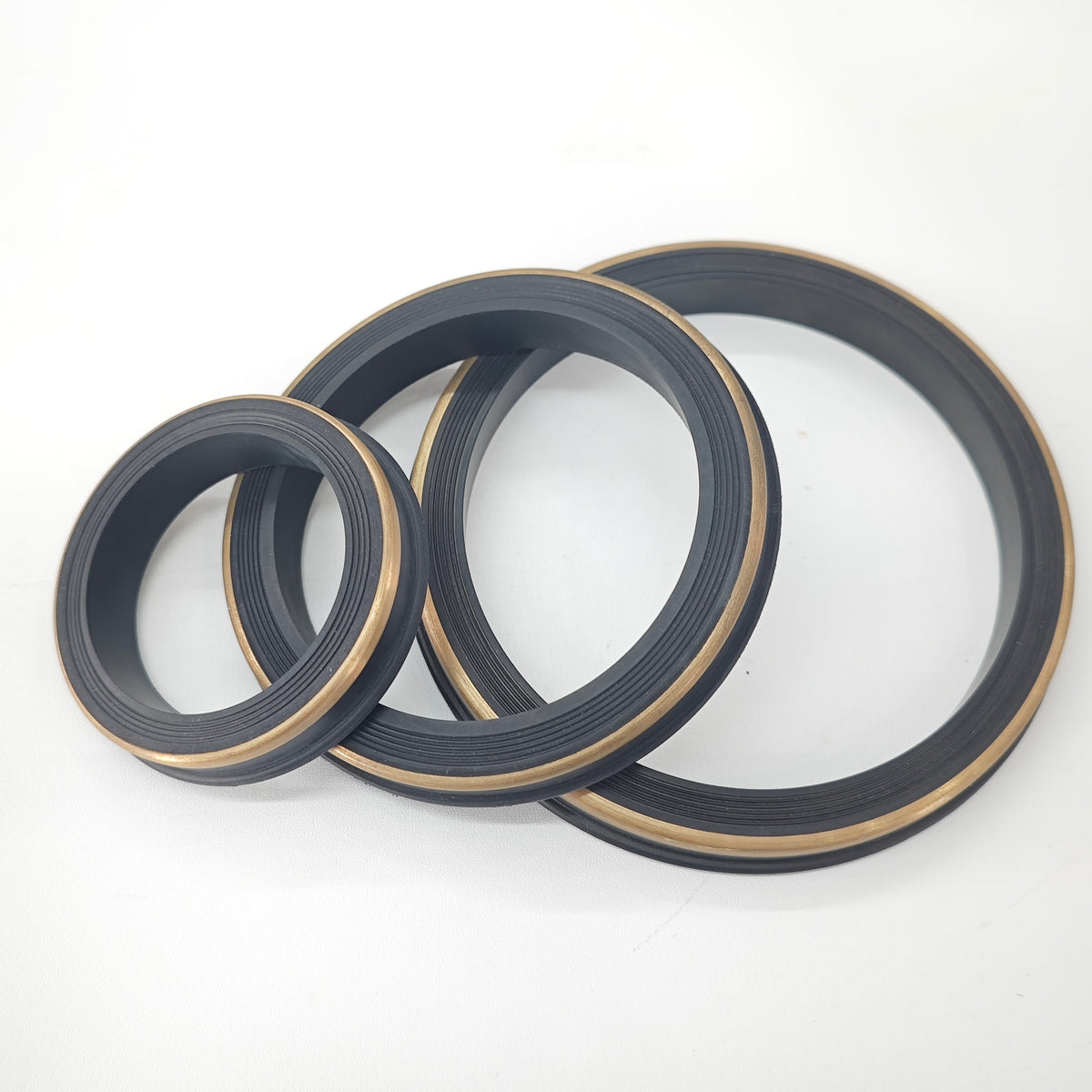

7 in FIG 602/1502 Hammer Union Seals
Royal Way reviews 7 in FIG 602 or FIG 1502 hammer union seal configurations for compatible flowline equipment using the union reference, drawing or sample.
Configuration for quotation
- FIG 602 or FIG 1502 union and pressure-service reference
- Seal profile, backup or anti-extrusion ring interface and groove
- Required compound, hardness, backup-ring material and quantity
- Drawing, sample, inspection requirements or original part reference
- Service medium, pressure, temperature, movement and operating conditions
The 7 in and figure references do not establish interchangeability, a fixed compound, hardness, temperature range, pressure rating or guaranteed fit. Final configuration and suitability are confirmed after the complete union and application data are reviewed.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
