4-1/2 in Sand-Service Swab Cup
4-1/2 in Sand-Service Swab CupRequest a Quote · Drawing and sample review
Specifications & Product Information

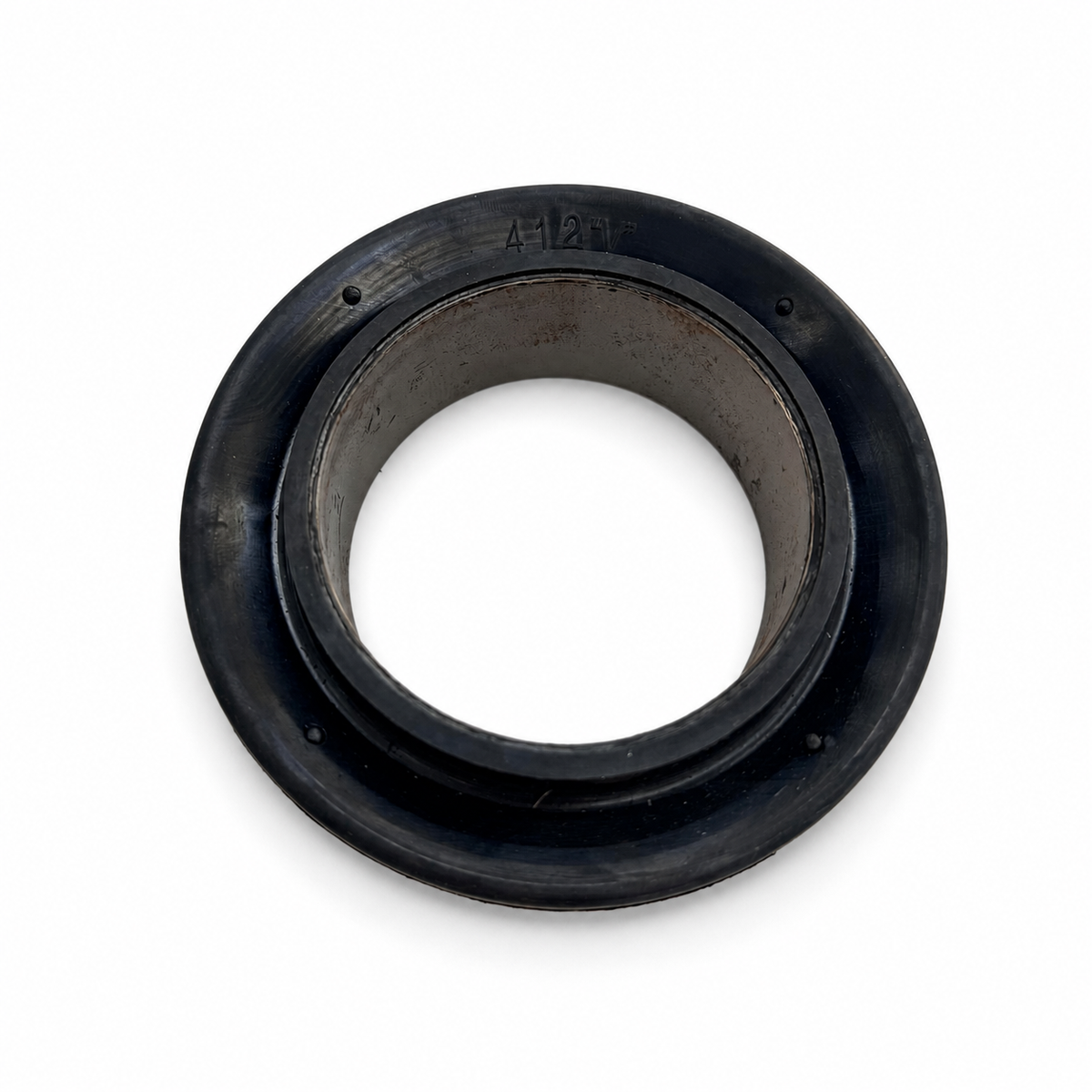

4-1/2 in Sand-Service Swab Cup is a Royal Way molded sealing component for tubing and casing swabbing, fluid lifting and related well-service assemblies.
Catalog reference part 57467 identifies this product for quotation. Confirm the tool, mandrel and tubular dimensions before ordering.
Catalog reference
- Profile: Sand-Service casing swab cup
- Reference part: 57467
- Catalog outer diameter: 4.062 in
- Catalog inner diameter: 2.420 in
- Referenced casing sizes: 4-1/2 in or 4-3/4 in; final fit is confirmed from the tool, mandrel and tubular dimensions
Application and selection
Use this swab cup when replacing or sourcing a component for a known tubing, casing or mandrel assembly. Royal Way can review the part reference, drawing, measured interface or removed sample to help define the required profile.
Information needed for quotation
- Tool, mandrel, tubing or casing reference
- Measured tubular ID/OD and interface dimensions
- Drawing, revision or clear removed-sample photographs
- Required component scope, including any insert or reinforcement
- Service medium, temperature and pressure envelope
- Compound or hardness requirement, if specified
- Required quantity, inspection and documentation scope
Request a Quote
Price, final profile geometry, material, hardness, fitment, ratings, service limits, performance, carton quantity, unit shipping weight and lead time will be confirmed in the quotation and order documents.
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
