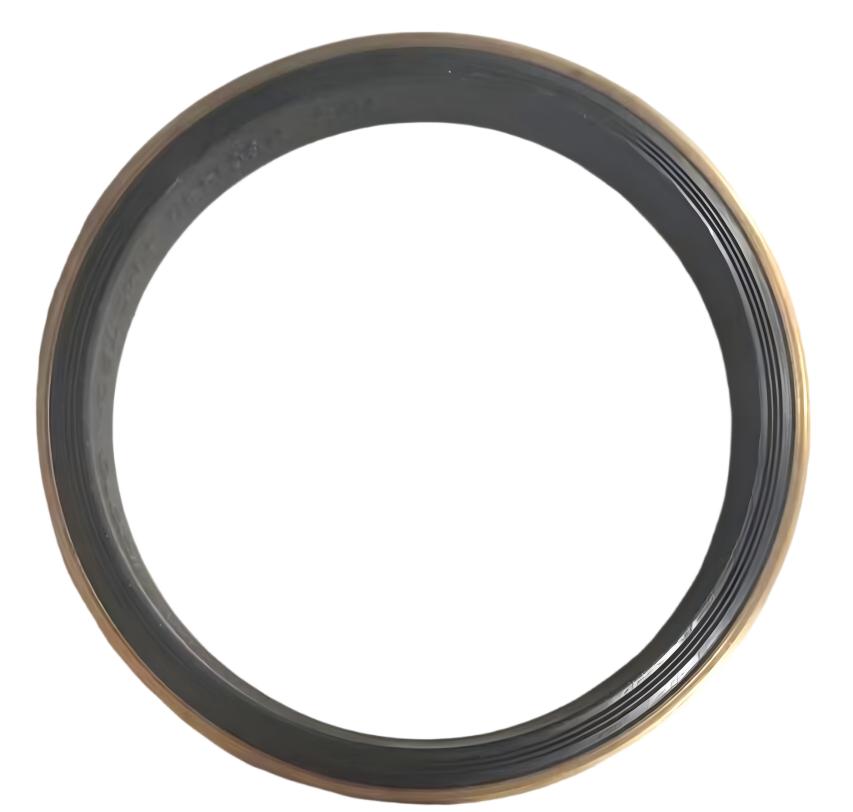

• 3 inch FIG 1505 Hammer Union Seal
  • 3 inch FIG 1505 hammer union seal with brass anti-extrusion ring

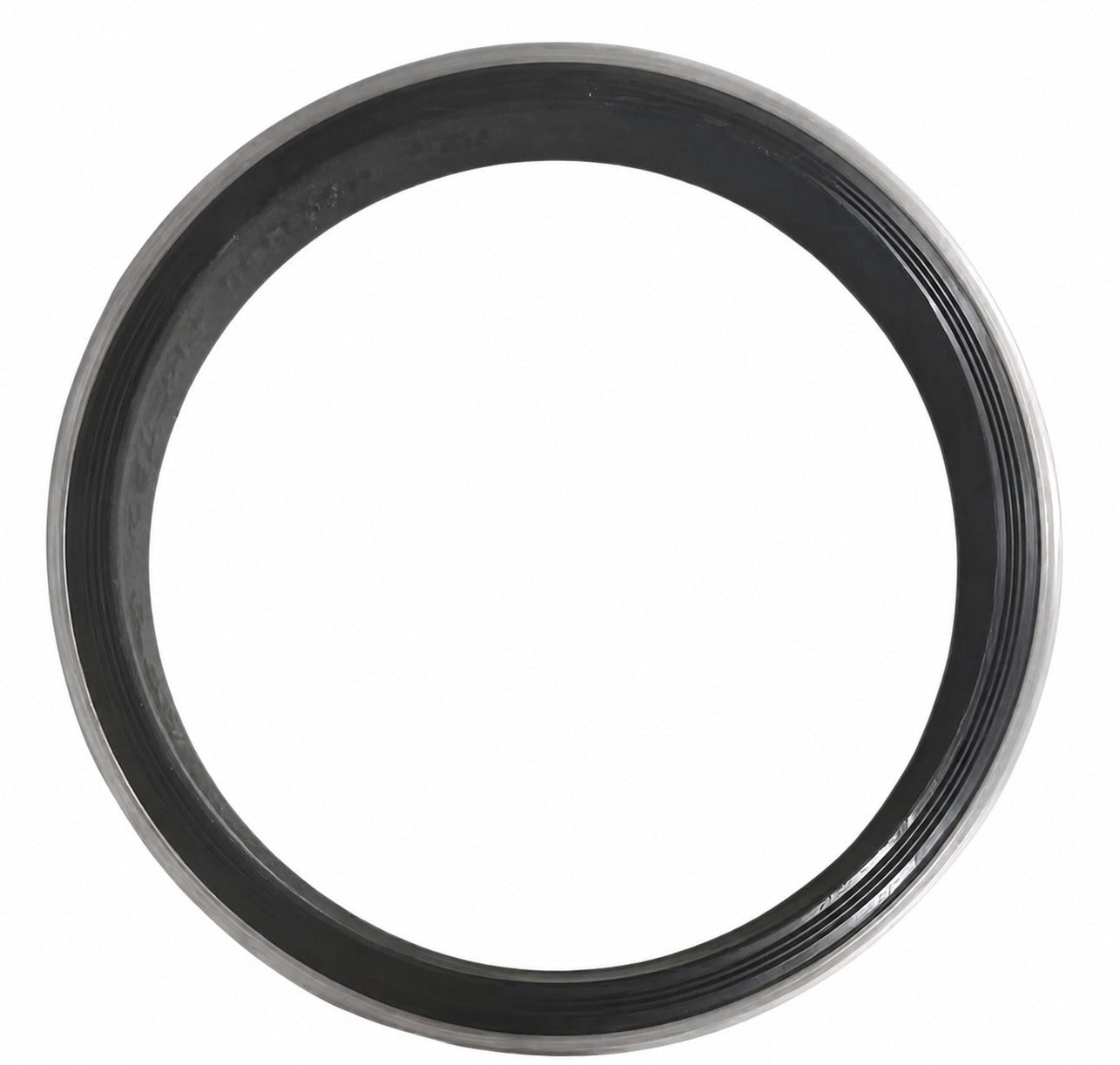

  • 3 inch FIG 1505 hammer union seal with stainless steel anti-extrusion ring
1 3

Royal Way

3" FIG 1505 Hammer Union Seal | Brass or Stainless Steel Anti-Extrusion Ring

3" FIG 1505 Hammer Union Seal | Brass or Stainless Steel Anti-Extrusion Ring

$1.64 USD
$1.64 USD
Sale Sold out
Taxes included.
Material
Insert Type

3" FIG 1505 hammer union seal with brass or stainless-steel anti-extrusion ring for compatible high-pressure oilfield union applications. Available in 85 Shore A NBR and HNBR.

Anti-extrusion ring options

  • Brass: extrusion support for compatible general-service fluids and gases.
  • Stainless steel: commonly selected for corrosive liquid or gas environments where stainless steel is compatible and brass is not preferred.

Ordering

Price is shown per piece. MOQ varies by selected compound and ring material. Volume pricing is available; larger quantities require a quote.

Important: Confirm FIG 1505, 3-inch nominal size, seal profile, compound, hardness, ring material and equipment groove before ordering.

Material Options

Available materials include Buna-N / NBR, HSN / HNBR, and FKM / Viton®-type compounds. Standard hardness options include 80 Shore A, 85 Shore A, and 90 Shore A depending on size and application.

Selected hammer union seals are available with brass or stainless steel anti-extrusion rings. Material, hardness, and insert type should be selected according to pressure rating, temperature, fluid media, and service conditions.

Applications

Used for hammer union sealing in oilfield flowline, pressure pumping, frac, cementing, well service, and high-pressure fluid handling applications.

Common FIG applications include FIG 602, FIG 1002, FIG 1502, FIG 1505, and FIG 206 depending on size and equipment configuration.

Bulk Order & Custom Quote

Standard sizes can be ordered online. For bulk quantities, distributor supply, private labeling, custom packaging, special compounds, or non-standard sizes, please request a quote with size, FIG type, material, hardness, insert type, and quantity.

Compatibility Notice

FIG numbers, brand names, and equipment references are used for compatibility reference only. Please confirm seal groove dimensions, FIG type, material, hardness, and service conditions before ordering. This product is an aftermarket replacement seal and is not an OEM product.
