2" FIG 602 / 1002 / 1502 Hammer Union Lip Seal | NBR, HNBR, FKM & PTFE

2" FIG 602 / 1002 / 1502 Hammer Union Lip Seal | NBR, HNBR, FKM & PTFE

$0.44 USD
$0.44 USD
Sale Sold out
Taxes included.
Material
Backup Material
Hardness

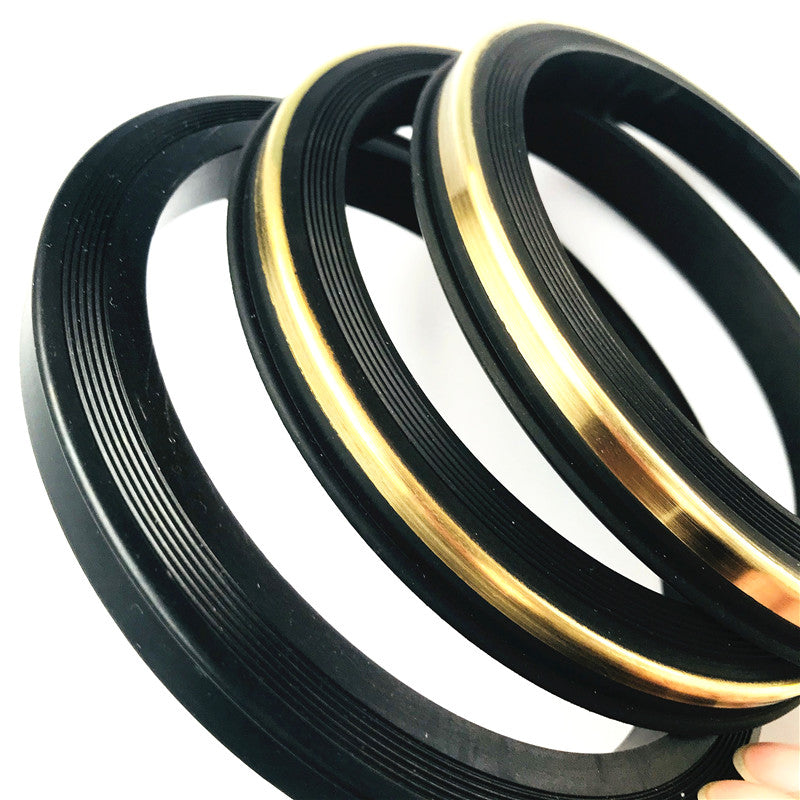

2" Hammer Union Lip Seal for compatible FIG 602, FIG 1002 and FIG 1502 oilfield flowline equipment. Available in NBR, HNBR, FKM and PTFE, with plain elastomer, brass backup or stainless-steel backup construction.

The replaceable lip profile provides the primary seal inside the union and helps protect the secondary metal-to-metal sealing surfaces.

Construction options

  • Plain elastomer: available in 80, 85 and 90 Shore A.
  • Brass or stainless-steel anti-extrusion ring: available in 85 and 90 Shore A for added extrusion support.
  • PTFE: available where the equipment specification calls for a rigid, low-friction sealing material.

Material selection

  • NBR (Buna-N): general oilfield service with petroleum oils and compatible water-based fluids.
  • HNBR: improved heat, wear and sour-service capability when compatible with the media.
  • FKM: higher-temperature service and broader resistance to compatible fuels and chemicals.

Ordering

Price is shown per piece. MOQ varies by selected material and construction. Volume pricing is available; larger quantities require a quote.

Important: Confirm nominal size, seal profile, compound, hardness, backup-ring material and equipment groove before ordering. The pressure rating is determined by the complete union assembly and service conditions.

Material Options

Available materials include Buna-N / NBR, HSN / HNBR, and FKM / Viton®-type compounds. Standard hardness options include 80 Shore A, 85 Shore A, and 90 Shore A depending on size and application.

Selected hammer union seals are available with brass or stainless steel anti-extrusion rings. Material, hardness, and insert type should be selected according to pressure rating, temperature, fluid media, and service conditions.

Applications

Used for hammer union sealing in oilfield flowline, pressure pumping, frac, cementing, well service, and high-pressure fluid handling applications.

Common FIG applications include FIG 602, FIG 1002, FIG 1502, FIG 1505, and FIG 206 depending on size and equipment configuration.

Bulk Order & Custom Quote

Standard sizes can be ordered online. For bulk quantities, distributor supply, private labeling, custom packaging, special compounds, or non-standard sizes, please request a quote with size, FIG type, material, hardness, insert type, and quantity.

Compatibility Notice

FIG numbers, brand names, and equipment references are used for compatibility reference only. Please confirm seal groove dimensions, FIG type, material, hardness, and service conditions before ordering. This product is an aftermarket replacement seal and is not an OEM product.

View full details

Need Bulk Hammer Union Seals?

For distributor orders, repair shop supply, or large quantity projects, please send us the size, FIG type, material, hardness, insert type and quantity.

We can quote bulk pricing, carton packaging, private labeling and special material requirements.
