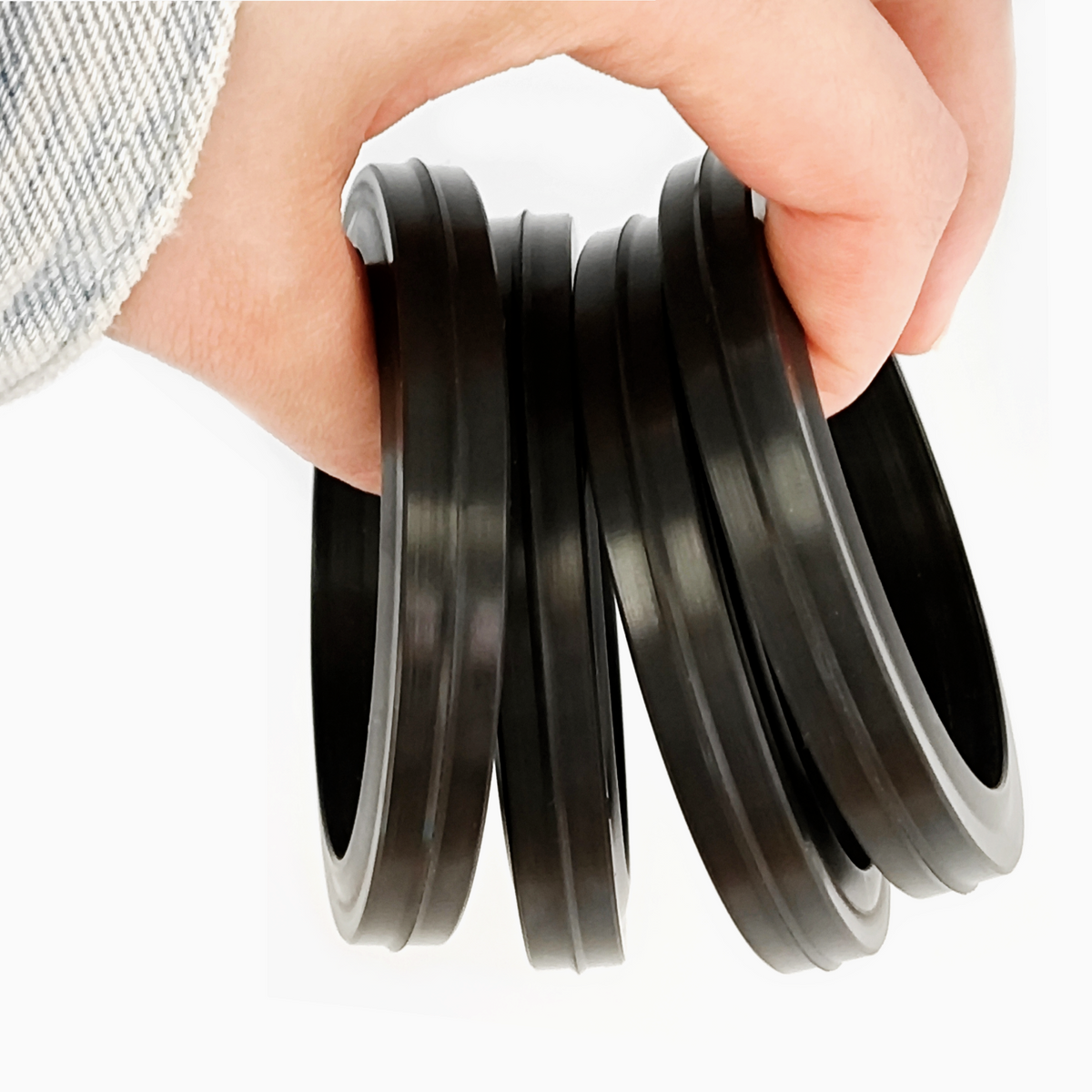

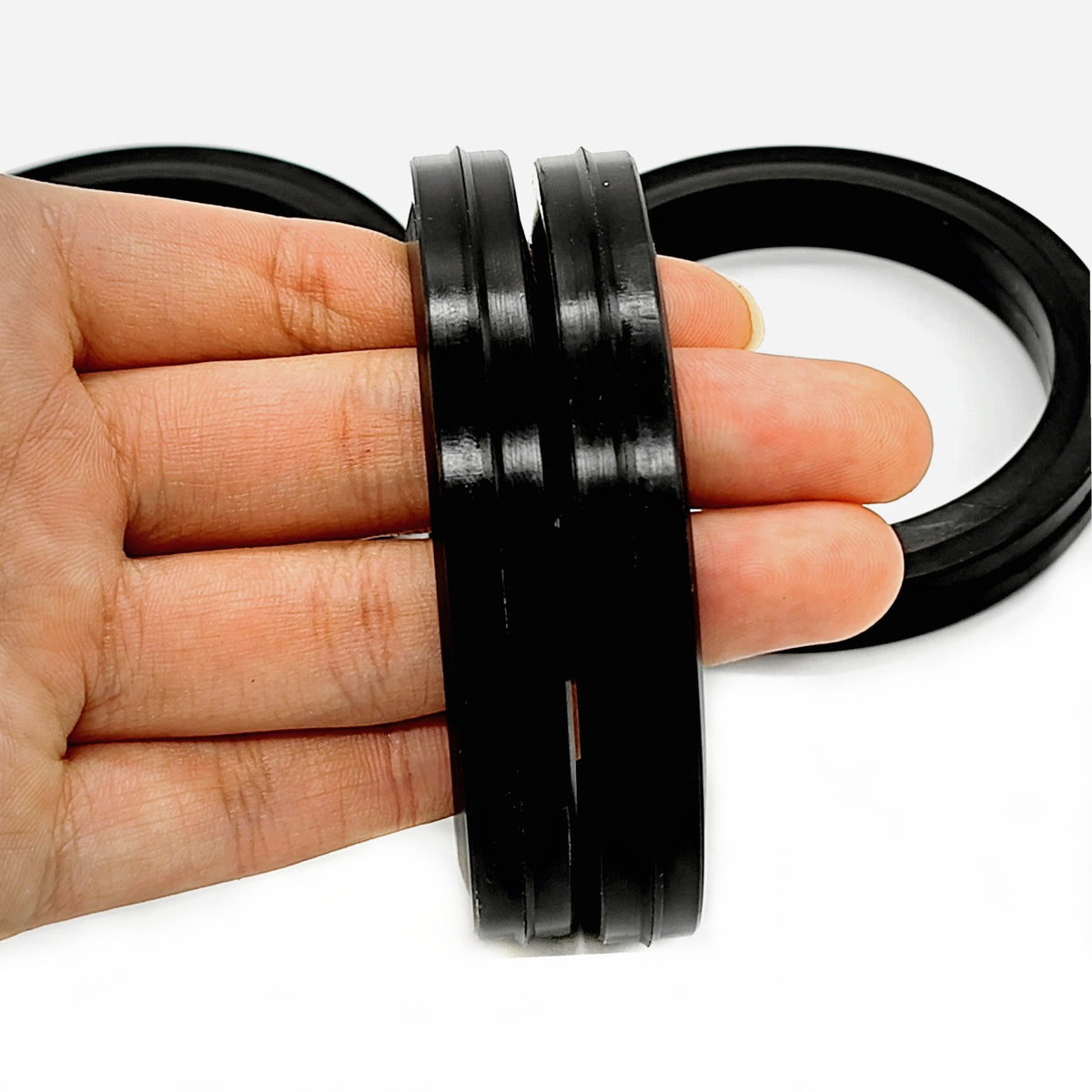

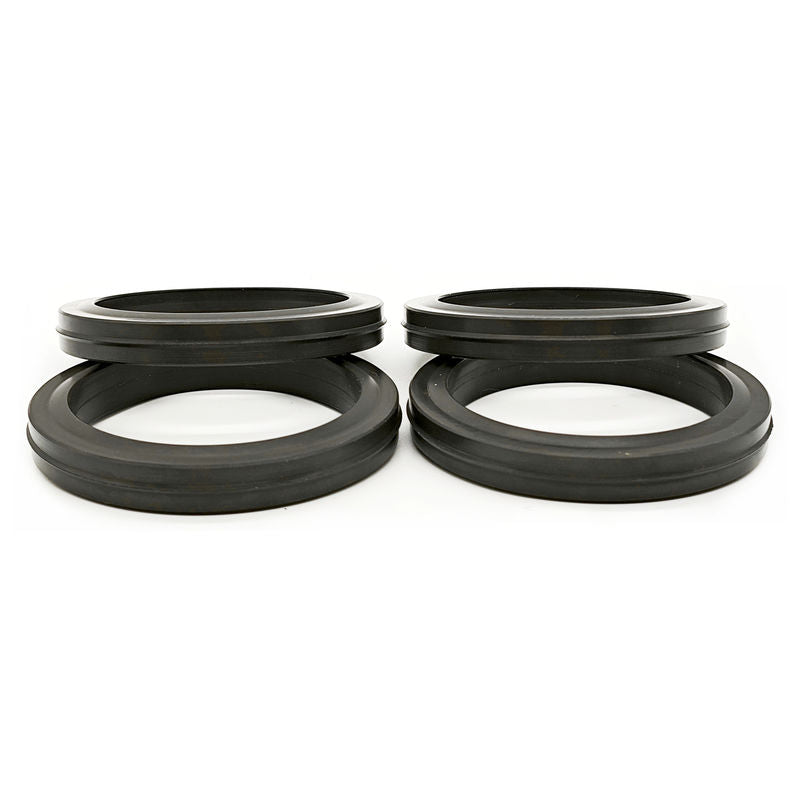

2 in Figure 607 Guiberson-Style Vee-Lip Hammer Union Seal — Profile Configuration
2 in Figure 607 Guiberson-Style Vee-Lip Hammer Union Seal — Profile ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information

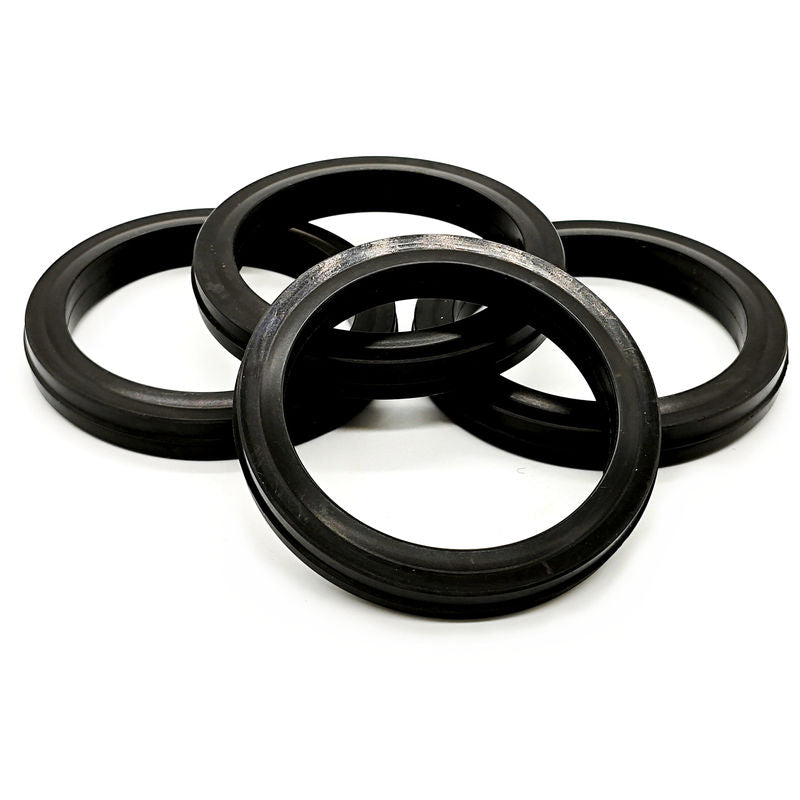

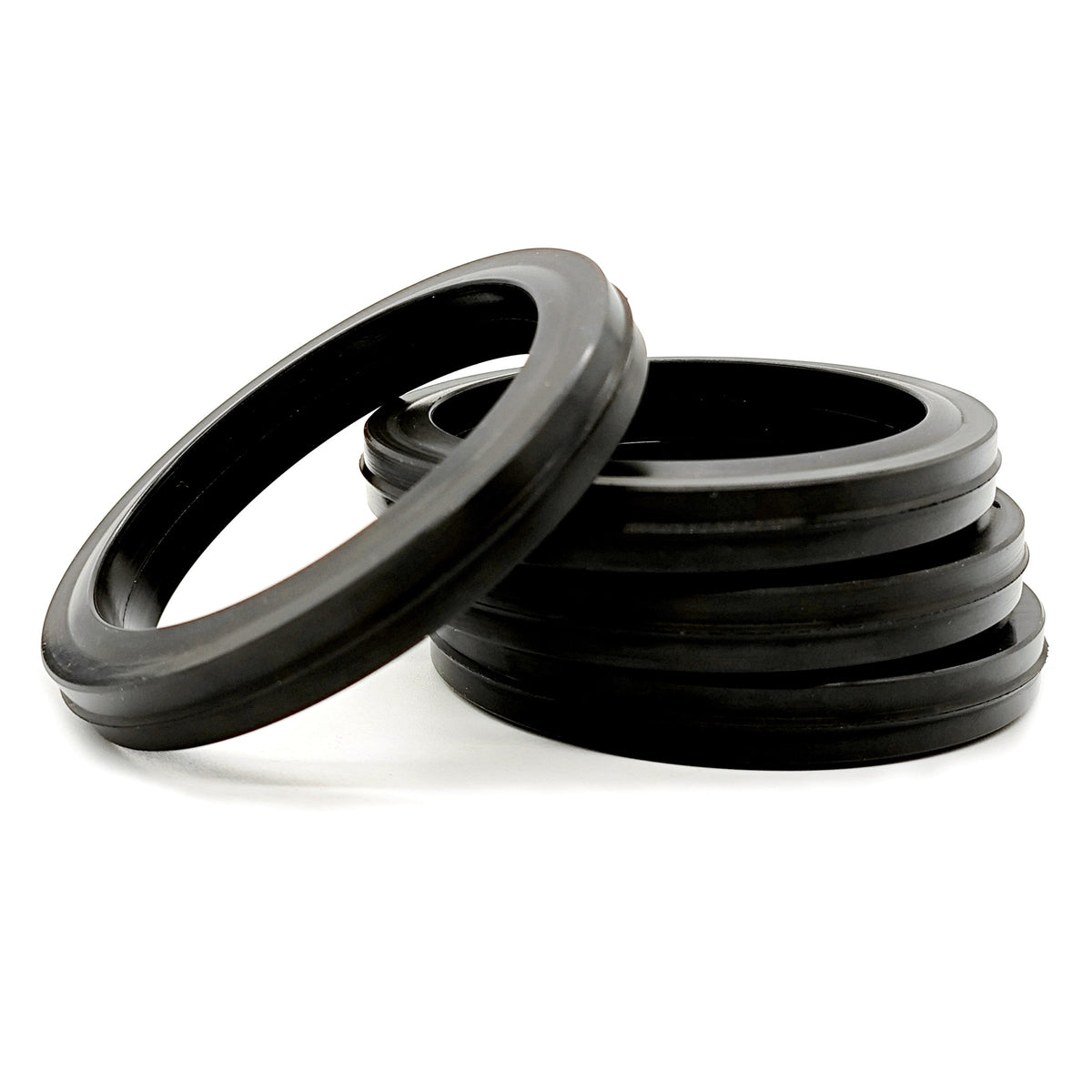

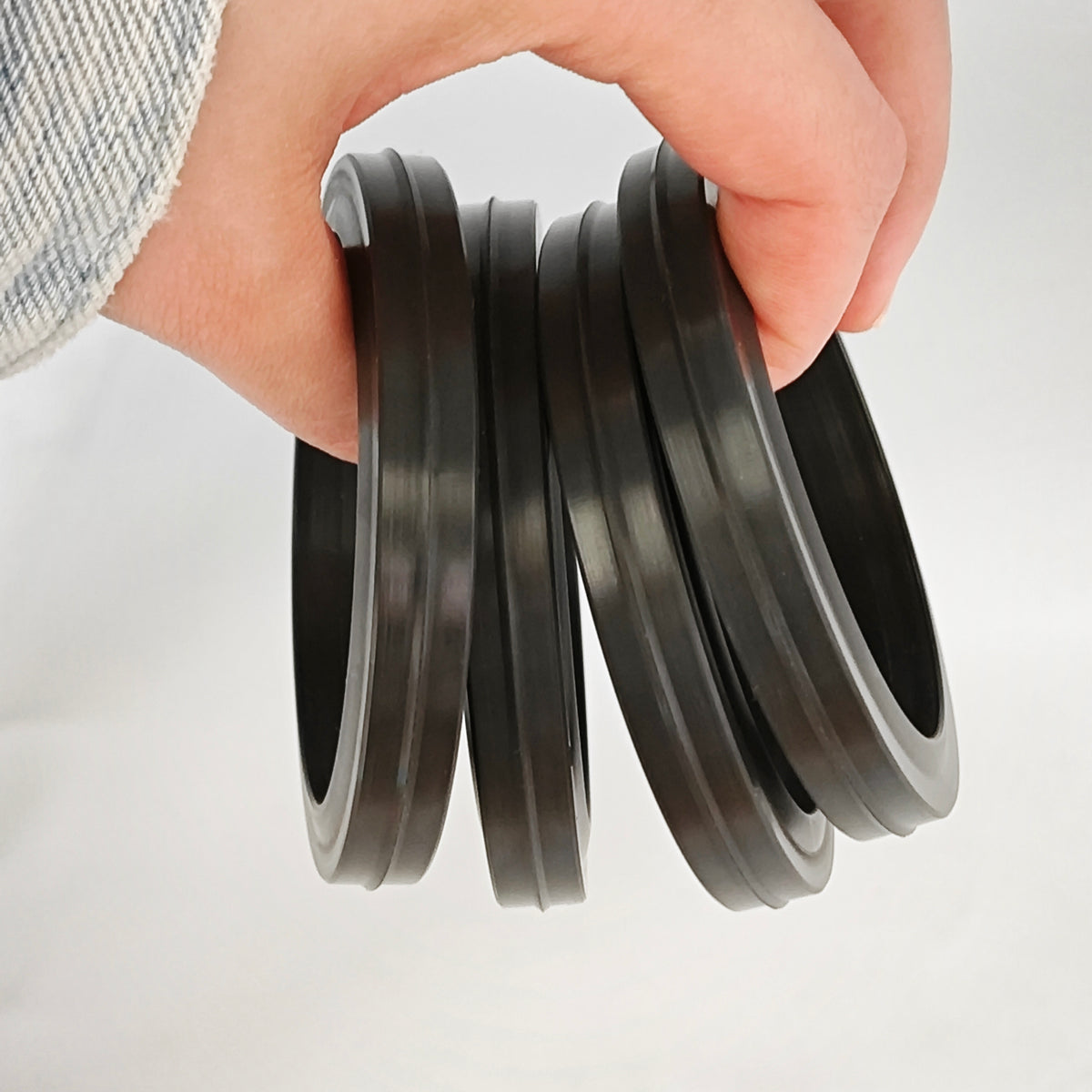

2 in Figure 607 Guiberson-Style Vee-Lip Hammer Union Seal
Royal Way manufactures a 2 in Figure 607 vee-lip hammer union seal for buyer-identified Guiberson-style union configurations. Quotations are prepared from the current union reference, controlled seal drawing, complete dimensions or an existing sample.
Information for quotation
- Union manufacturer, figure, nominal size and original seal reference
- Male and female union dimensions, seal pocket and retaining geometry
- Seal outside diameter, inside diameter, height, vee-lip profile and orientation
- Whether an anti-extrusion or metal-backed construction is required by the assembly
- Fluid, temperature, pressure class, pressure direction and operating cycle
- Required quantity, tolerances, inspection and documentation requirements
The Figure 607 and Guiberson-style references identify the buyer's equipment only and do not establish interchangeability, fit or pressure rating. Royal Way is not affiliated with the referenced equipment manufacturer. Final geometry, compound and construction are confirmed after the complete union configuration is reviewed.
Request a quote for 2 in Figure 607 Guiberson-Style Vee-Lip Hammer Union Seal
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
