18001200 Pump Membrane — Drawing/Service Configuration
18001200 Pump Membrane — Drawing/Service ConfigurationRequest a Quote · Drawing and sample review
Specifications & Product Information

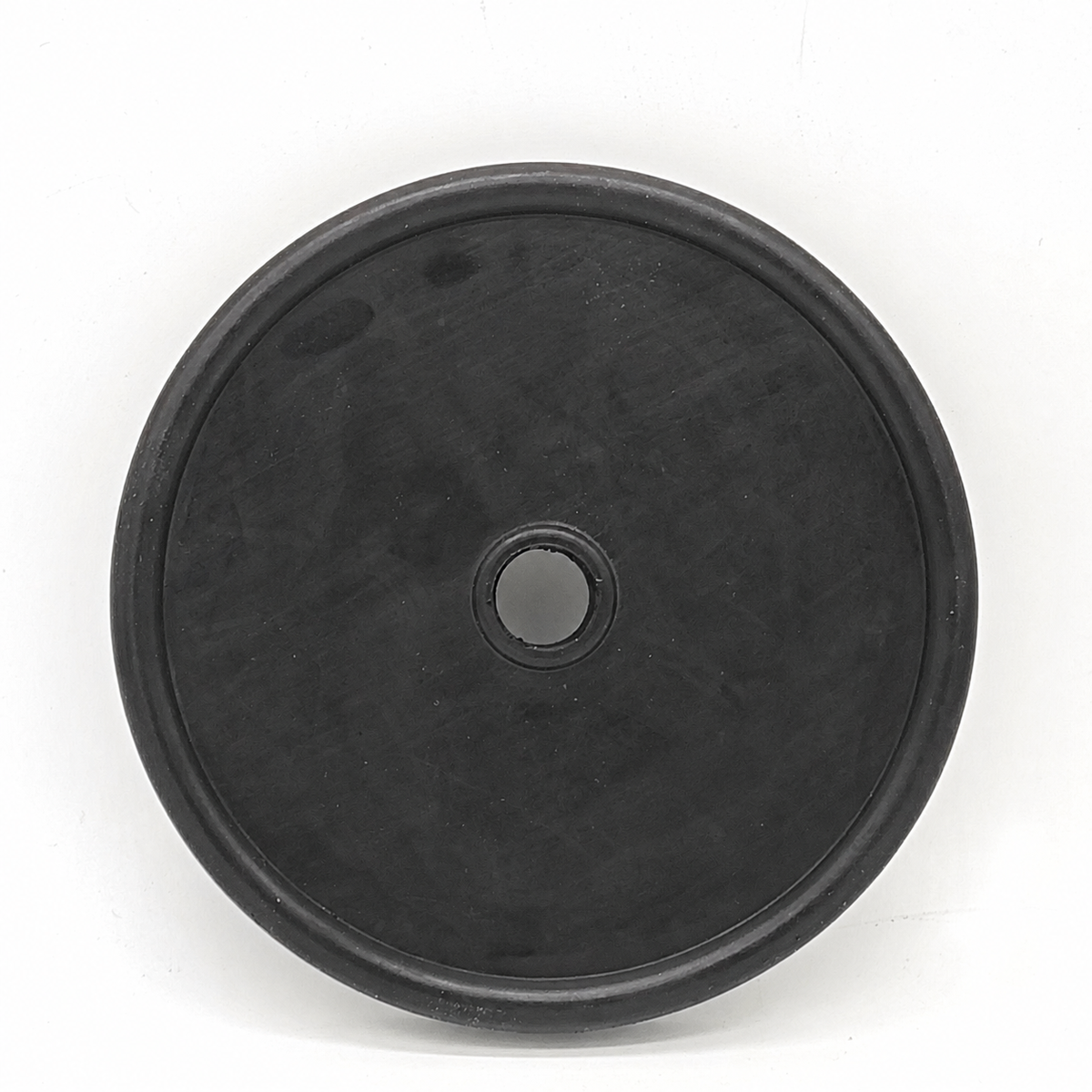

18001200 Pump Membrane
Royal Way reviews the 18001200 pump membrane configuration from the supplied part reference, drawing or sample for pump repair and replacement enquiries.
Configuration for quotation
- Part reference 18001200 with pump make/model and installed interface
- Membrane geometry, bead/retainer features and mating hardware
- Drawing, sample, inspection requirements or original part reference
- Fluid, pressure, stroke, cycling and operating conditions
- Required compound, hardness, reinforcement, tolerances and quantity when specified
The part reference does not establish interchangeability, a fixed compound, hardness, temperature range, pressure rating or guaranteed fit. Final configuration and suitability are confirmed after the complete pump and application data are reviewed.
Selection information
| Selection item | Details to provide |
|---|---|

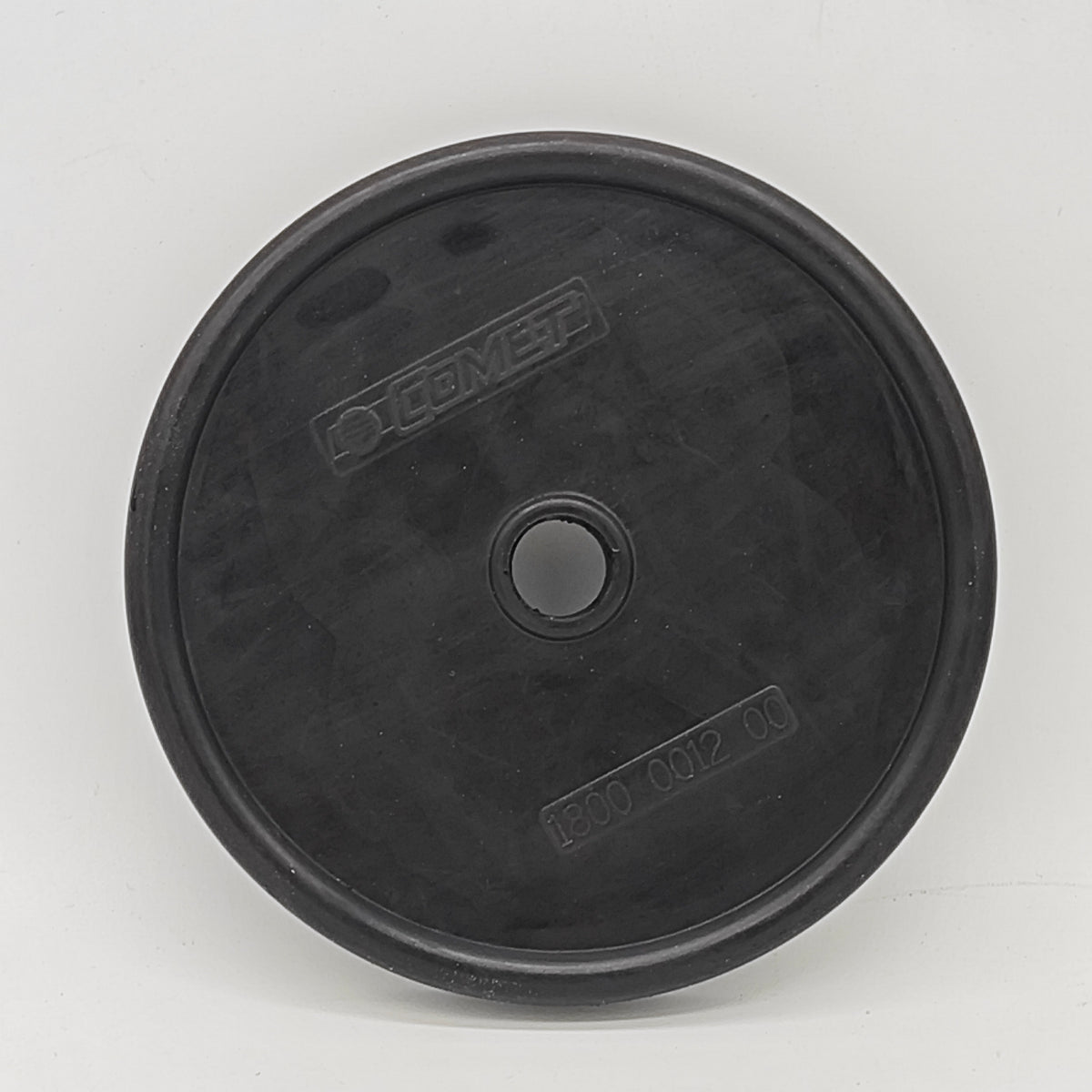

| Model marking | Confirm the exact model marking or buyer-used part reference. |
| Pump or equipment record | Provide the pump maker, equipment model, nameplate or installed-part reference. |
| Drawing, sample and dimensions | Share a drawing, CAD file, revision, removed sample, envelope and interface measurements. |
| Material and service | State the service medium and available temperature, pressure, movement, compound or hardness requirements. |
| Inspection and documents | List inspection, traceability, testing or documentation requirements. |
| Quantity and delivery | State the required quantity, destination and requested timing for quotation. |
Request a Quote
Request an engineering quotation
Send the product or equipment reference, drawing or sample, service conditions and quantity. Royal Way will review the details and ask for any other information needed for the quotation.
Use the RFQ form for the initial requirement. Drawings, photographs and sample details can also be emailed to sales@rwoiltool.com with the product name in the subject line.
Product and dimensions
Product type, equipment model, drawing or sample, plus the critical dimensions and construction details.
Material and service
Known material or hardness, medium, temperature, pressure, movement and observed failure.
Quantity and delivery
Trial or order quantity, packing or documentation needs, destination and requested timing.
